ATLAS LED - ATLAS LED Beacon magnetic flash light amber

Ref. 212560

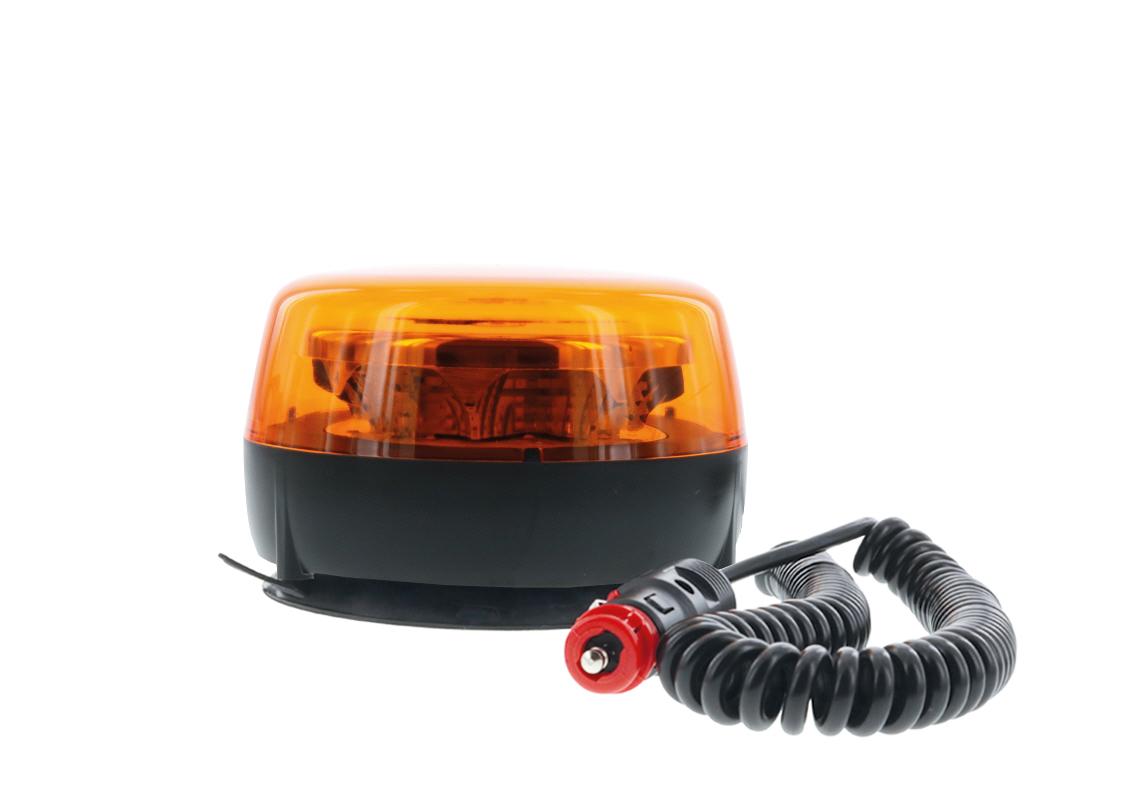

ATLAS LED Beacon magnetic flash light amber
ATLAS LED Beacon magnetic flash light amber
ATLAS LED Beacon magnetic flash light amber
ATLAS LED Beacon magnetic flash light amber
The ATLAS LED beacon meets the high requirements of the manufacturer’s specifications. Special attention has been paid to the thermal management of LEDs to ensure optimum service life and operation in the most extreme situations. Read more
  • Voltage : 9/32V
  • Source : LED
  • Consumption : 17W
  • Color : Amber / Orange
  • Fixation : Magnetic 1 suction pad with cigarette lighter
  • Flash Patterns : Double Flash
Not all products are available in all markets.

Need some advices ? Any questions ?  We call you back !

Brand Vignal
Product Type Complete lamp
Voltage 9/32V
Source LED
Consumption 17W
Color Amber / Orange
Fixation Magnetic 1 suction pad with cigarette lighter
Lens Material Polycarbonate

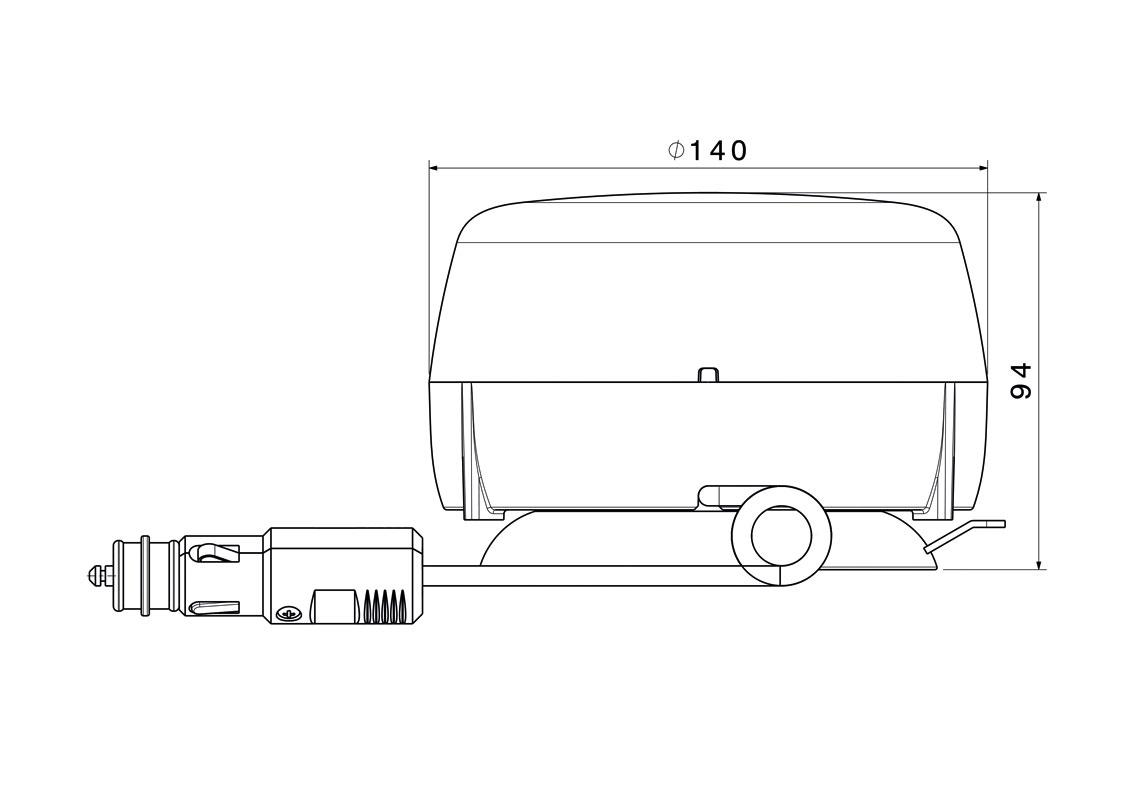

Diameter 140 mm
Height 94 mm
Weight 0,78 Kg
Flash Patterns Double Flash
IP protection IP69K
Polarity Protected against reverse voltage
Operation Temperatures -40°C to +80°C
EMC CISPR25 Class 5, ECE R10
ECE ECE R65
Industry Agriculture, Construction, Forestry, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab

The ATLAS LED beacon meets the high requirements of the manufacturer’s specifications.
Special attention has been paid to the thermal management of LEDs to ensure optimum service life and operation in the most extreme situations.
