Signalling
For more than 50 years, Vignal Group has specialized in signalling for commercial and industrial vehicles. Close to the needs of our customers, we design, manufacture and commercialize innovative lamps to be seen by road users. We are famous for our expertise as designer of LED or bulbs tail lights, position lamps and all types of cabin lights (indicators, end-outline marker lamps). Our care in the design and quality of products has attracted major commercial vehicle manufacturers in the world. Learn more
Retro-reflective marking kit

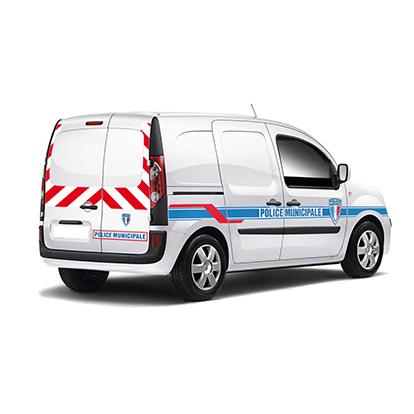

Police Retro-reflective marking kit

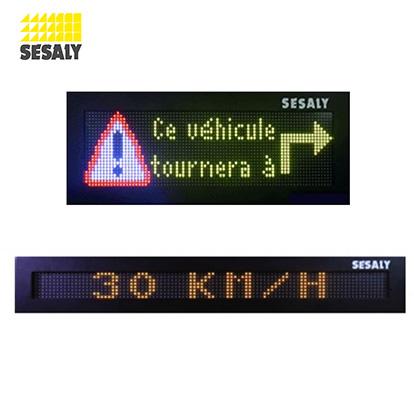

SESA SIGN & DISPLAY
PLATES
LPL18
SIDL
SESA Airglow
SESA Solar
LCR19
LC12 LED
LC11 LED
LC10 LED
LC9 LED
BL15 LED
CTL15 LED
CTL14 LED
LC8
LC8T
LC9
LC5
LC15
LC5T
LC7
LC7T
LC6
LC4

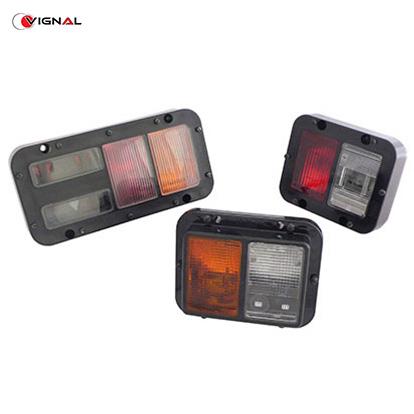

MILI
SLIM
FRR

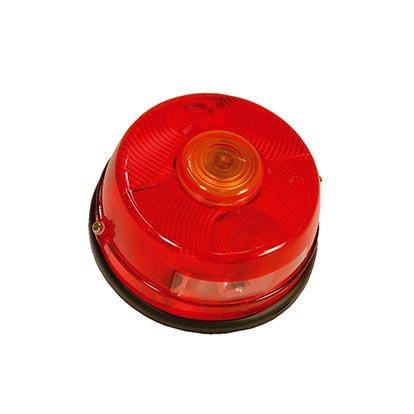

C166
2711
725
2704
BBS5
FCP
2751
BX868
EPP96
EPP98
FTL
EPP96 LED
C105
C199
SRD08 LED
SRD07 LED
ICDL15
ICDL10
F930
DISC
F055
ICDL07
FE85 D
ICDL94
FE87 D
FE81 D
F250
FE04 LED
F280
SMD04 LED
F726
SMD98 LED
F720
F730
1350
1300
308-7
EPL
1310
1200
SMD00 LED
FE94/98
FE02
FPL93
FE87
FE95
FE85

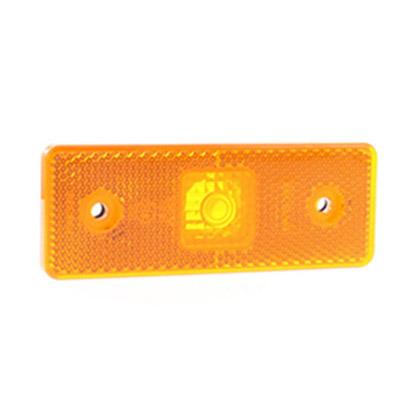

672
FA3 LED
DX
DXLC8
FE12 LED
FM91
FE88
DSR
FE81
R70

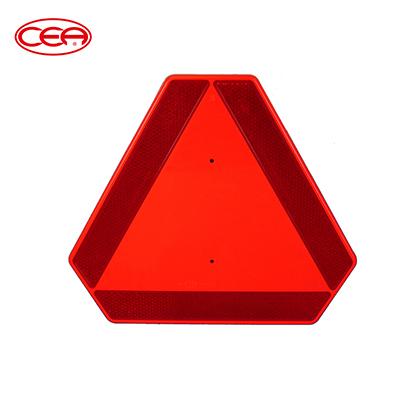

VC 69
CA
TRI
R104
FE08
BA
FLASHER UNIT
FE80
BD 95
FE07
FE09
Are you looking for high beams to equip your vehicles with specific functions?
Vignal Group offers a complete range of high beams with a range of functions:
- Front position lights, front clearance lights & front turn signals
- Side turn signal repeater lights, side lights, side marker & retro-reflector lights
- Multifunction rear lights, rear turn signal lights, rear position & turn signal lights, stop lights with rear position, stop lights with rear position & turn signal, fog lights with or without retroreflectors, reversing lights, reversing lights & fog lights, reversing lights with retroreflector, plate lights...
Some of our high beams are single function, others offer multiple functions. Some of our high beams are single-function, others offer multiple functions.
Are you looking for quality fires, designed & manufactured to last?
All the high beam lights for industrial vehicles proposed in the following pages are approved according to the European regulation (ECE) in force. They are all waterproof (IP 67) and compact thanks to the LEDs which compose them. We also offer a range of SAE approved lights.
Our range of high beam lights is designed & manufactured to operate with a supply voltage ranging from 9 to 32Vdc and also resist to temperatures ranging from -20° to + 70°C
Would you like to know the best practices for installing & cleaning high beams? Here are our tips!
- Always observe the approval marking on the lights to know the mounting direction.
- Always install the high beam on a flat surface.
- Apply a maximum torque of 1Nm for the installation of our high beam lights.
- To ensure proper breathing of the light, high beams equipped with a Gore membrane must be installed with a gap behind the membrane.
- To avoid water ingress by capillary action, all wiring must be absolutely waterproof. In order to ensure the watertightness (IP) of the main beam, the main beam must be mounted with a watertight connector, the connector/cable seal must be made with a heat-shrink sleeve, apply a tightening torque of less than 80N/cm.
- Always protect the cables from rubbing when passing through sheet metal surfaces.
- Always clean the lights using soapy water and a microfiber cloth. Never use a corrosive or scratchy cleaning product, nor gasoline or alcohol-based products.
