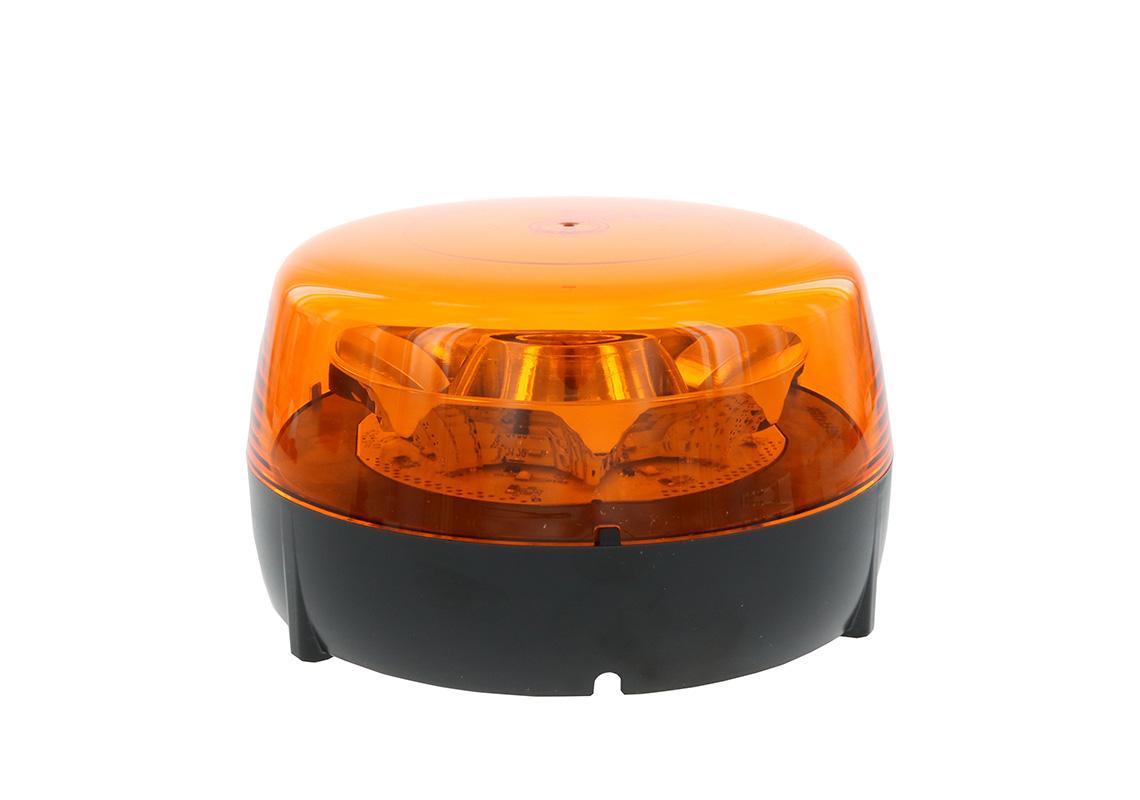

ATLAS LED - ATLAS Plane Rotating amber LED beacon - CL3 - no cover

Name: ATLAS Plane Rotating amber LED beacon - CL3 - no cover
Brand: CEA
SKU: 212100
Availability: InStock

Ref. 212100

Not all products are available in all markets.

Need some advices ? Any questions ? We call you back !

Name *

Email *

Telephone *

Zip code *

Country *

* Mandatory fields

All data provided to us is only used by our services, as part of your call request and any commercial relationship that may result (learn more).

Technical characteristics Similar products

Brand		CEA, VIGNAL
Product Type		Complete lamp
Voltage		9/32V
Source		LED
Consumption		11W, 8,5W at 28,5V
Color		Amber / Orange, Blue
Connector		Naked cable extremity

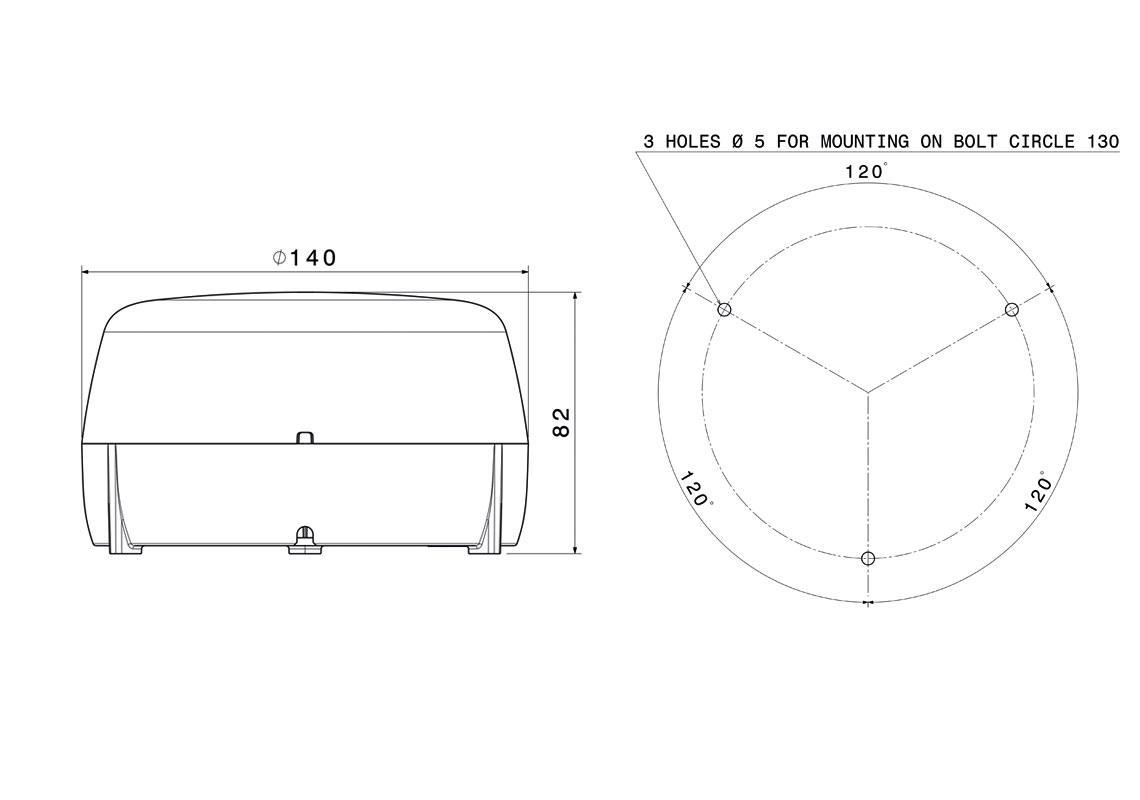

Fixation		3 vis on Ø 130mm (DIN 14620)
Lens Material		Polycarbonate
Diameter		140 mm
Height		82 mm
Weight		0,55 Kg
Flash Patterns		Rotative
IP protection		IP69K
Polarity		Protected against reverse voltage
Operation Temperatures		-40°C to +80°C
Vibration Resistance		ISO16750-3
Lifetime		> 50 000 hours
EMC		CISPR25 Class 3, ECE R10
ECE		ECE R65 (TA1 or TB1)
SAE		SAE Class 2
Industry		Agriculture, Construction, Forestry, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab
