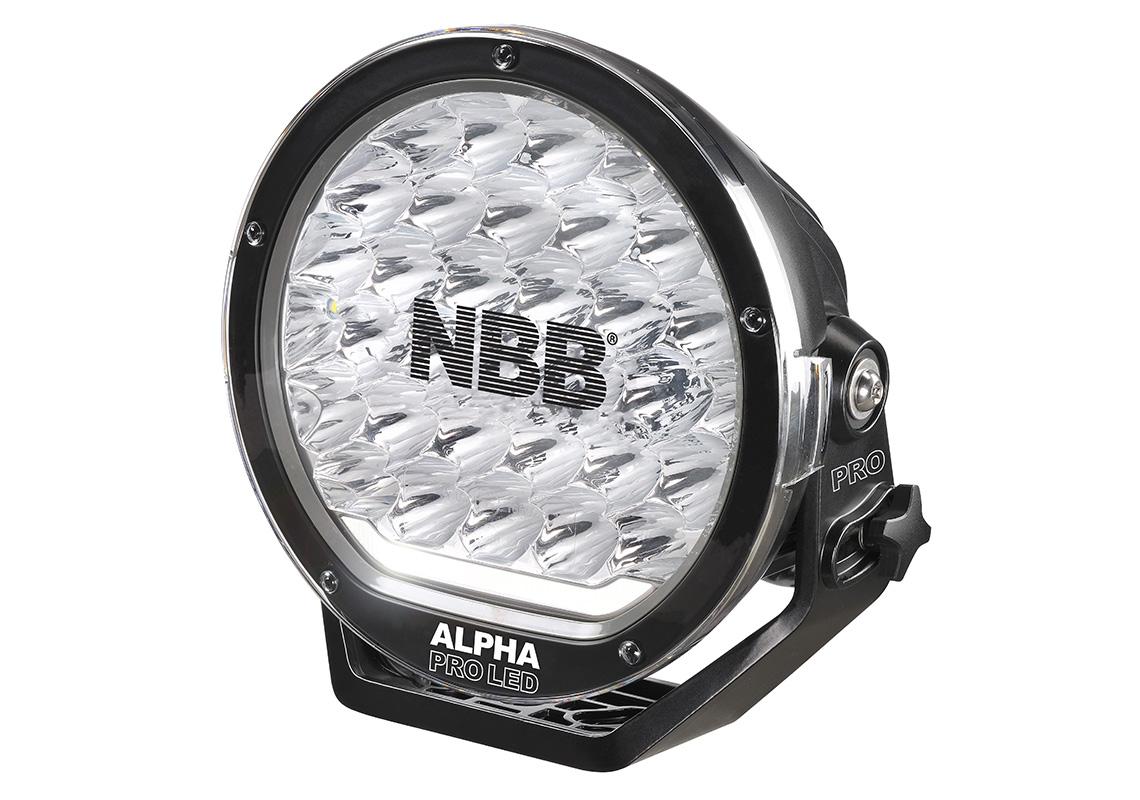

ALPHA 225 LED - Auxiliary light LED 10/33V

Ref. ALPHA225LEDRANGE Show/hide other part numbers

  • Ref. D14673
Auxiliary light LED 10/33V
Auxiliary light LED 10/33V
Built in 3 pin deutsch connector provided Read more
  • Voltage : 10/33V
  • Source : LED
  • Amperage : 6,25 AMP at 24VDC for driving beam/ 0,1 AMP at 24 VDC for pilot light
  • Consumption : 150W for driving beam LED / 2,3W for pilot light LED

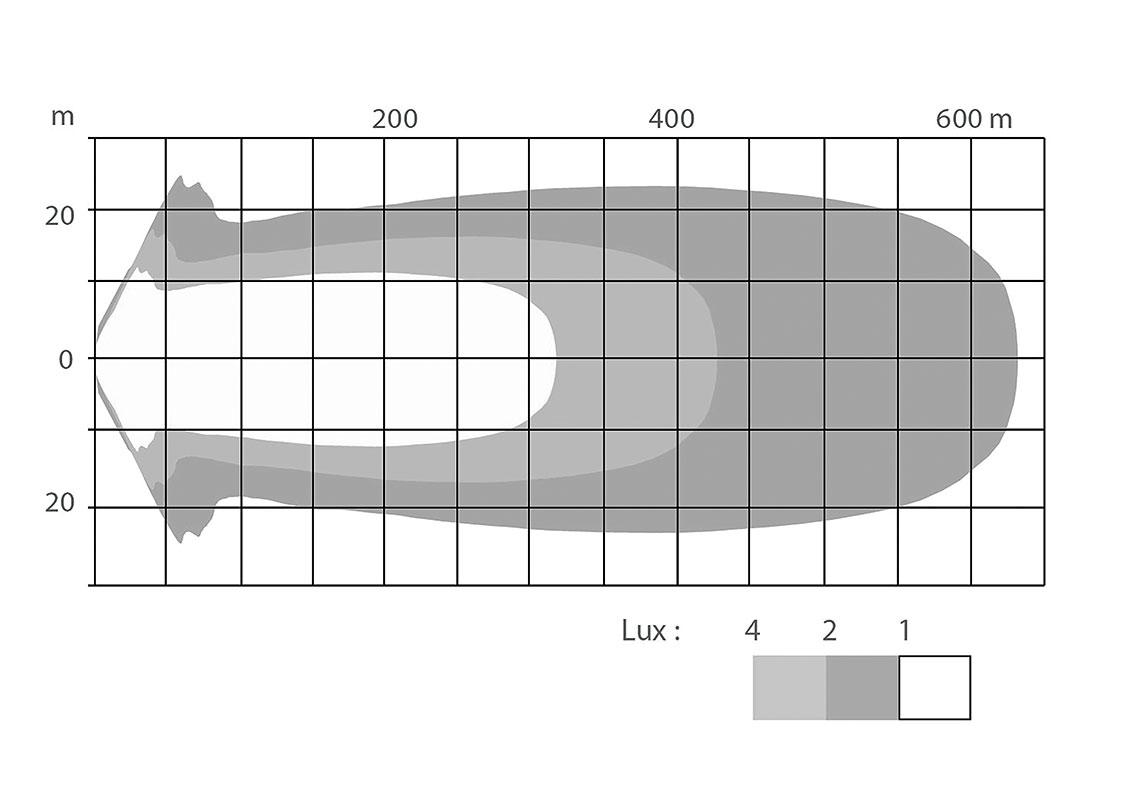

  • Operational Lumen : 8500 Lumen
  • Connector : DT 3 pin, DT 3 pin harness included
Not all products are available in all markets.

Need some advices ? Any questions ?  We call you back !

All data provided to us is only used by our services, as part of your call request and any commercial relationship that may result (learn more).

Brand NBB
Voltage 10/33V
Source LED
Amperage 6,25 AMP at 24VDC for driving beam/ 0,1 AMP at 24 VDC for pilot light
Consumption 150W for driving beam LED / 2,3W for pilot light LED
Operational Lumen 8500 Lumen
Color Temperature 5700 K
Connector DT 3 pin, DT 3 pin harness included
Mounting Pedestal, suspended, no tool adjustment, M10 stainless steel fasteners included
Shape Round

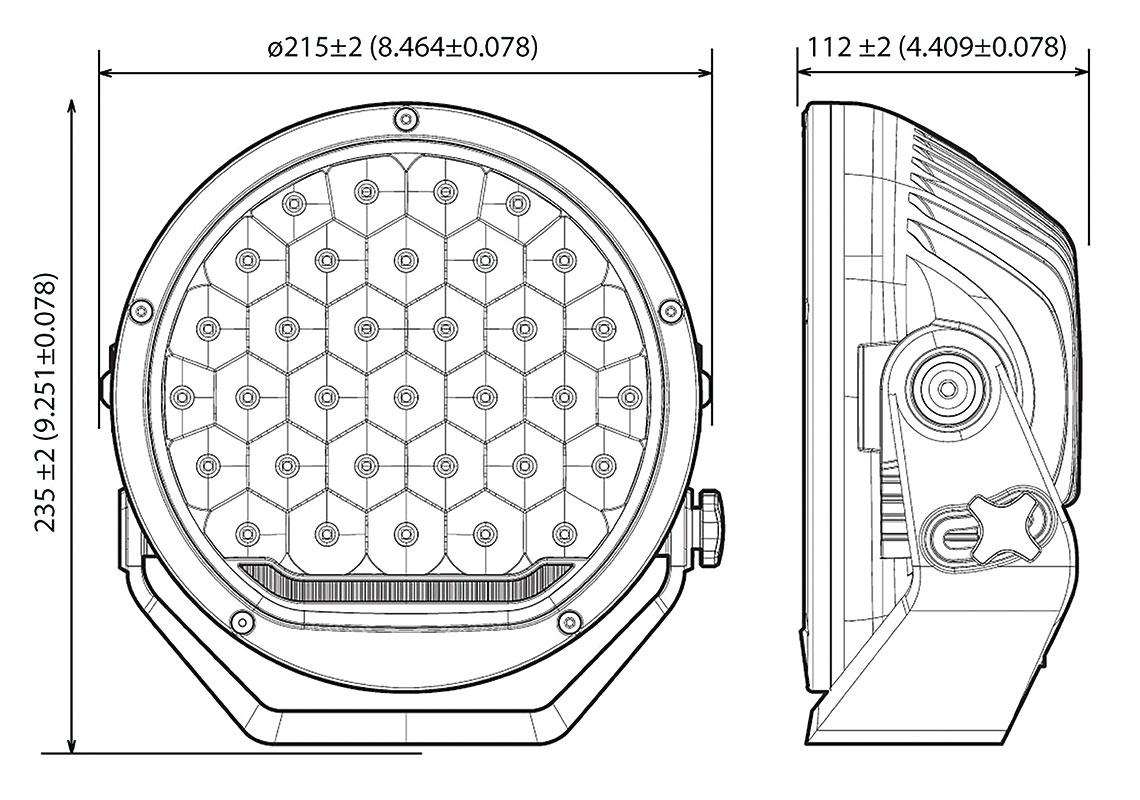

Length 215 mm
Depth 112 mm
Height 235 mm
Weight 2,8 Kg
IP protection IP67
Polarity Protected against reverse voltage
Operation Temperatures -40°C to +85°C
Salt Spray Test ISO 9227 - 240h
Industry Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab

Built in 3 pin deutsch connector provided
