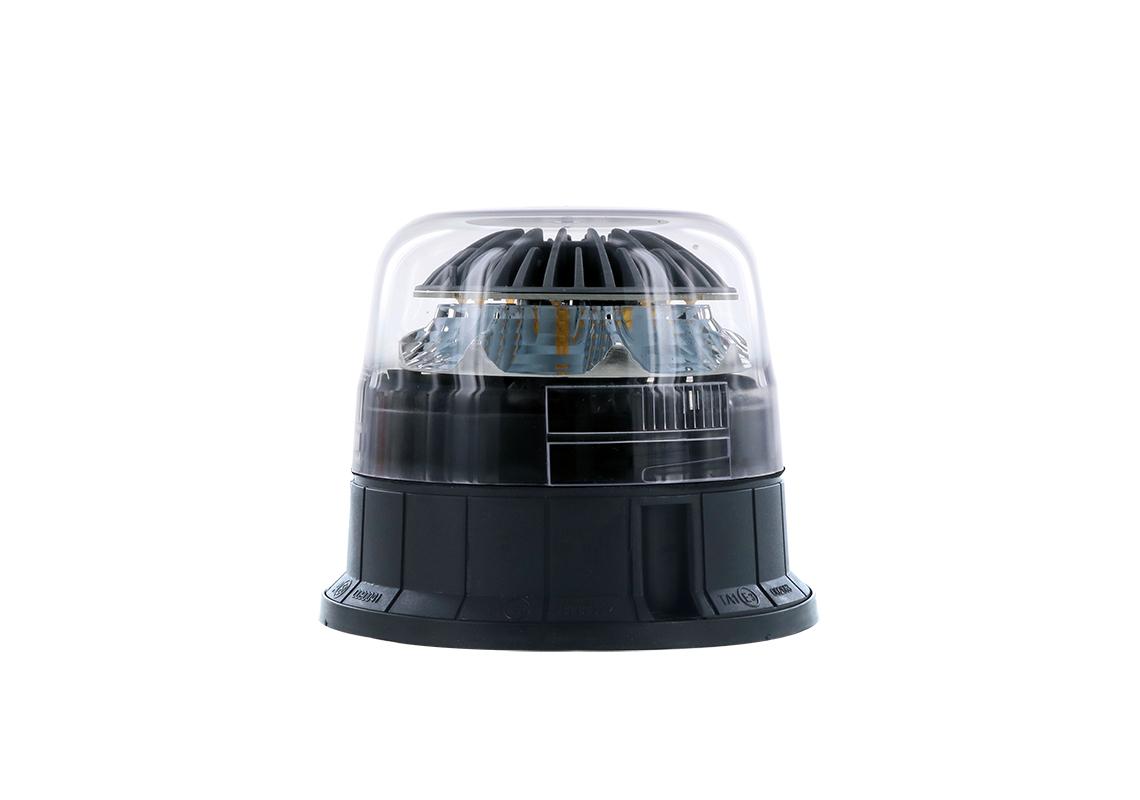

GALAXY LED - LED Beacon to be screwed, flash light crystal lens, amber LED

Ref. D14752 Show/hide other part numbers

  • Ref. 21.49.L35.11V
LED Beacon to be screwed, flash light crystal lens, amber LED
LED Beacon to be screwed, flash light crystal lens, amber LED
LED Beacon to be screwed, flash light crystal lens, amber LED
LED Beacon to be screwed, flash light crystal lens, amber LED
LED Beacon to be screwed flash Read more
  • Voltage : 10 - 30V
  • Source : LED
  • Consumption : 9W
  • Color : Crystal lens, Amber LED

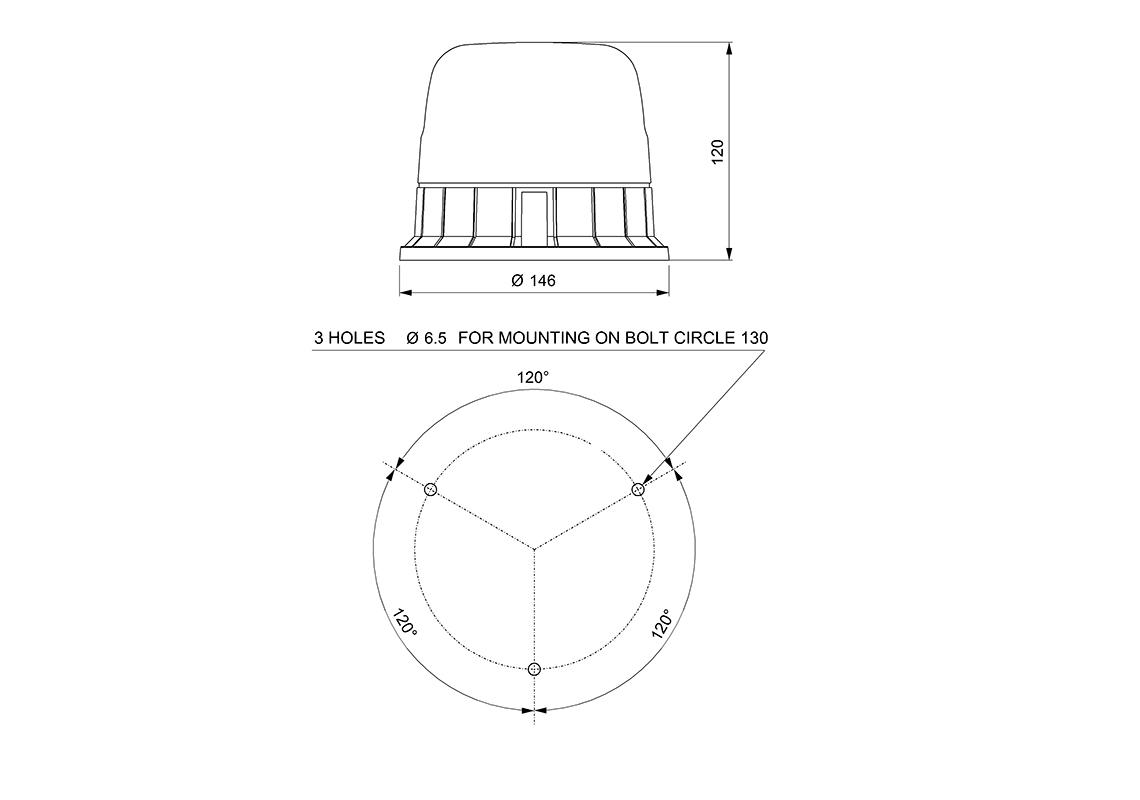

  • Fixation : 3 screws 3.5 x 15.9 mm
  • Flash Patterns : Simple Flash
  • Flash per Minute : 15
Not all products are available in all markets.

Need some advices ? Any questions ?  We call you back !

Brand CEA
Product Type Complete lamp
Voltage 10 - 30V
Source LED
Consumption 9W
Color Crystal lens, Amber LED
Connector ISO DIN 14620B
Fixation 3 screws 3.5 x 15.9 mm
Lens Material Polycarbonate
Housing Material Compound thermoplastic
Diameter 146 mm
Height 120 mm
Weight 0,43 Kg
Flash Patterns Simple Flash
Flash per Minute 15
Operation Temperatures -30°C to +50°C
EMC ECE R10
ECE ECE R65
SAE SAE J85 Claas I
Industry Agriculture, Construction, Forestry, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab
