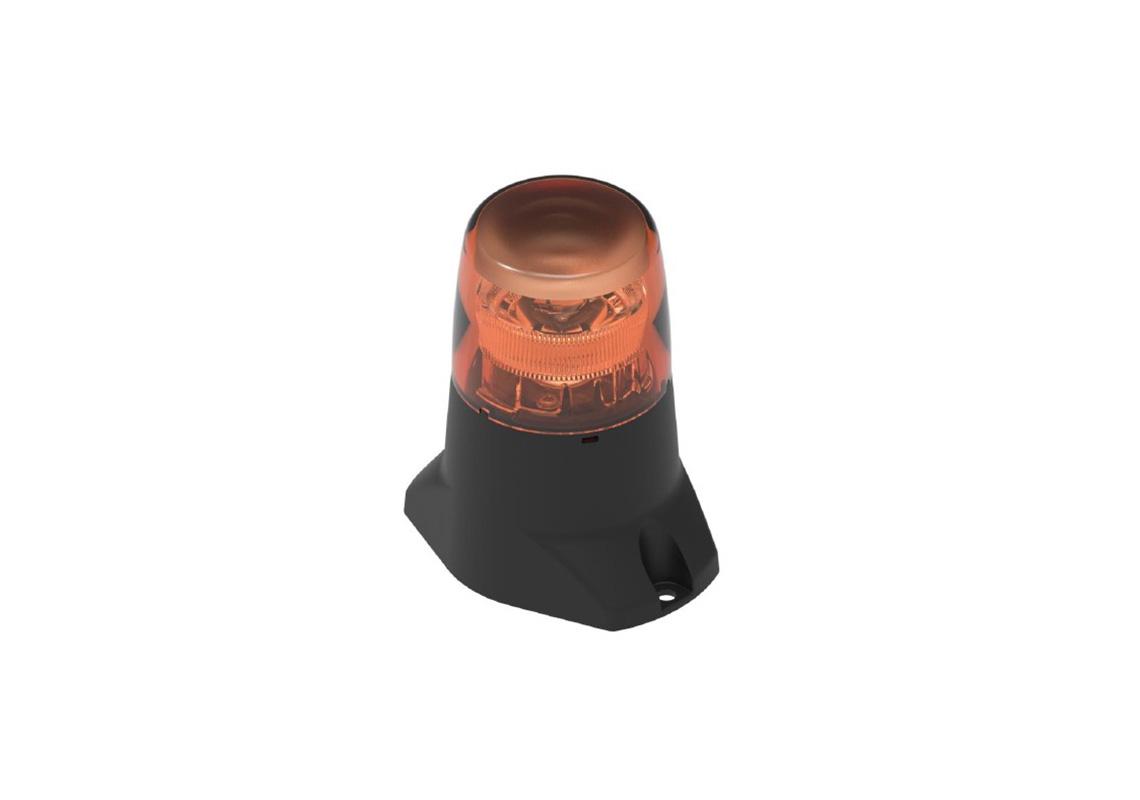

PUCK LED - New PUCK LED Beacon, to be screwed, amber, light DOUBLE FLASH
Ref. 223010 Show/hide other part numbers
- Ref. D16250
Beacon LED, to be screwed, amber
Read more
- Voltage : 10 - 80V
- Color : Amber / Orange
- Flash Patterns : Double Flash
Not all products are available in all markets.
Technical characteristics
| Brand | CEA, VIGNAL | |
|---|---|---|
| Voltage | 10 - 80V | |
| Consumption | 1,5W at 12V ; 3,6W at 24V ; 12W at 80V | |
| Color | Amber / Orange | |
| Approval | ECE R10-06, SAE Class 3 and UL approved | |
| Termination 1 | Naked cable extremity | |
| Fixation | 2 holes for screws of 5mm diameter | |
| Material | Polycarbonate | |
| Flash Patterns | Double Flash | |
| IP protection | IP69K | |
| Operation Temperatures | -40°C to +85°C | |
| Industry | Handling and Forklifts |
