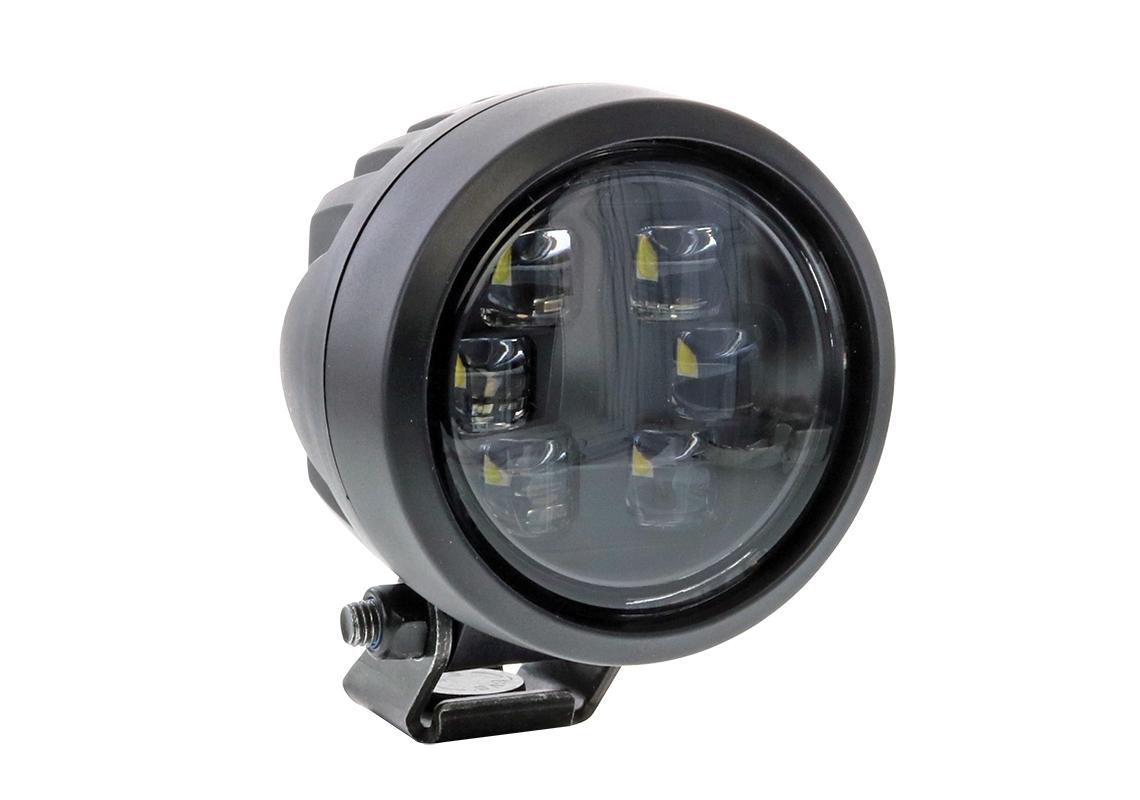

NO GLARE LED - NO GLARE LED work light 1500 Lumen
Ref. 755-0066 Show/hide other part numbers
- Ref. RL 1500 LED NO GLARE
Our No Glare optical modules cancel the dazzling effect without affecting the lighting coverage of the standard product, with a dedicated system which drives the light only where you need it, increasing safety and comfort for other drivers and workers...
Read more
- Voltage : 12/24 V
- Operational Lumen : 1500 Lumen
- Light pattern : NO GLARE
- Connector : DT 2 pin
- Load Dump : 36V CONTINUOUS / ISO 7637-2 Pulse 5a
- EMC : ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5
Not all products are available in all markets.
Technical characteristics
| Brand | ABL |
|---|---|
| Product Type | Work light |
| Voltage | 12/24 V |
| Source | LED |
| Consumption | 20W |
| Operational Lumen | 1500 Lumen |
| Color Temperature | 6000 K for crystal version |
| Light pattern | NO GLARE |
| Color | Crystal |
| Connector | DT 2 pin |
| Mounting | Pedestal |
| Lens Material | Hardened glass |
| Housing Material | Aluminium |
| Shape | Round |
| Depth | 77 mm |
| Diameter | 91 mm |
| Height | 124 mm |
| Weight | 0,45 Kg |
| IP protection | IP68 - IP69K |
| Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant |
| Operation Temperatures | -40°C to +85°C |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a |
| Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz |
| Shock resistance | 60G |
| Lifetime | 30 000 operating hours |
| EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 |
| Industry | Agriculture, Construction, Handling and Forklifts, Mining |
R12486
FCA - Harness 2C 2 pin Deutsch F / Click in
555-0093
NO GLARE LED - NO GLARE LED work light 1500 Lumen
QH302RANGE_FL
Q H3 02 - Work light Halogen 12V, 24V, 36V, 48V, 80V
D14759
CARBONLUX - Reverse light R23 LED square 90X90mm - DT 2 pins
D14744
RC 850 LED - LED compact round work light deutsch
S H3 REVERSE_FL
S H3 REVERSE - Service light Halogen 12V, 24V, 36V, 48V, 80V
SH3FL_PG7_Cristal
S H3 - Work light Halogen 12V, 24V, 36V, 48V, 80V
SH3RANGE_LB
S H3 - Work light Halogen 12V, 24V, 36V, 48V, 80V
SXENONRANGE_T
S XENON - Work light Xenon 12/24V
D14850
SL-RL / SLA-RLA LED - LED compact work light 1000 Lumen
S H3 REVERSE_ADR
S H3 REVERSE - Service light Halogen 12V, 24V, 36V, 48V, 80V...
D14556
CARBONLUX - Reverse light R23 LED square 90X90mm with...
SHD5000LED02RANGE_FL
SHD 5000 LED 02 - Work light Heavy LED 12/100V Flood
Our No Glare optical modules cancel the dazzling effect without affecting the lighting coverage of the standard product, with a dedicated system which drives the light only where you need it, increasing safety and comfort for other drivers and workers around heavy duty and handling operating machines.
As standard this work light includes features such as the EMC CISPR25 class 5 as well as the integrated load dump, to meet the most severe manufacturer specifications.
