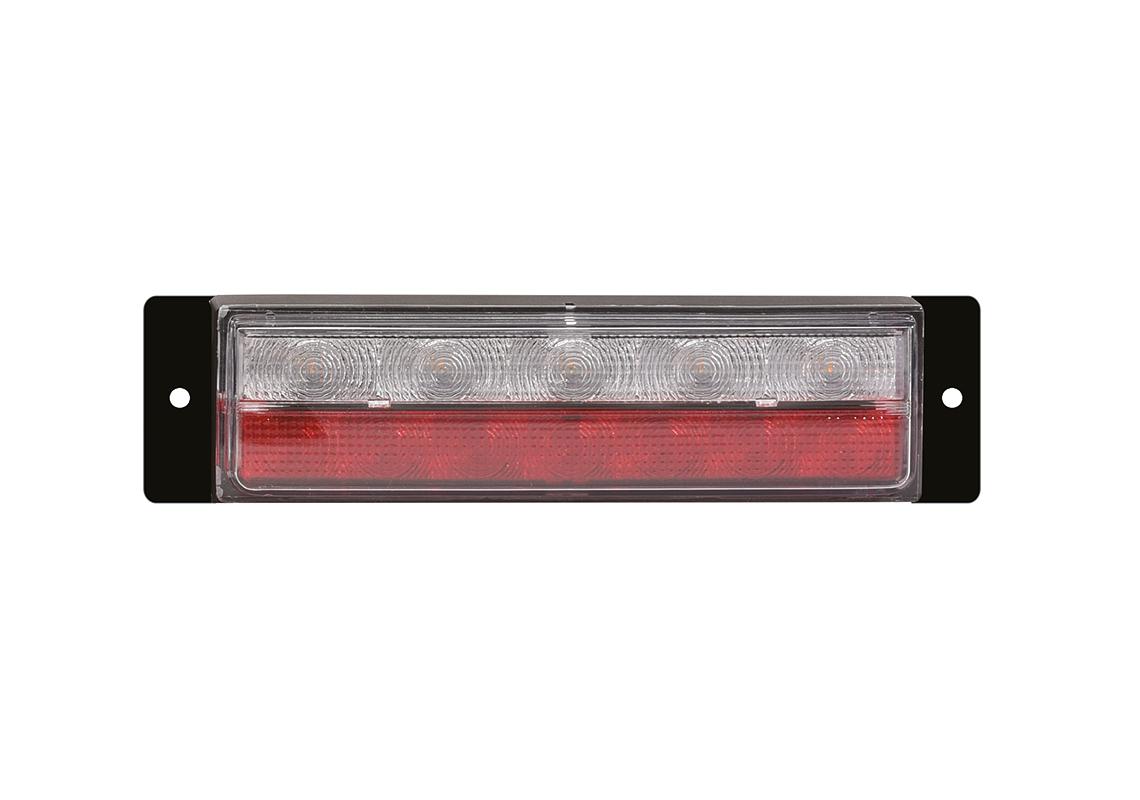

CTL15 LED - Rear lamp LED Left/Right to connect to tailgate light BL15
Ref. 164030 Show/hide other part numbers
- Ref. CTL 15 B2
Our LED signaling solution offers 100% LED lights with no maintenance, ensuring highly visible congestion signaling and effective hazard lights for maximum safety. The homogeneous lighting, extending beyond the tailgate, improves nighttime visibility...
Read more
- Voltage : 24V
- Source : LED
- Connector : DT4
- Side : Left/Right
- Fixation Bolt Distance : 174 mm
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Voltage | 24V | |
| Source | LED | |
| Connector | DT4 | |
| Mounting Direction | Horizontal | |
| Side | Left/Right | |
| Cable Length | 420 mm | |
| Shape | Rectangle | |

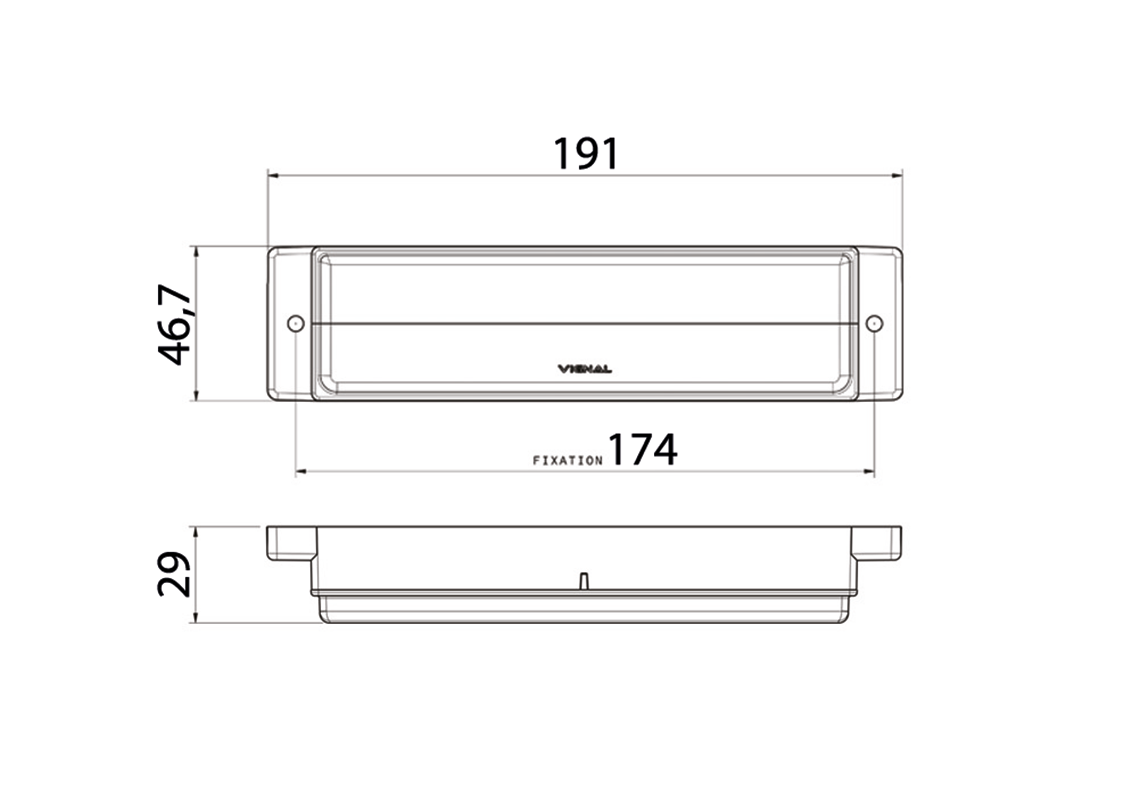

| Fixation Bolt Distance | 174 mm | |
| Length | 191 mm | |
| Depth | 29 mm | |
| Main Functions | Indicator, Stop, Position | |
| IP protection | IP6K9K | |
| ECE | E2 16005, ECE | |
| Industry | Agriculture, Construction, Forestry, Handling and Forklifts, Mining, Trucks, Vans and Chassis cab |
