Vignal Group, specialist of lighting and safety for industrial and commercial vehicles

LC11 LED - Rear lamp LED Right with HDSCS 8 pin rear connector IVECO

Ref. 160130 Show/hide other part numbers >

  • Ref. LC11 LED KI 21
  • Ref. 5802240297
  • Ref. 58012000770

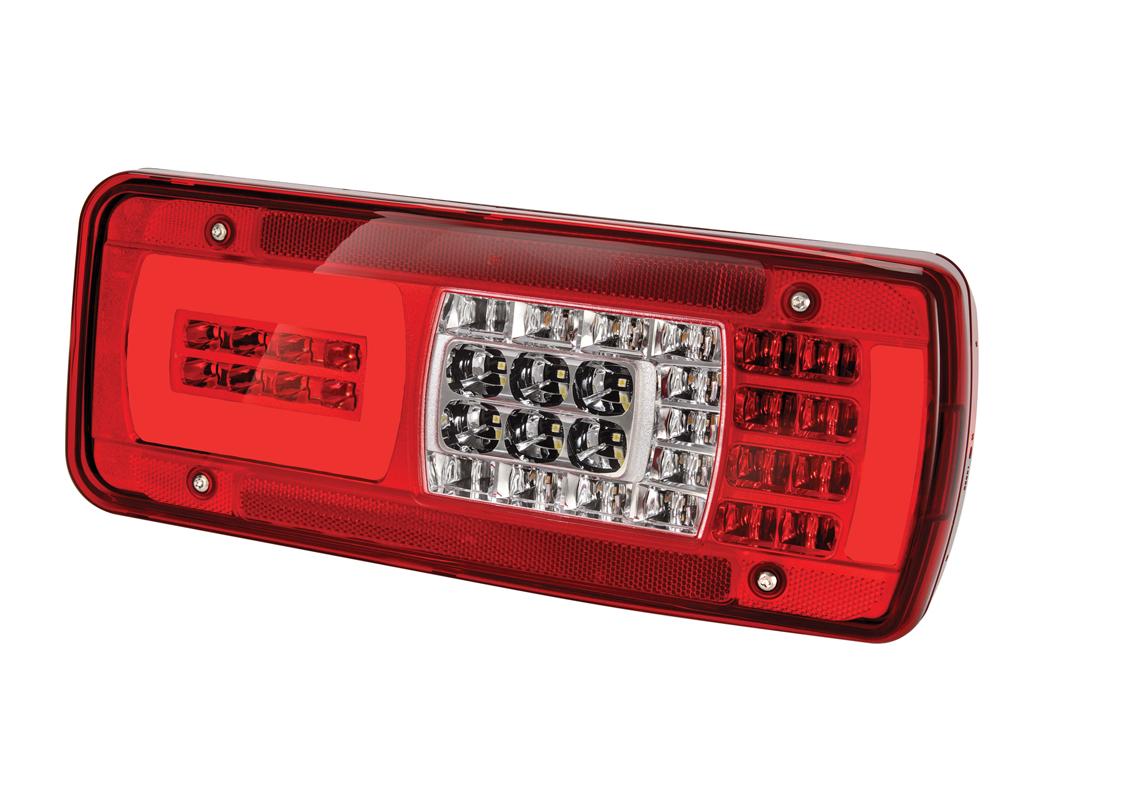

Rear lamp LED Right with HDSCS 8 pin rear connector IVECO
Rear lamp LED Right with HDSCS 8 pin rear connector IVECO
Rear lamp LED Right with HDSCS 8 pin rear connector IVECO
Rear lamp LED Right with HDSCS 8 pin rear connector IVECO
  • Voltage : 24V
  • Source : LED

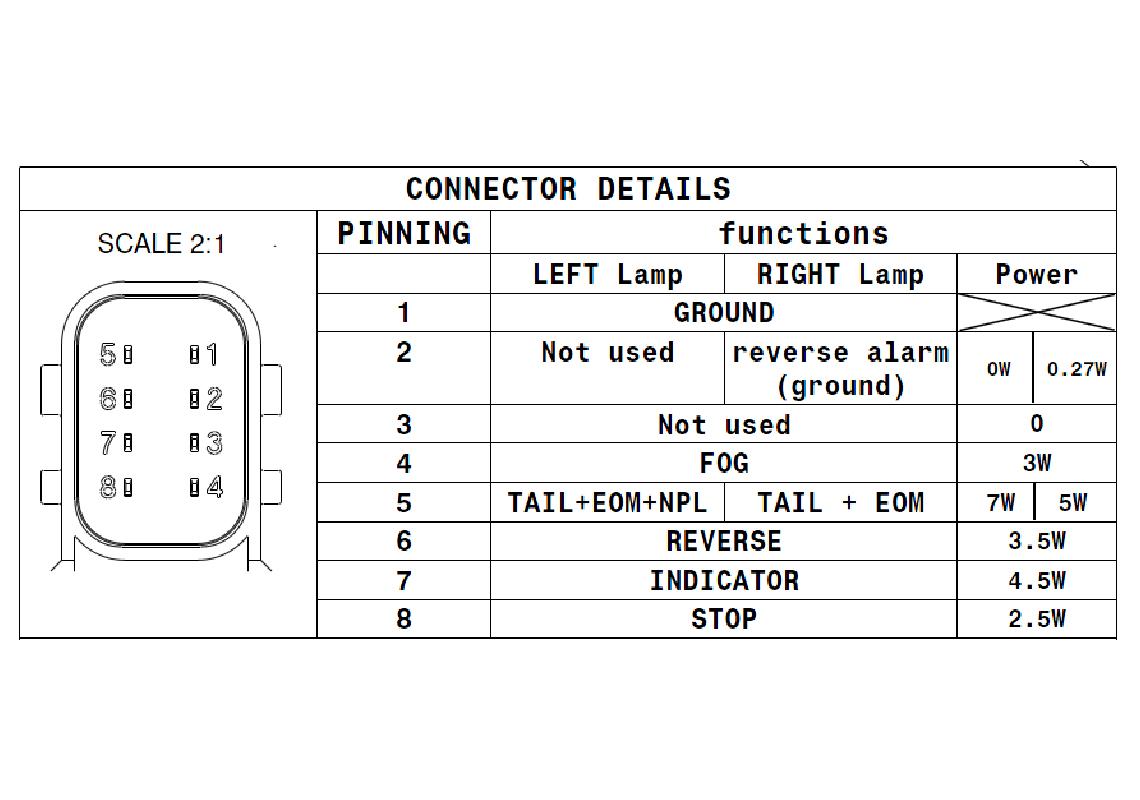

  • Connector : HDSCS 8 pin rear connector, IVECO rear connector
  • Side : Right
  • Fixation Bolt Distance : 152 mm
Not all products are available in all markets.

Need some advices ? Any questions ? We call you back !

All data provided to us is only used by our services, as part of your call request and any commercial relationship that may result (learn more).
Brand Vignal
Product Type Complete lamp
Manufacturer Iveco
Voltage 24V
Source LED
Connector HDSCS 8 pin rear connector, IVECO rear connector
Mounting Direction Horizontal
Side Right
Shape Rectangle

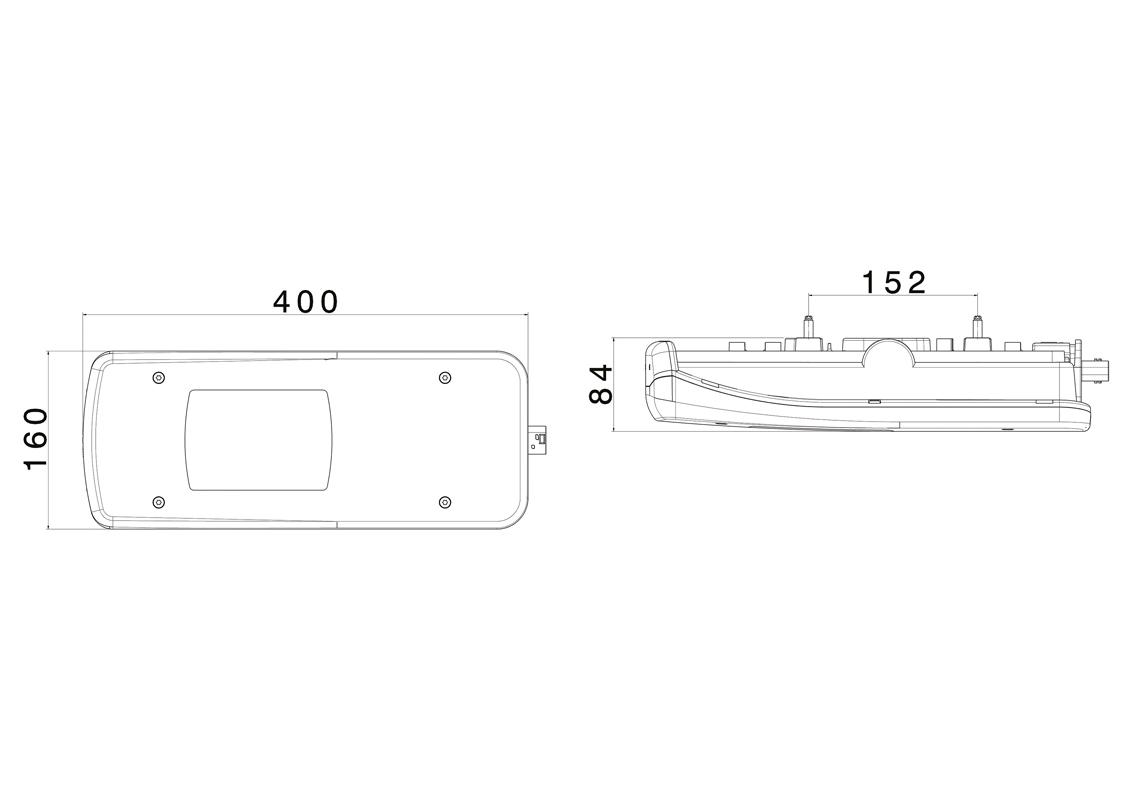

Fixation Bolt Distance 152 mm
Length 400 mm
Width 160 mm
Depth 84 mm
Main Functions Indicator, Stop, Position, Reverse, Fog, Rear reflector, End-outline marker lamp, Side position, Side reflector
EMC E2 10R-047585
ADR ADR
Industry Trucks
Construtor
Model
reference
Start date
End date
Construtor : IVECO
Model : STRALIS - TRAKKER
reference : 58012000770
Start date : 03/2016
End date :
Construtor : IVECO
Model : STRALIS - TRAKKER
reference : 5802240297
Start date : 03/2016
End date :
