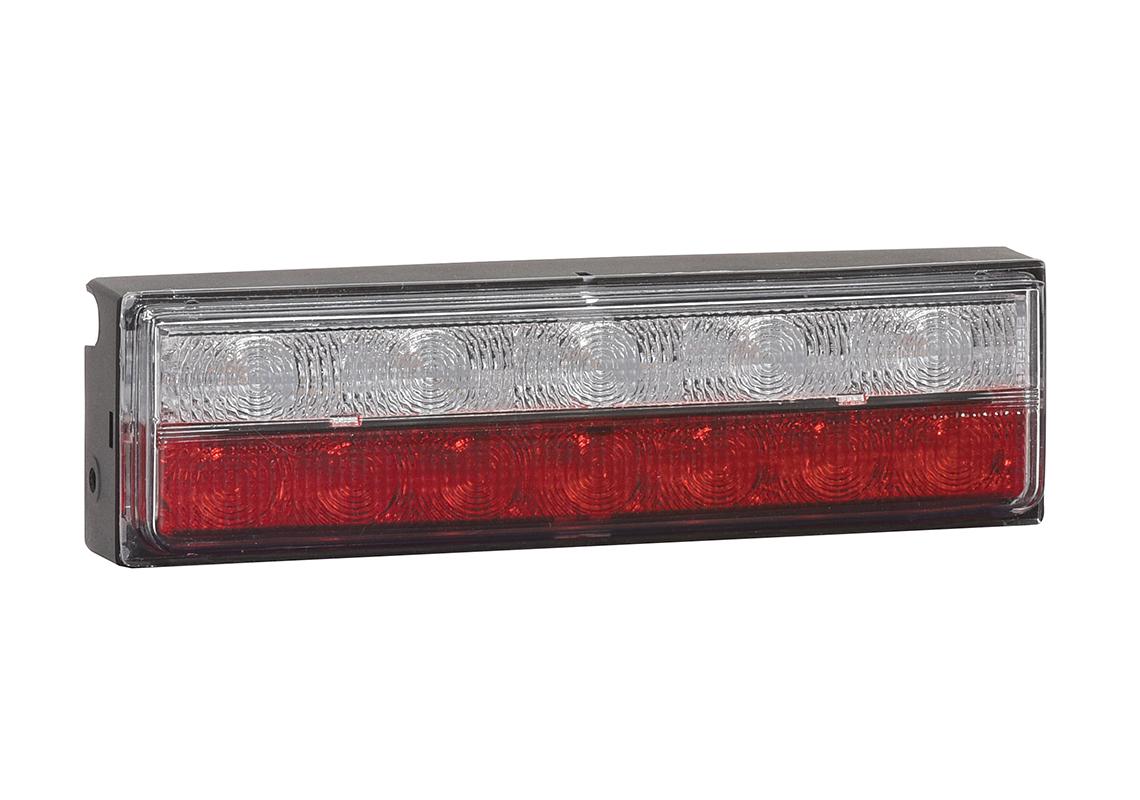

CTL15 LED - Rear lamp LED stop/position/indicator Left or Right
Ref. 164000 Show/hide other part numbers
- Ref. CTL 15 A
Our LED signaling solution offers 100% LED lights with no maintenance, ensuring highly visible congestion signaling and effective hazard lights for maximum safety. The rear mounting simplifies installation....
Read more
- Voltage : 24V
- Source : LED
- Connector : DT4
- Side : Left/Right

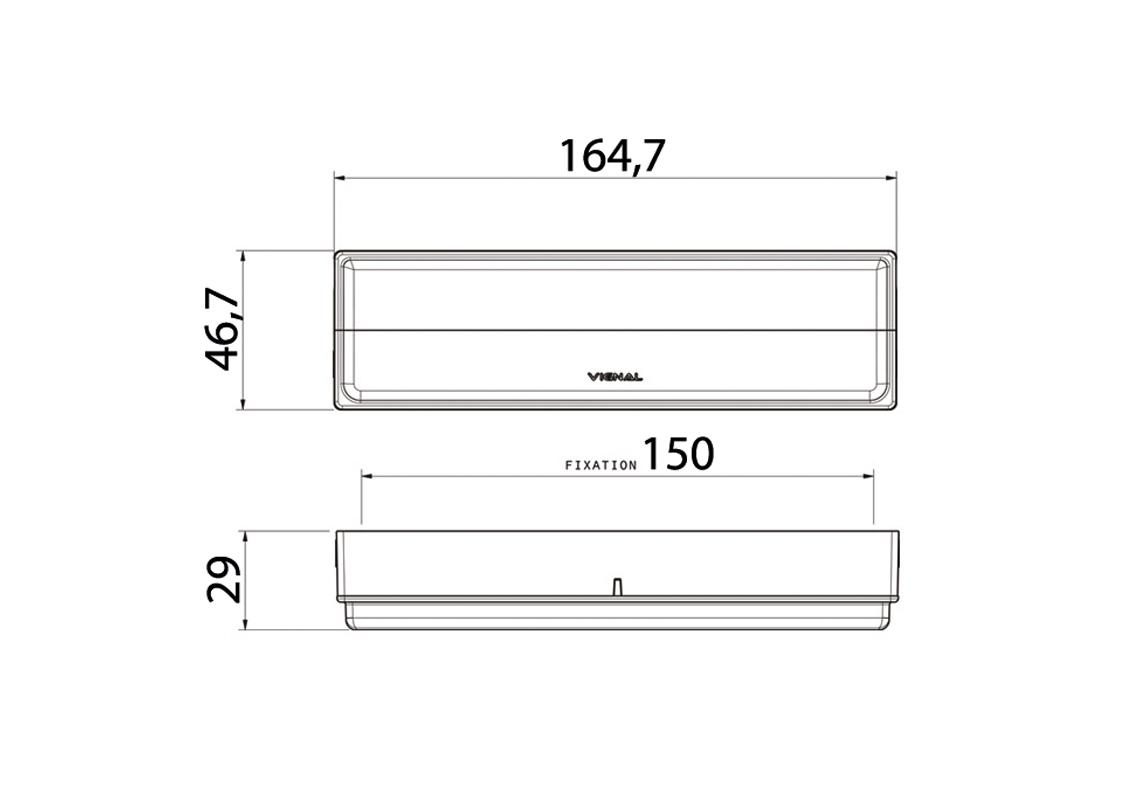

- Fixation Bolt Distance : 150 mm
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Manufacturer | Chereau | |
| Voltage | 24V | |
| Source | LED | |
| Connector | DT4 | |
| Mounting Direction | Horizontal | |
| Side | Left/Right | |
| Cable Length | 440 mm | |
| Shape | Rectangle | |
| Fixation Bolt Distance | 150 mm | |
| Depth | 29 mm | |
| Main Functions | Indicator, Stop, Position | |
| IP protection | IP6K9K | |
| ECE | E2 16005, ECE | |
| Industry | Agriculture, Construction, Forestry, Handling and Forklifts, Mining, Trucks, Vans and Chassis cab |
