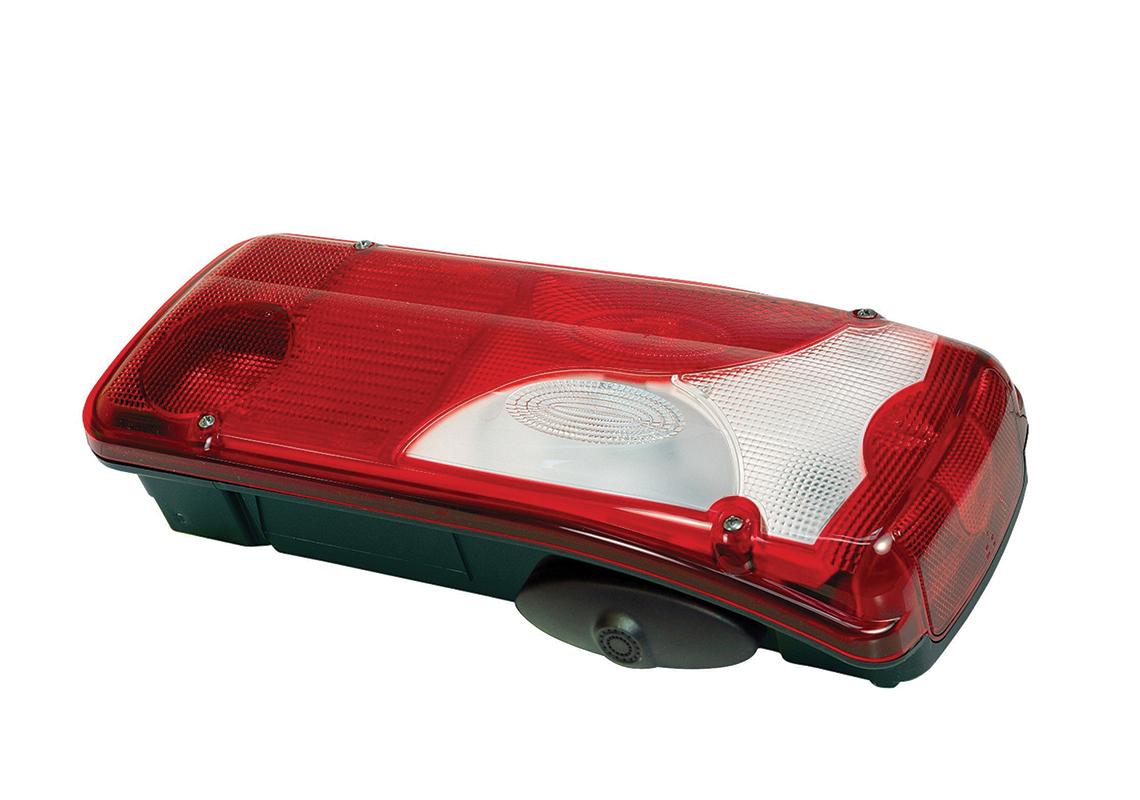

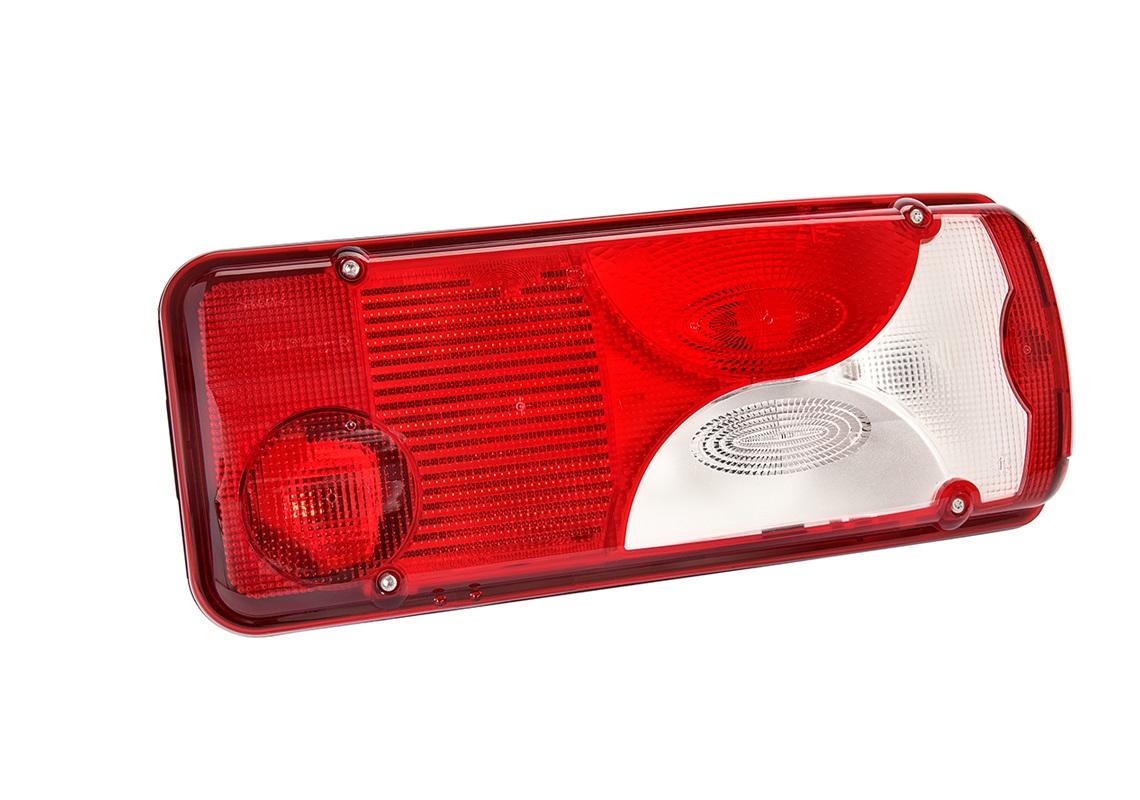

LC8 - Rear lamp Right with alarm and AMP 1.5 - 7 pin rear connector
Ref. 155610 Show/hide other part numbers
- Ref. LC8 KB 21Ka
- Ref. A9595440303
- Manufacturer : Mercedes

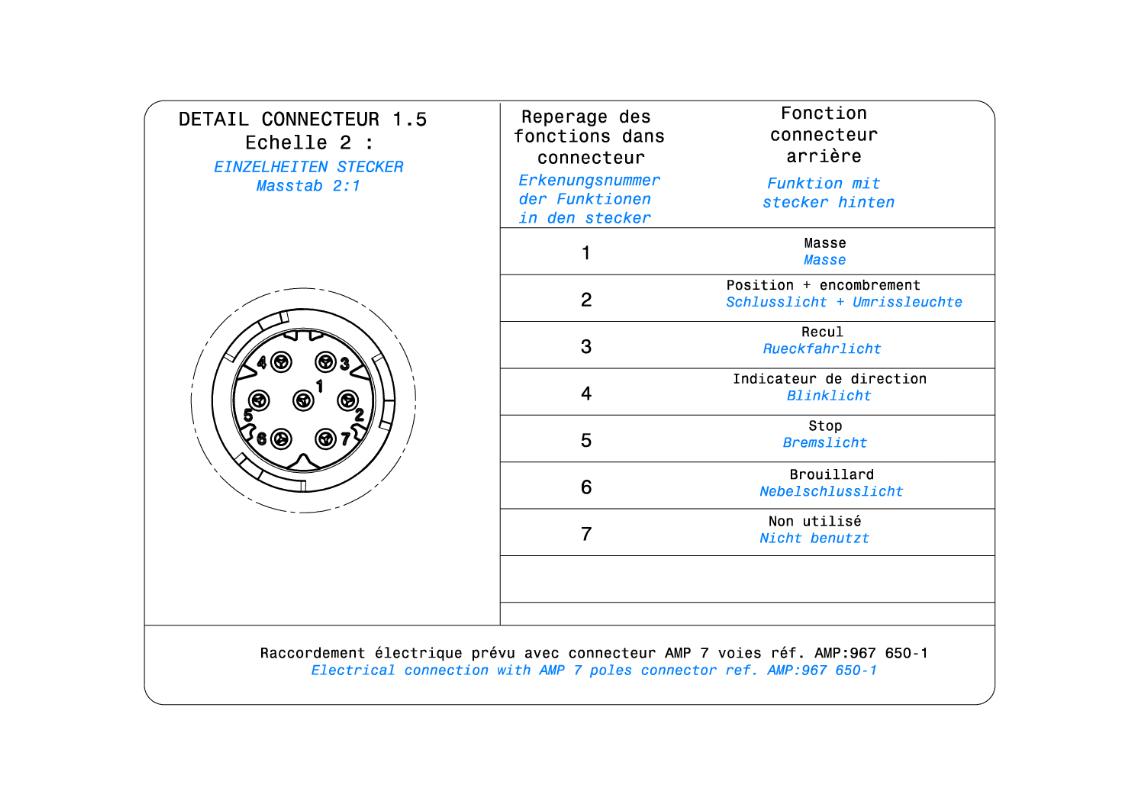

- Connector : AMP 1.5 - 7 pin rear connector
- Side : Right
- Specific Functions : Back up alarm
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Manufacturer | Mercedes | |
| Voltage | 12/24 V | |
| Source | Bulbs | |
| Connector | AMP 1.5 - 7 pin rear connector | |
| Mounting Direction | Horizontal | |
| Side | Right | |
| Shape | Rectangle | |
| Fixation Bolt Distance | 152 mm | |
| Length | 400 mm | |
| Width | 160 mm | |
| Main Functions | Indicator, Stop, Position, Reverse, Fog, Rear reflector, End-outline marker lamp, Side position, Side reflector | |
| Specific Functions | Back up alarm | |
| ADR | ADR | |
| ECE | E2 2040 | |
| CCC | CCC | |
| Industry | Trucks |
Applications
Construtor
Model
reference
Start date
End date
Construtor :
MERCEDES - DAIMLER
Model :
ZETROS
reference :
A 959 544 03 03
Start date :
09/2019
End date :
D11868
