LC8 - Rear lamp Right with HDSCS 8 pin side connector DAF

Ref. 155110 Show/hide other part numbers

  • Ref. LC8 KD 21 S
  • Ref. 1875576

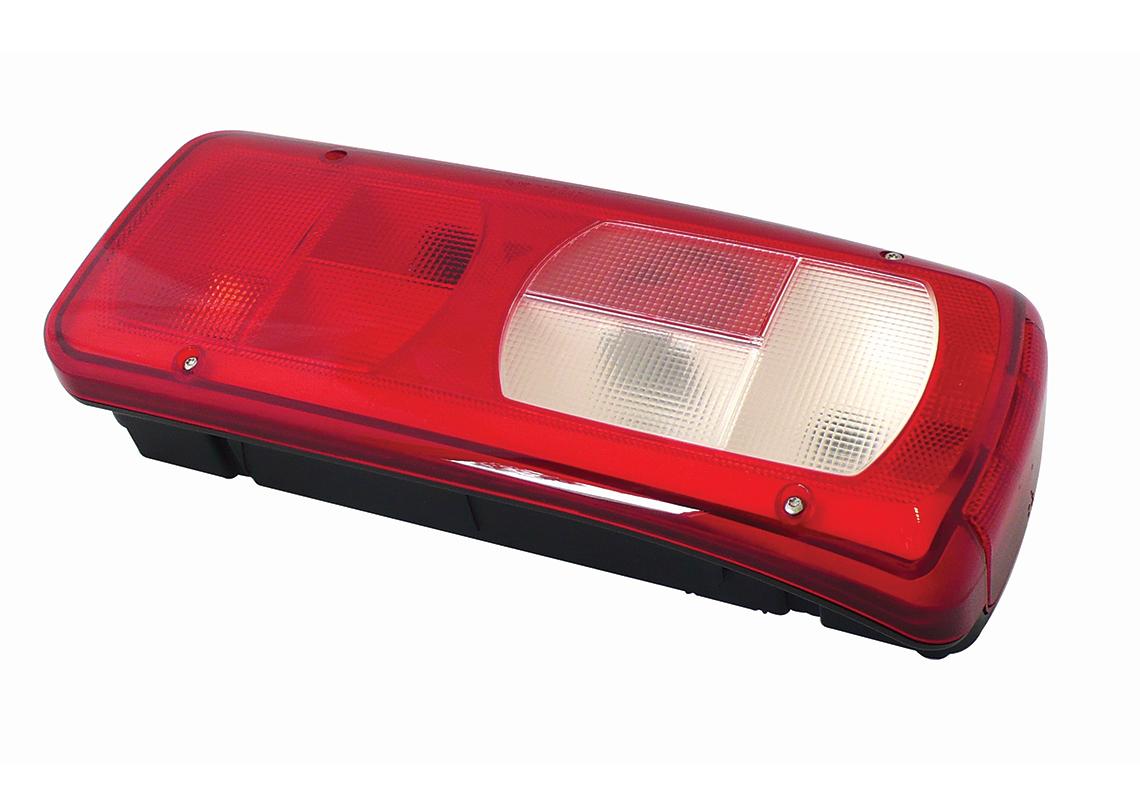

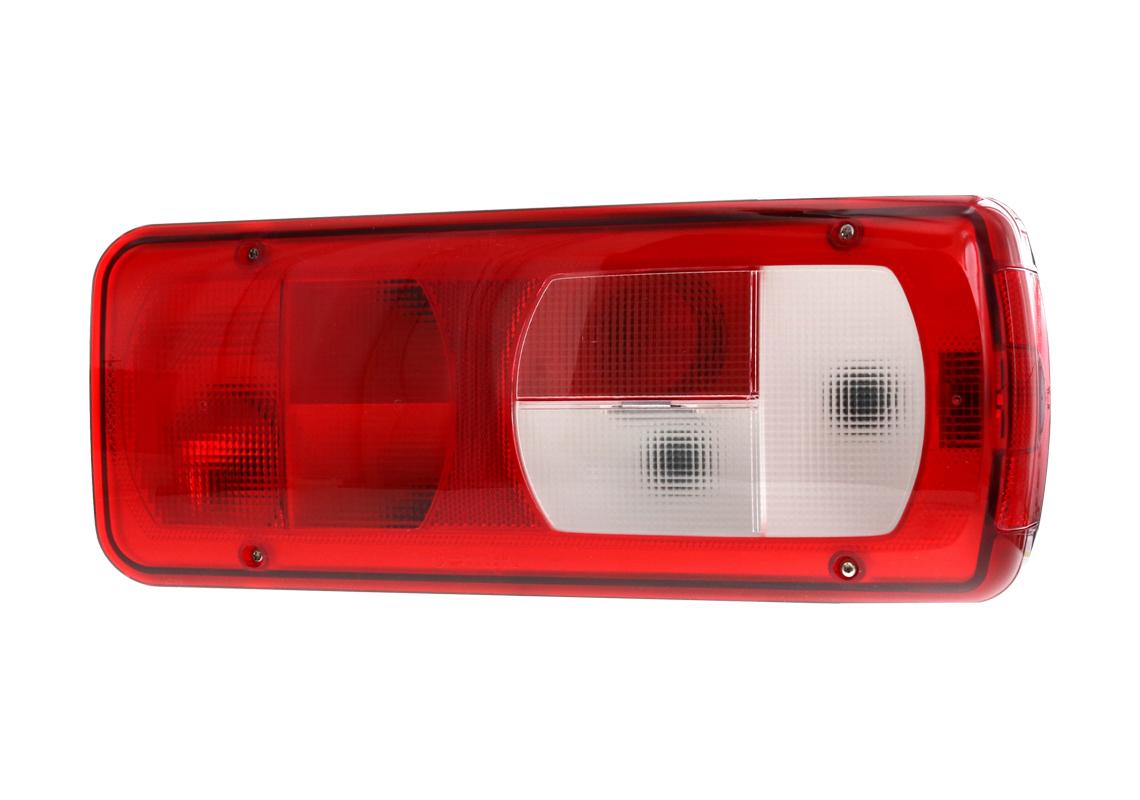

Rear lamp Right with HDSCS 8 pin side connector DAF
Rear lamp Right with HDSCS 8 pin side connector DAF
Rear lamp Right with HDSCS 8 pin side connector DAF
  • Manufacturer : Daf Trucks
  • Voltage : 12/24 V
  • Source : Bulbs

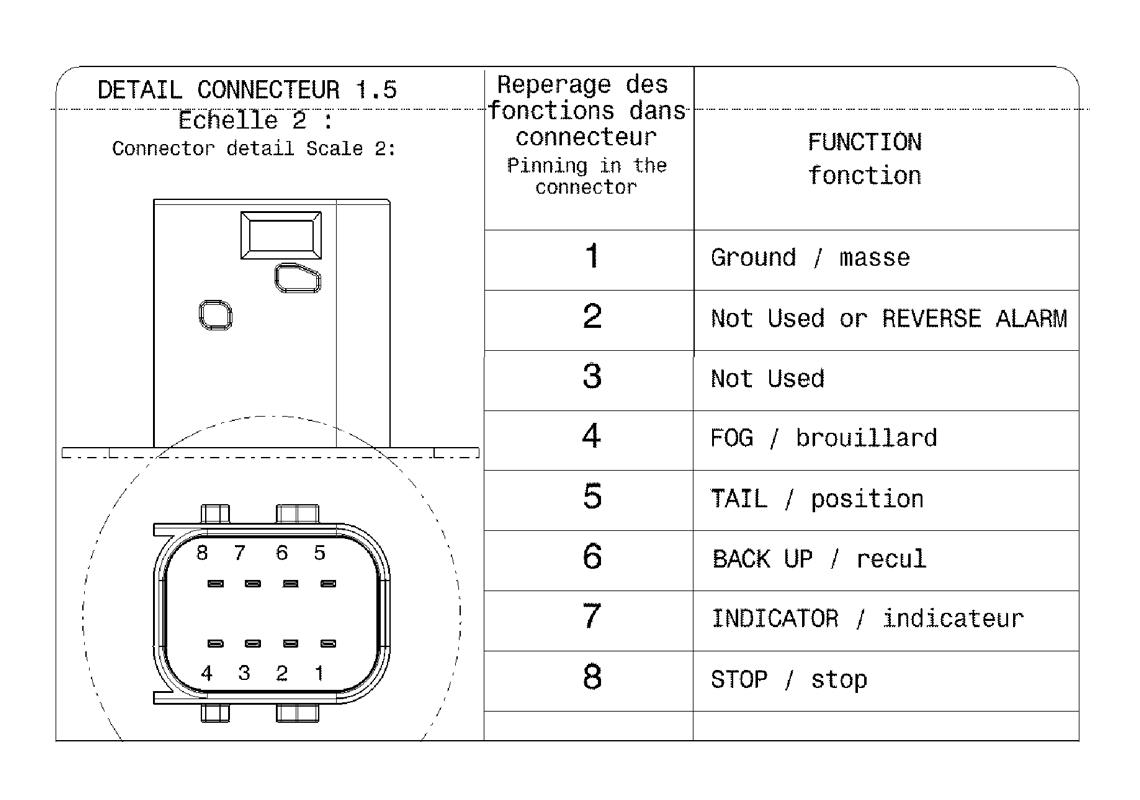

  • Connector : HDSCS 8 pin side connector
  • Side : Right
  • Fixation Bolt Distance : 160 mm
Not all products are available in all markets.

Need some advices ? Any questions ?  We call you back !

Brand Vignal
Product Type Complete lamp
Manufacturer Daf Trucks
Voltage 12/24 V
Source Bulbs
Connector HDSCS 8 pin side connector
Mounting Direction Horizontal
Side Right
Shape Rectangle

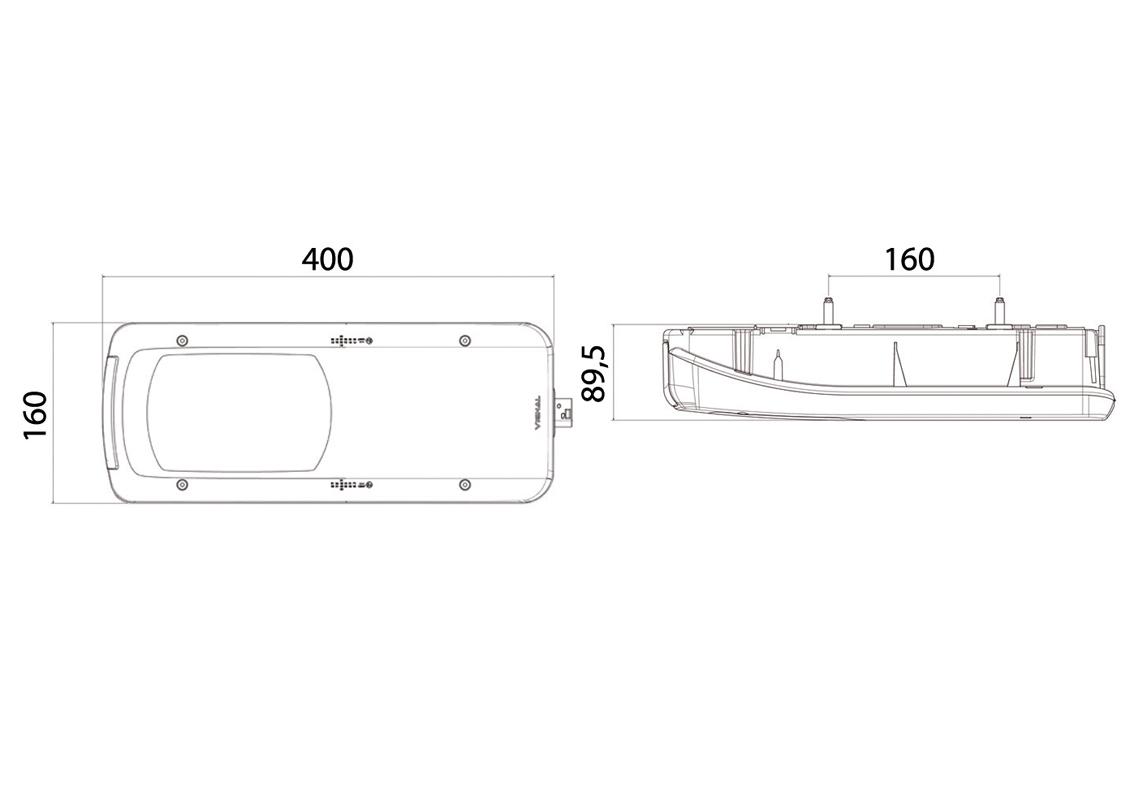

Fixation Bolt Distance 160 mm
Length 400 mm
Width 160 mm
Main Functions Indicator, Stop, Position, Reverse, Fog, Rear reflector, End-outline marker lamp, Side position, Side reflector
ADR ADR
ECE E2 12007
CCC CCC
Industry Trucks

Construtor
Model
reference
Start date
End date
Construtor : DAF
Model : CF - XF tracteur
reference : 1875576
Start date : 04/2012
End date :
