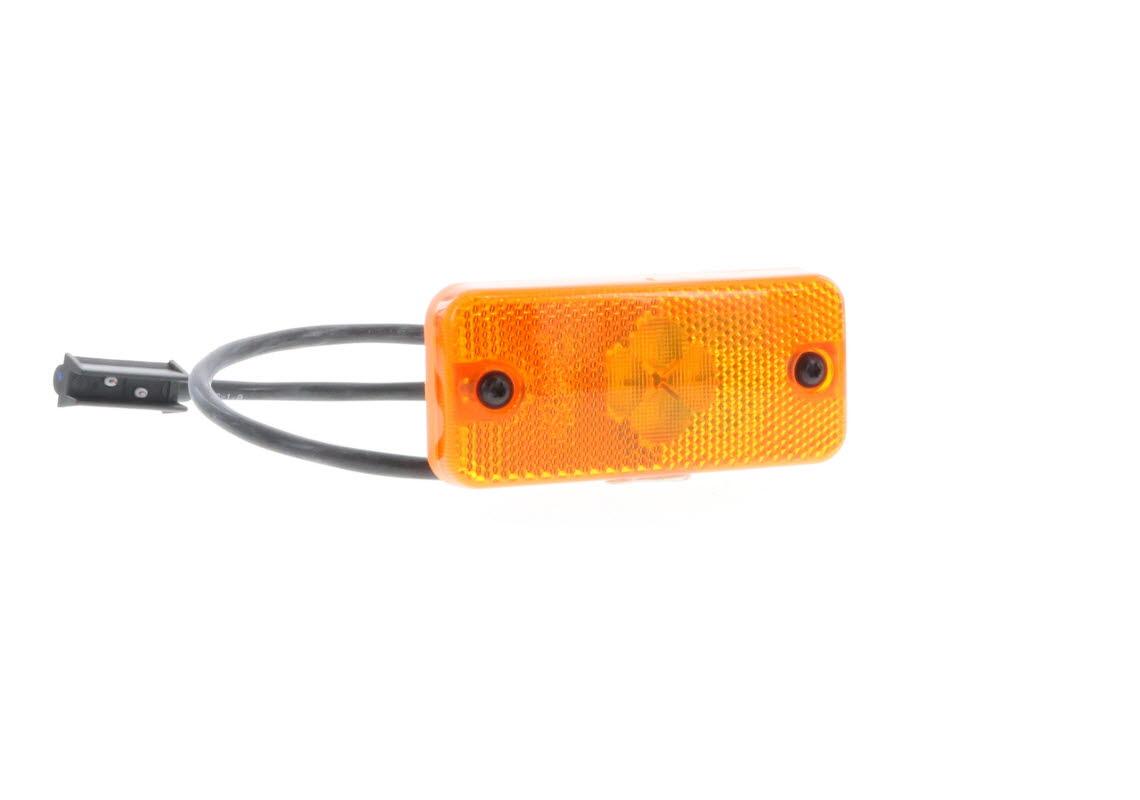

SMD98 LED - Side marker lamp LED 24V amber Manitowoc

Ref. D10493 Show/hide other part numbers

  • Ref. SMD 98 DK AP 500 - IAM
  • Ref. 03329572
Side marker lamp LED 24V amber Manitowoc
Side marker lamp LED 24V amber Manitowoc
Side marker lamp LED 24V amber Manitowoc
  • Manufacturer : Manitowoc
  • Voltage : 24V
  • Source : LED
  • Bulb : 4 LEDs
  • Color : Amber / Orange
  • Connector : Cable + click in
  • Mounting Direction : Horizontal+Vertical
  • Cable Length : 500 mm
  • Fixation Bolt Distance : 84 mm
Not all products are available in all markets.

Need some advices ? Any questions ?  We call you back !

Brand Vignal
Manufacturer Manitowoc
Voltage 24V
Source LED
Bulb 4 LEDs
Color Amber / Orange
Connector Cable + click in
Mounting Direction Horizontal+Vertical
Cable Length 500 mm
Shape Rectangle
Fixation Bolt Distance 84 mm
Length 110 mm
Width 50 mm
Depth 18 mm
Main Functions Side position
Specific Functions Reflector
ADR ADR
ECE E2 8040
Industry Agriculture, Construction, Forestry, Handling and Forklifts, Mining, Trailers and Semi-trailers, Trucks, Vans and Chassis cab

Construtor
Model
reference
Start date
End date
Construtor : MANITOWOC
Model : GROVE
reference : 03329572
Start date :
End date :
