TRIFLASH LED 500mm AK5 CL2 - 12/24V MAGNETIC MOUNTING FIXATION

TRIFLASH SESALY - TRIFLASH LED 500mm AK5 CL2 - 12/24V MAGNETIC MOUNTING FIXATION

Ref. TRL.500.020

TRIFLASH LED 500mm AK5 CL2 - 12/24V MAGNETIC MOUNTING FIXATION

TRIFLASH LED 500mm AK5 CL2 - 12/24V MAGNETIC MOUNTING FIXATION

TRIFLASH LED 500mm AK5 CL2 - 12/24V MAGNETIC MOUNTING FIXATION

Do you want to evenly distribute the weight of the Triflash LED on the vehicle, and is the vehicle's roof accessible to the driver? Choose the plate with a latch to manually raise and lower the Triflash 500 ! TRL500.020 is a Triflash 500 Class... Read more

Data Sheet

Homologation certificate

Not all products are available in all markets.

Need some advices ? Any questions ? We call you back !

Name *

Email *

Telephone *

Zip code *

Country *

* Mandatory fields

All data provided to us is only used by our services, as part of your call request and any commercial relationship that may result (learn more).

Technical characteristics Similar products

Technical characteristics

Brand		SESALY
Triflash size		500 (vehicle <3,5t)
Product Type		Triflash
Class		Class B (visible at 250 m)
Lift		Manual
Voltage		12/24 VDC
Source		LED
Approval		NF EN 12352, NF P 98475
Fixation		Adhesive
Material		Fiber-filled polyamide, yellow color
Width		436 mm
Depth		55 mm
Height		443 mm
Weight		2,40 Kg
Operation Temperatures		-30°C to +60°C
Warranty		2 years
EMC		ECE R10-06
Industry		Construction, Trucks, Vans and Chassis cab

Similar products

COMBI 500 ELEC Class 2 with flashing beacons to stick on

COMBIT5.2FL.ADHCL2

COMBI TRI - COMBI 500 ELEC Class 2 with flashing beacons to...

Universal T-bar to be glued with Triflash 700mm & rotating beacons

SMT T7.2GL.ADH

Universal bars - Universal T-bar to be glued with Triflash 700mm...

COMBI 700 ELEC Class 2 with screw-on flashing beacons

COMBIT7.2FL.FIXCL2

COMBI TRI - COMBI 700 ELEC Class 2 with screw-on flashing...

FIX TLP500 R

TRIFLASH SESALY - FIX TLP500 R

LED Triflash 700 Manual Class 2

D14926

TRIFLASH CEA - LED Triflash 700 Manual Class 2

Manual lifting kit

D14928

TRIFLASH CEA - Manual lifting kit

LED Triflash 500 Manual Class 1

76TIF500

TRIFLASH AND BARS SARR - LED Triflash 500 Manual Class 1

Customized bar for Peugeot Expert 2016

B1602GL100.R5- RLP500.BARRE-S43

Equipped bars - Customized bar for Peugeot Expert 2016

COMBI 700 ELEC Class 1 with magnetic rotating beacons

COMBIT7.2GL.MAG

COMBI TRI - COMBI 700 ELEC Class 1 with magnetic rotating...

STLP 700 RAIL Class 2

STLP700 RAIL CL2

TRIFLASH SESALY - STLP 700 RAIL Class 2

COMBI 500 ELEC Class 1 with magnetic flashing beacons

COMBIT5.2FL.MAG

COMBI TRI - COMBI 500 ELEC Class 1 with magnetic flashing...

Triflash TSL LED 500 SLIM Manual Class 2

76TSL502

TRIFLASH AND BARS SARR - Triflash TSL LED 500 SLIM Manual Class 2

Do you want to evenly distribute the weight of the Triflash LED on the vehicle, and is the vehicle's roof accessible to the driver?
Choose the plate with a latch to manually raise and lower the Triflash 500!

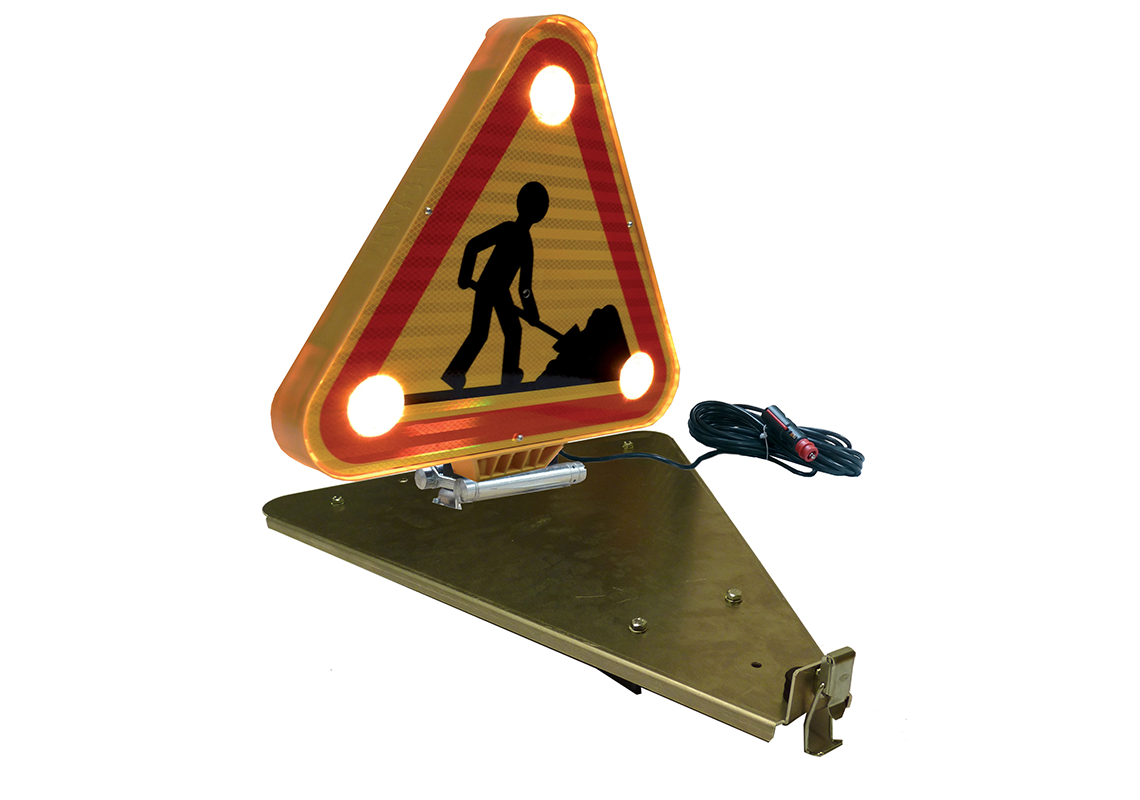

TRL500.020 is a Triflash 500 Class 2, mounted on a magnetic fixing plate, supplied with a latch mechanism.

Plate features:

Equipped with a latch to keep the Triflash 500 lowered.
Supplied with a magnetic fixing for temporary use.
