Wireless camera systems - Wireless HD system 2.4 GHz with multi display 7" screen
Ref. D16044 Show/hide other part numbers
- Ref. D14328 remplacé par/replaced by D16044
- Ref. D14805 remplacé par/replaced by D16044
Discover the D16044 camera kit, our latest-generation wireless system. Designed to meet the needs of professionals, it is suitable for all types of applications: trucks, trailers, utility vehicles, agricultural machinery, construction equipment,...
Read more

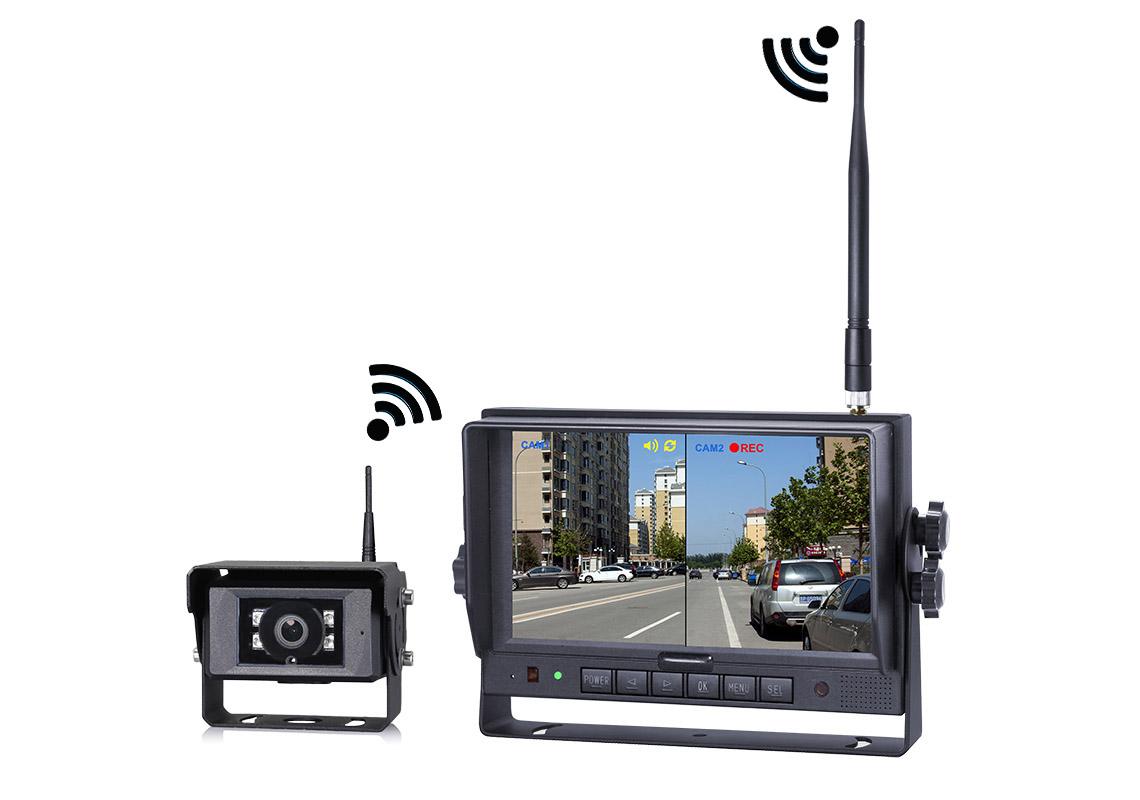

- Composition : 1 wireless screen multi-display + 1 wireless camera
- Max Cameras : 4 cameras max
- Vision Angle : 130°
- Max Distance with Monitor : 300 m (without barrier)
Not all products are available in all markets.
Technical characteristics
| Product Type | Complete kit | |
|---|---|---|
| Voltage | 12/24 V | |
| Consumption | 10W | |
| Color | Yes | |
| Screen display | Multi-display | |
| Screen Size | 7" | |
| Composition | 1 wireless screen multi-display + 1 wireless camera | |
| Resolution | 1024 x 3 (RGB) x 600 | |
| Max Cameras | 4 cameras max | |
| Vision Angle | 130° | |
| Audio | Built in Speaker | |
| Night/Day sensor | Yes | |
| Night Vision Distance | 8-10 m | |
| Infrared LED Number | 4 LEDs | |
| Recording | Real time Recording on micro SD card 125GB (not included) | |
| Time Delay | 200 ms | |
| Languages | French, English, Chinese, German | |
| Display Modes | normal, horizontal, vertical, mirror | |
| Sunshade | Yes | |
| Reverse Distance Grid | Yes | |
| Pairing | Automatic | |
| Max Distance with Monitor | 300 m (without barrier) | |
| Video Standard | PAL / NTSC | |
| IP protection | IP69K (camera) | |
| Operation Temperatures | -20°C to +70°C | |
| Vibration Resistance | ISO 16750-3 - max 5,9G | |
| Industry | Agriculture, Construction, Forestry, Handling and Forklifts, Mining, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
D16045
Accessories wireless systems - Wireless HD 1080P camera for D16044 system or...
D16055
Accessories wireless systems - 7" multi display wireless 2.4 GHz screen...
700C
Accessories wired systems - Infrared LED rear view camera for bus/coach...
D16134
Accessories wired systems - 7" AHD split screen
CAM KIT 7"
Wired Camera systems - Colour rear view camera kit for commercial...
D16214
Wireless camera systems - WIRELESS HD KIT 1 MONITOR 7' + 1 CAMERA
D14063
Accessories wireless systems - Additional antenna cable 7 m
D16175
360° Camera systems - Complete 360° 4 cameras kit
D16046
Accessories wireless systems - HD-1080P WIRELESS magnetic battery camera for...
69KIT160
Wired Camera systems - KIT 10'' HD 1080P QUAD CAMERA INOX 69CAM161
D14148
Accessories wired systems - Camera slim 150°
69ECU360ENR
Wired Camera systems - ECU 360 6V RECORDER WITH GPS
D16055
Accessories wireless systems - 7" multi display wireless 2.4 GHz screen...
D16131
Wired Camera systems - Complete AHD 7" wired kit with HD 1080P...
Discover the D16044 camera kit, our latest-generation wireless system. Designed to meet the needs of professionals, it is suitable for all types of applications: trucks, trailers, utility vehicles, agricultural machinery, construction equipment, forklifts... It allows fast installation without the need for long cables.
This kit offers exceptional performances:
- HD 1080P camera
- 300 m transmission distance!
- 130° camera viewing angle
- Easy installation
- Automatic pairing
- Multi-mode quad screen
- Comprising: one color wireless display + one HD CMOS color wireless reversing camera
