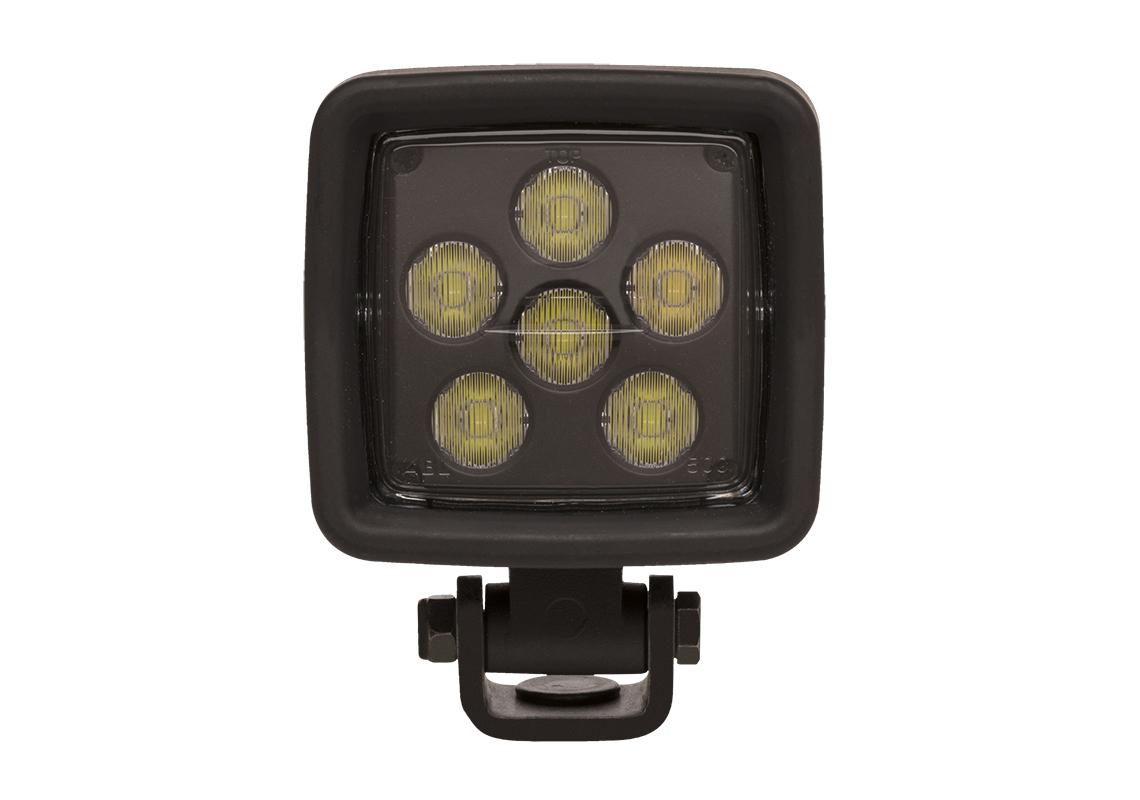

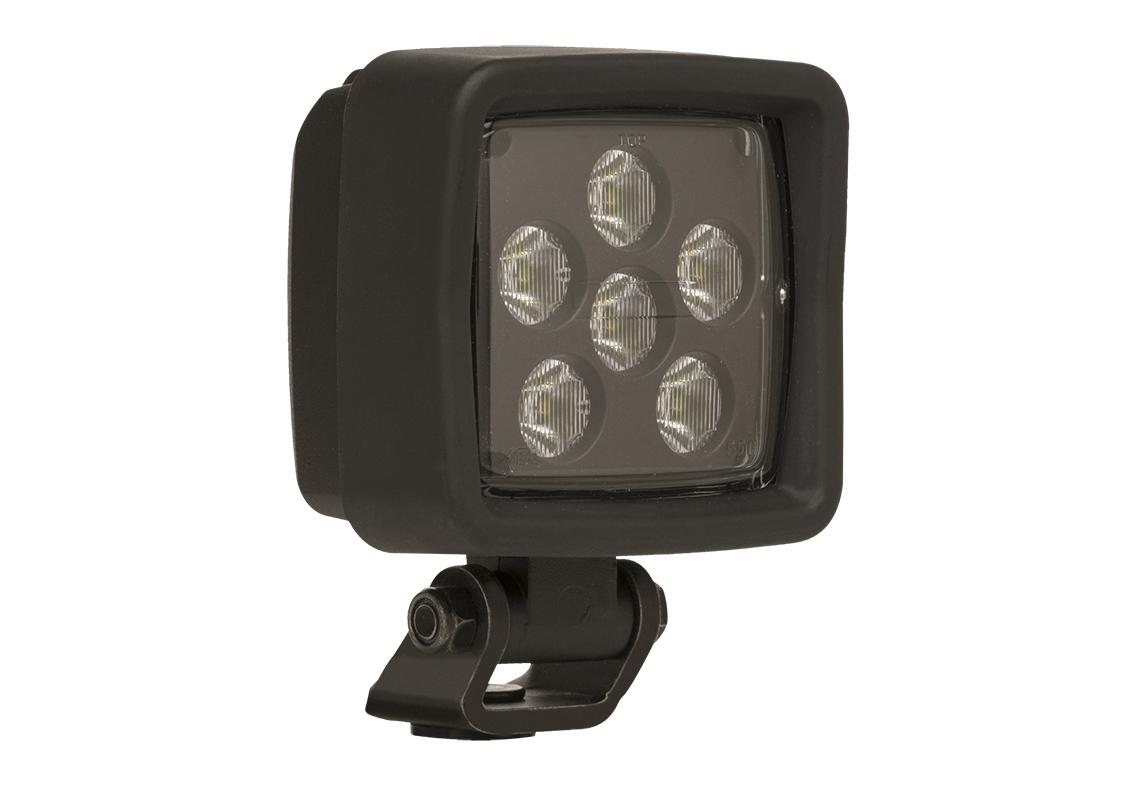

Ref. SHD3000LEDRANGE_LR
Brand | ABL | |
---|---|---|
Product Type | Work light Heavy LED | |
Voltage | 12/100V | |
Source | LED | |
Amperage | 1,5 AMP at 24V | |
Consumption | 36W | |
Operational Lumen | 3000 Lumen | |
Color Temperature | 6000 K | |
Light pattern | Long range | |
Color | Amber, red, blue, crystal | |
Connector | AMP 2 pin, DT 2 pin | |
Mounting | Pedestal, suspended | |
Lens Material | Hardened glass | |
Shape | Square | |
Length | 102 mm | |
Width | 80 mm | |
Height | 98 mm | |
Weight | 0,9 Kg | |
Number of Poles | 6 | |
IP protection | IP68 - IP69K | |
Polarity | Protected against reverse voltage | |
Electronic Thermal Management | Full output at +35°C ambiant, 20 % dimmed at + 50°C ambiant | |
Operation Temperatures | -40°C to +85°C | |
Load Dump | 130V CONTINUOUS/ 200V 100ms/ 1800V 50µs | |
Salt Spray Test | ISO 9227 | |
Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | |
Shock resistance | 60G | |
Warranty | 30 000 operating hours or 5 years | |
EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR28 | |
Industry | Agriculture, Construction, Forestry, Mining, Priority vehicle, Trailers and Semi-trailers, Vans and Chassis cab |
