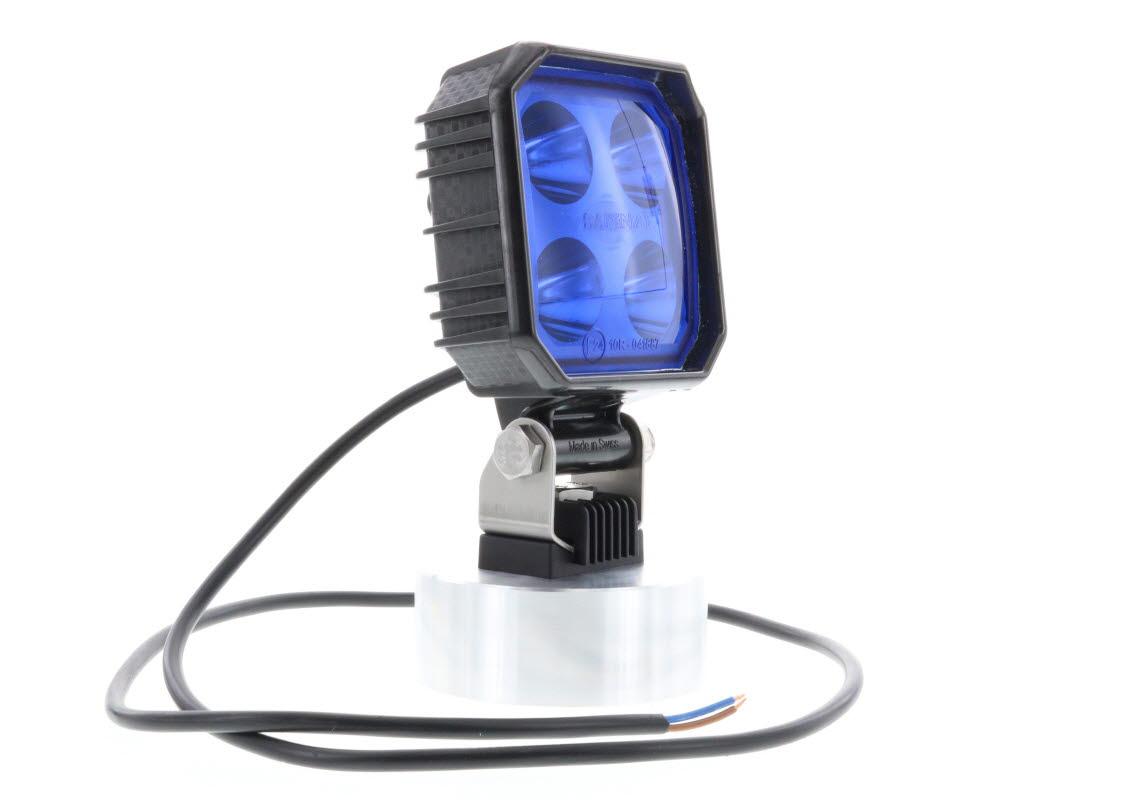

CARBONLUX - Work light LED square 90X90mm - cable - light bleu spot
Ref. D14554 Show/hide other part numbers
- Ref. 29.63.LSB.C0V
- Voltage : 10 - 30V
- Source : LED
- Consumption : 9W
- Theoretical Lumen : 1000 Lumen
- Light pattern : Spot
- Color : Blue
- Connector : Naked cable extremity
- Number of Poles : 4
Not all products are available in all markets.
Technical characteristics
| Brand | CEA | |
|---|---|---|
| Product Type | Work light | |
| Voltage | 10 - 30V | |
| Source | LED | |
| Consumption | 9W | |
| Theoretical Lumen | 1000 Lumen | |
| Light pattern | Spot | |
| Color | Blue | |
| Connector | Naked cable extremity | |
| Fixation | M10 bolt, To be screwed | |
| Cable Length | 1000 mm | |
| Lens Material | Polycarbonate | |
| Housing Material | Mineralized resins - CARBON | |
| Shape | Square | |

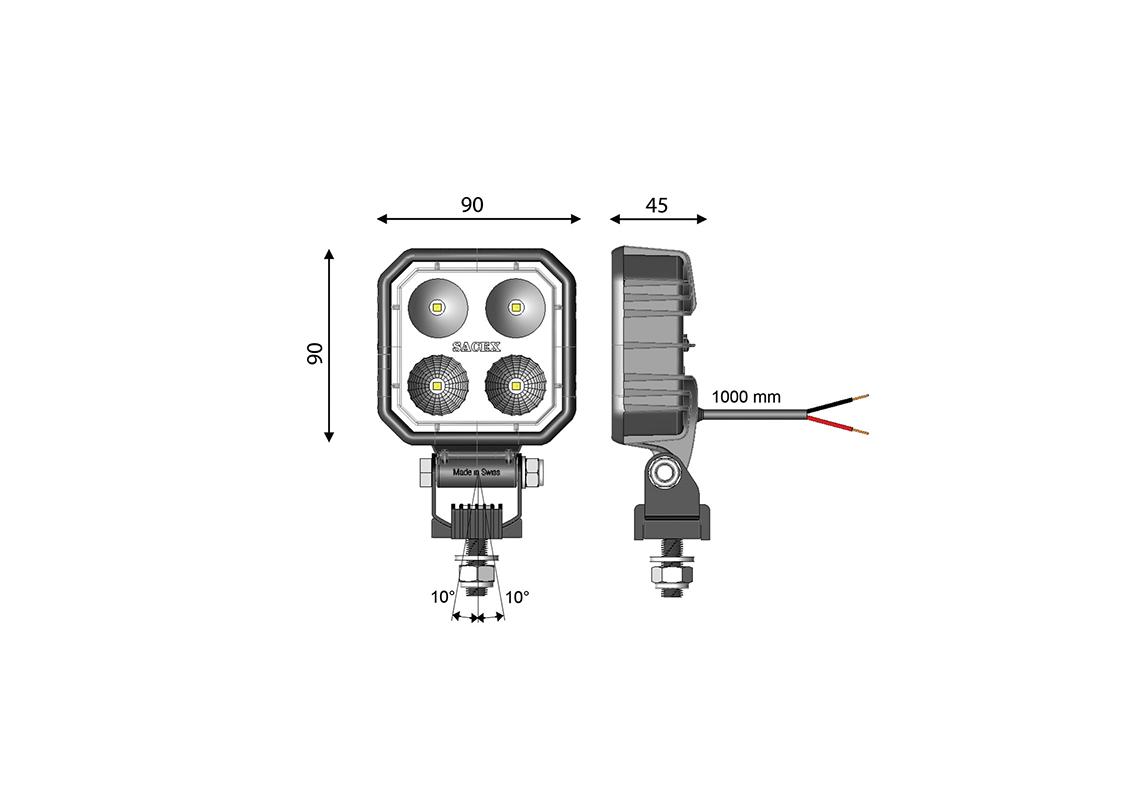

| Length | 90 mm | |
| Width | 90 mm | |
| Depth | 45 mm | |
| Weight | 0,34 Kg | |
| Number of Poles | 4 | |
| IP protection | IP69K | |
| Polarity | Protected against reverse voltage | |
| Operation Temperatures | -30°C to +50°C | |
| EMC | ECE R10 | |
| Industry | Agriculture, Construction, Forestry, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
