ATLAS LED - ATLAS LED Beacon 3 screws flash light amber

Ref. 212160

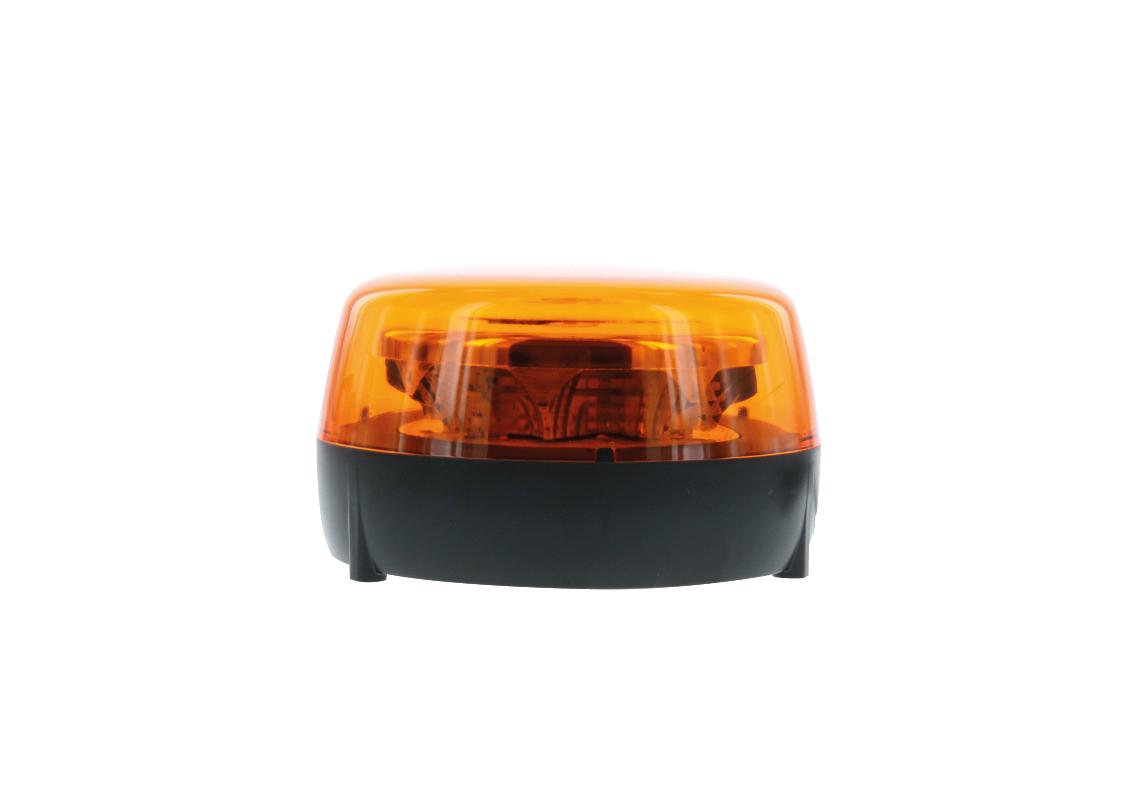

ATLAS LED Beacon 3 screws flash light amber
ATLAS LED Beacon 3 screws flash light amber
ATLAS LED Beacon 3 screws flash light amber
ATLAS LED Beacon 3 screws flash light amber
The ATLAS LED beacon meets the high requirements of the manufacturer’s specifications. Special attention has been paid to the thermal management of LEDs to ensure optimum service life and operation in the most extreme situations. Read more
  • Voltage : 9/32V
  • Source : LED
  • Consumption : 17W
  • Color : Amber / Orange
  • Connector : Naked cable extremity

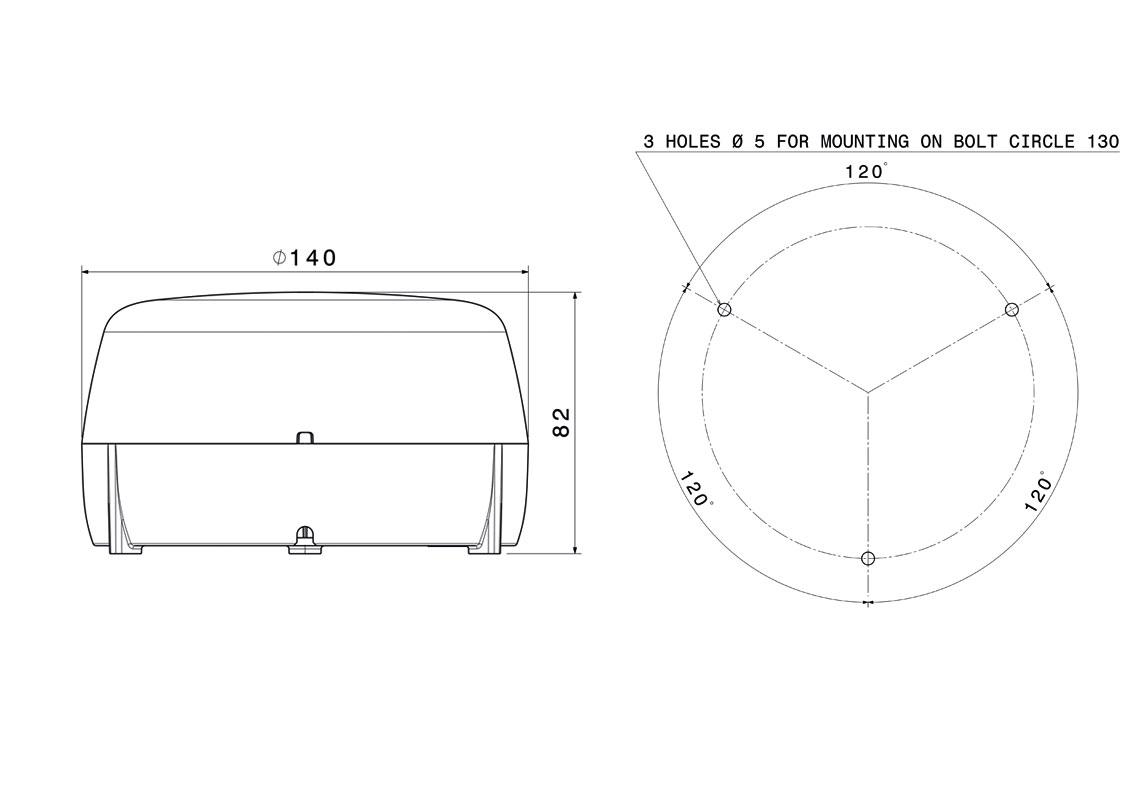

  • Fixation : 3 vis on Ø 130mm (DIN 14620)
  • Flash Patterns : Double Flash
Not all products are available in all markets.

Need some advices ? Any questions ?  We call you back !

* Mandatory fields

Brand Vignal
Product Type Complete lamp
Voltage 9/32V
Source LED
Consumption 17W
Color Amber / Orange
Connector Naked cable extremity
Fixation 3 vis on Ø 130mm (DIN 14620)
Lens Material Polycarbonate
Diameter 140 mm
Height 82 mm
Weight 0,45 Kg
Flash Patterns Double Flash
IP protection IP69K
Polarity Protected against reverse voltage
Operation Temperatures -40°C to +80°C
EMC CISPR25 Class 5, ECE R10
ECE ECE R65
Industry Agriculture, Construction, Forestry, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab

The ATLAS LED beacon meets the high requirements of the manufacturer’s specifications.
Special attention has been paid to the thermal management of LEDs to ensure optimum service life and operation in the most extreme situations.
