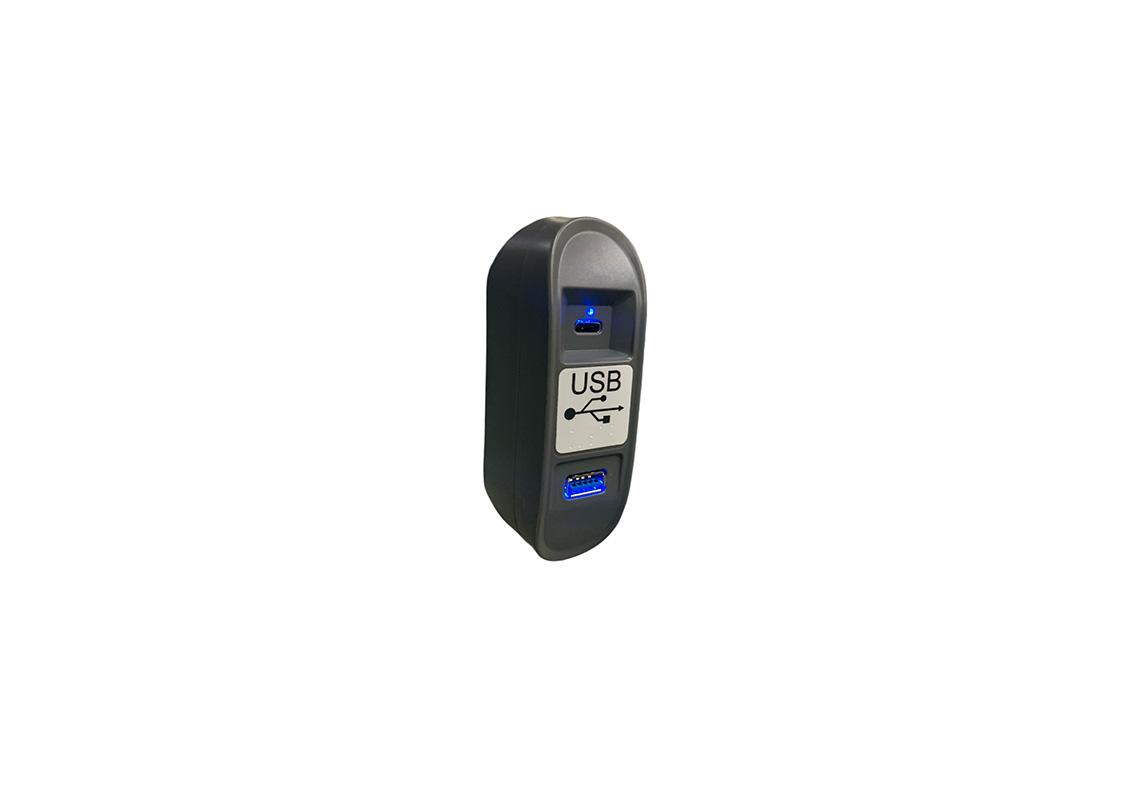

USB - DOUBLE USB A&C CHARGING PORT - ON COLUMN
Ref. D16254 Show/hide other part numbers
- Ref. USB-C.COL.V.1.1.7043
TECHNICAL DATA · Electronic Self-Protection: Protection against overvoltage up to 48V Protection against polarity reversal Protection against short circuits · Mini Fit Connector · Maximum consumption 24Vdc: 1.47 A ·...
Read more
Not all products are available in all markets.
Technical characteristics
| Brand | SESALY | |
|---|---|---|
| Voltage | 12/24 VDC | |
| Specific Functions | Blue LED Lighting for power indicator | |
| Operation Temperatures | -30°C to +60°C | |
| EMC | ECE R10-06 | |
| ECE | R118 |
USB3.25.APL.3.060501
USB - Beige USB plug
USB.RBL.1P
USB -
USB.RBL.2P
USB - Round USB socket with 2 plugs
USB QUICK CHARGE
USB - Simple USB charging socket for the comfort on...
USB.WIRELESS
USB - Wireless and USB charging device for the...
USB3.25.COL
USB - 3.0 USB charging socket for bus or a coach
USB3.25.APL.3.IDB
USB - Blue USB plug
TECHNICAL DATA
· Electronic Self-Protection:
Protection against overvoltage up to 48V
Protection against polarity reversal
Protection against short circuits
· Mini Fit Connector
· Maximum consumption 24Vdc: 1.47 A
· Standby consumption 24Vdc: 0.01 A
· Color options: RAL 7040 & RAL 7043
· Independent operation of 2 outputs
· USB-A: 5,000 cycles / USB-C: 30,000 cycles
KEY ADVANTAGES
· High charging current with automatic load detection 2X 2.5A
· Thermal self-protection (in case of environmental overheating)
· Modular installation (wall-mounted or column-mounted)
· Easy integration: Compact
· Compatible with all multimedia devices
· Customizable label with your company logo
