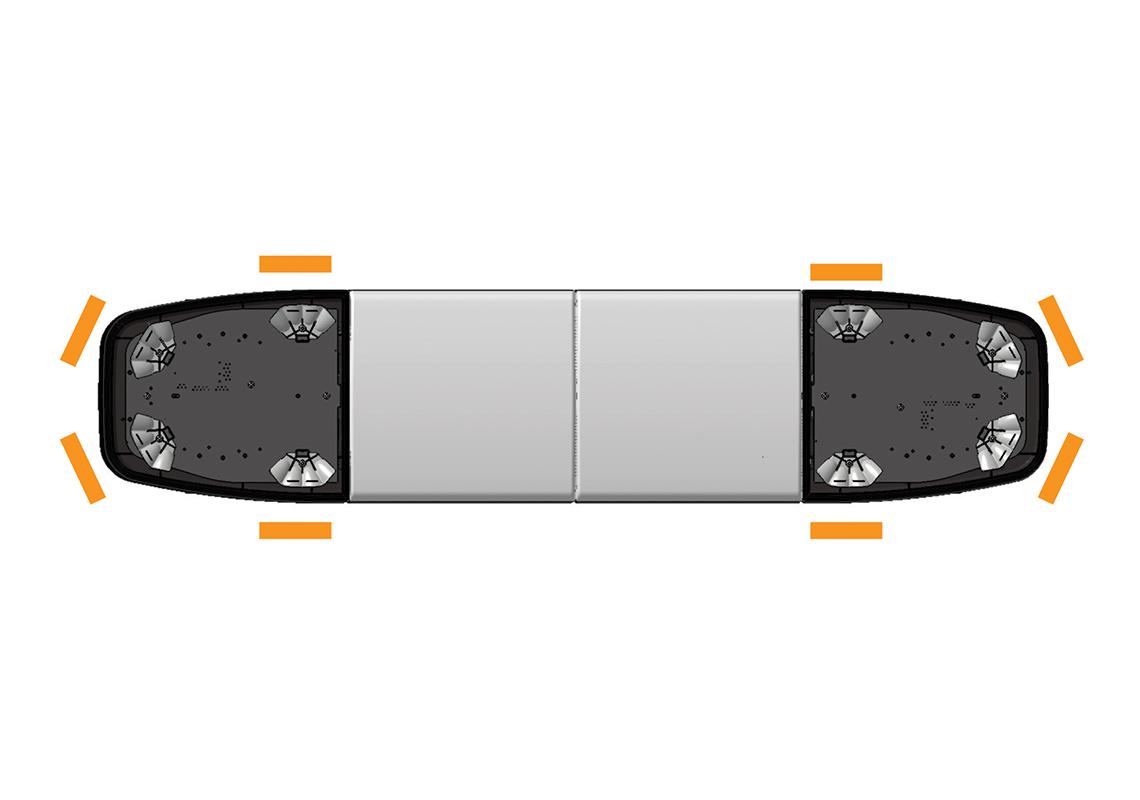

Extra-flat LED amber lightbar white center module 1250 mm

STELLAR - Extra-flat LED amber lightbar white center module 1250 mm

Ref. D23400 Show/hide other part numbers

Ref. 125A-OPAL

Benefits : Illuminated white center with customizable text R65 approved light performance Extra flat and aerodynamic design Best in class manufacturer quality Ultra robust polycarbonate The STELLAR lightbar completes our range of... Read more

Data Sheet

Homologation certificate

Not all products are available in all markets.

Need some advices ? Any questions ? We call you back !

Name *

Email *

Telephone *

Zip code *

Country *

* Mandatory fields

All data provided to us is only used by our services, as part of your call request and any commercial relationship that may result (learn more).

Technical characteristics Similar products

Technical characteristics

Brand		CEA
Voltage		10/36 VDC
Consumption		150W at 12V / 280W at 24V
Color		Amber / Orange
Connector		5 m bare cable (right side of the vehicle)
Lens Material		Polycarbonate
Housing Material		Aluminium
Length		1250 mm
Width		280 mm
IP protection		IP6K9K
Operation Temperatures		-30°C to +60°C
Vibration Resistance		ISO16750-3
EMC		ECE R10 + CISPR 25 class 3
ECE		ECE R65 (TA1 or TB1)
SAE		SAE Class 1
Industry		Recovery vehicles, maintenance and intervention vehicles, garbage trucks, exceptional convoy trucks, agricultural convoys, municipals, sweepers...
