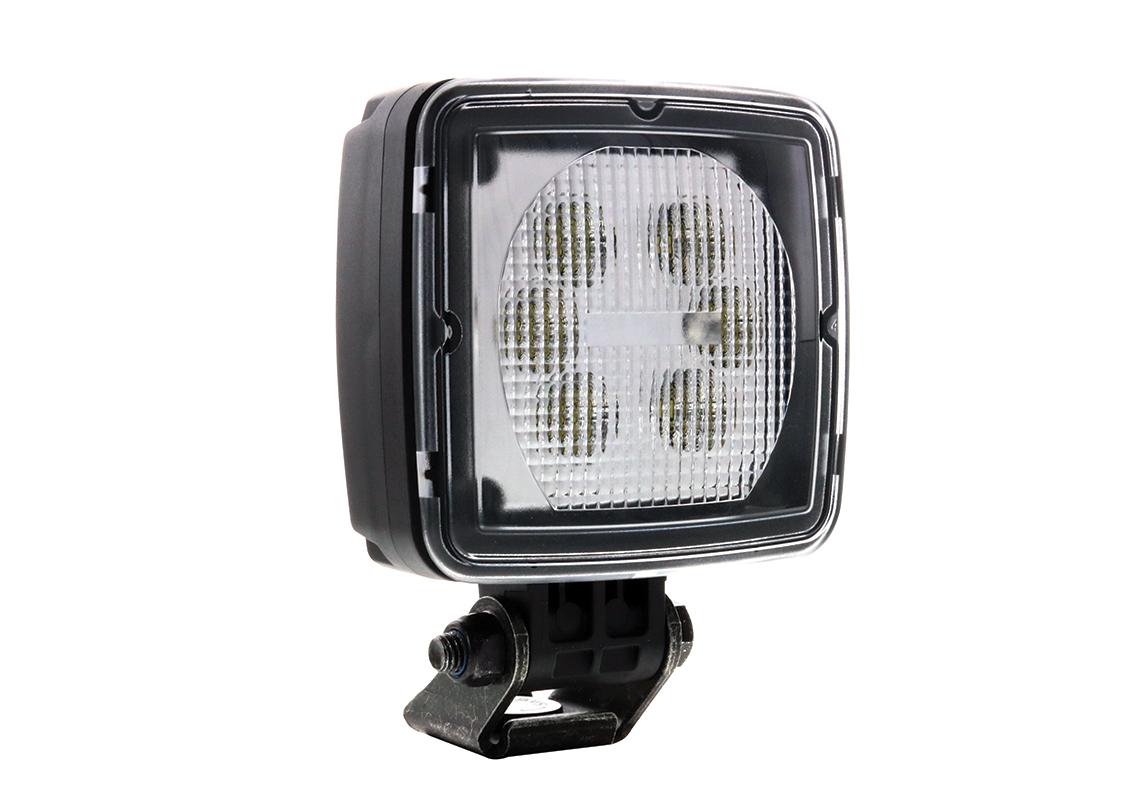

SL / SLA LED - LED compact work light 1500 Lumen
Ref. D14851 Show/hide other part numbers
- Ref. A0787A7108C3
- Ref. SL 1500 LED PC
Several configurations possible thanks to the different choices of lenses, light patterns ... As standard this work light includes features such as the EMC CISPR25 class 5 as well as the integrated load dump, to meet the most severe manufacturer...
Read more
- Voltage : 12/24V
- Operational Lumen : 1500 Lumen
- Connector : DT 2 pin
- Housing Material : Bi-material (plastic body and aluminum dissipator)
- Load Dump : 36V CONTINUOUS / ISO 7637-2 Pulse 5a
- EMC : ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5
Not all products are available in all markets.
Technical characteristics
| Brand | ABL | |
|---|---|---|
| Product Type | Work light | |
| Manufacturer | De Buf | |
| Voltage | 12/24V | |
| Source | LED | |
| Amperage | 0,85 AMP at 24V | |
| Consumption | 20W | |
| Operational Lumen | 1500 Lumen | |
| Color Temperature | 6000 K for crystal version | |

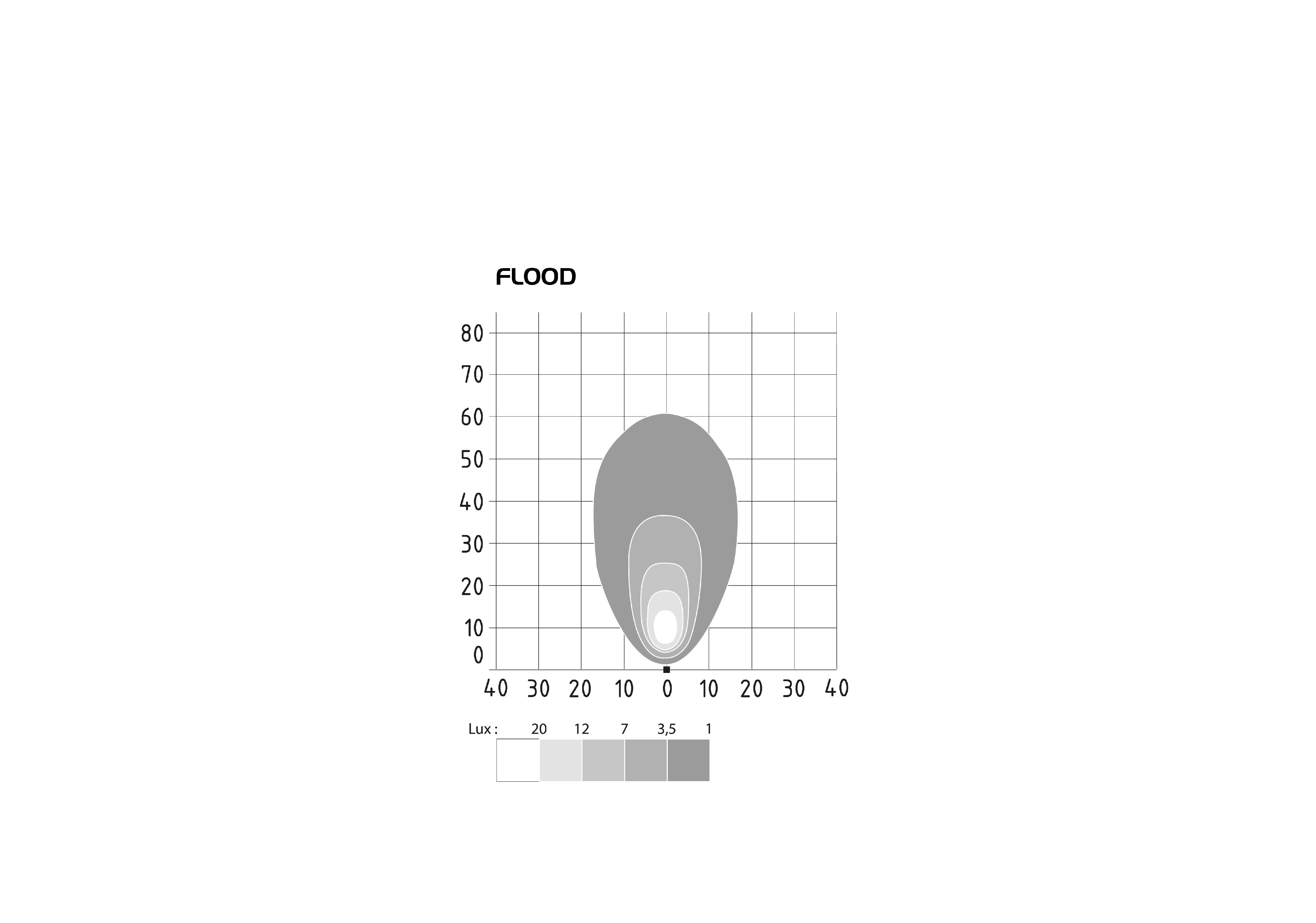

| Light pattern | Flood | |
| Color | Crystal | |
| Connector | DT 2 pin | |
| Mounting | Pedestal | |
| Lens Material | Polycarbonate plastic cover | |
| Housing Material | Bi-material (plastic body and aluminum dissipator) | |
| Shape | Square | |

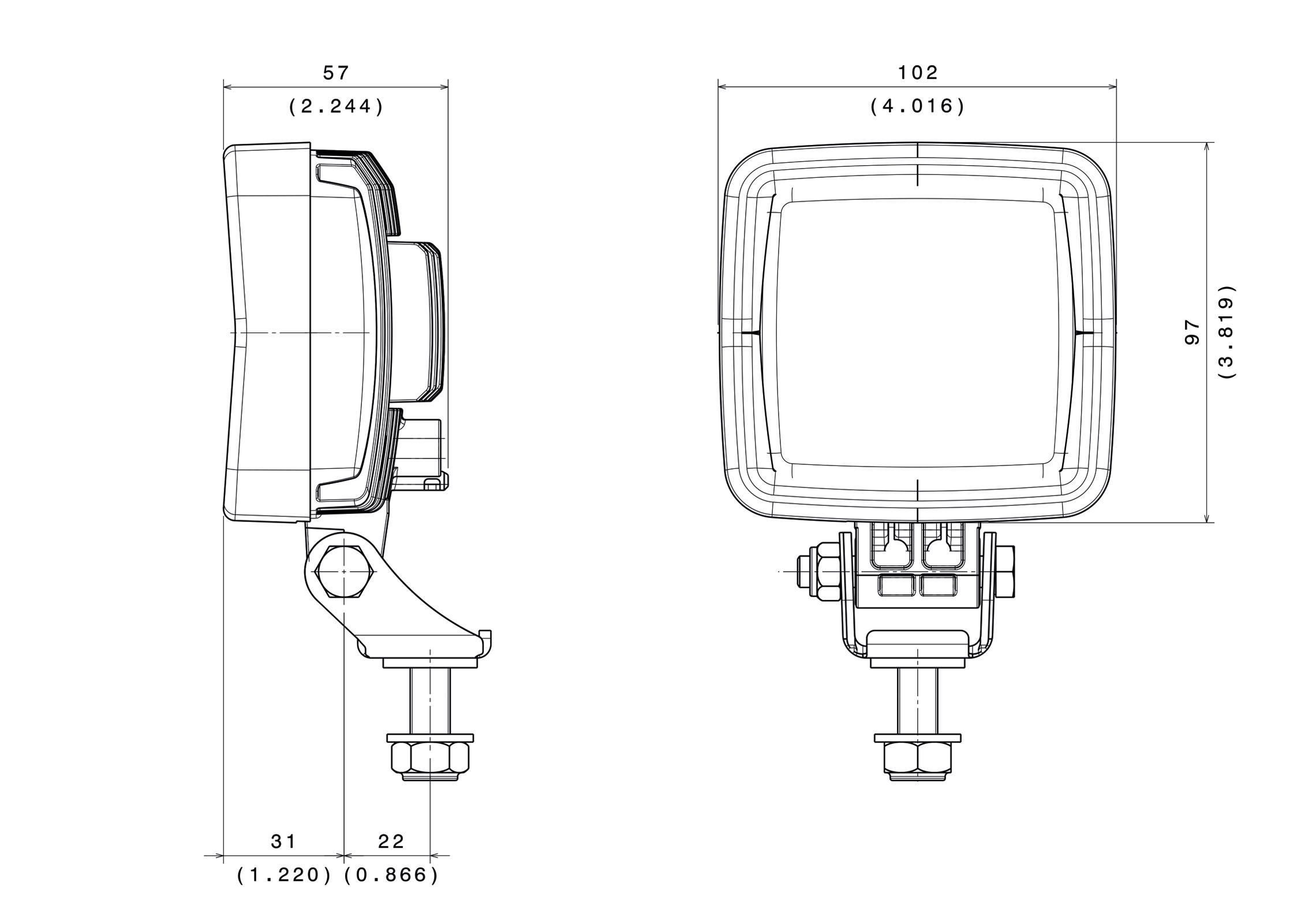

| Width | 102 mm | |
| Depth | 63 mm | |
| Height | 97 mm | |
| Weight | 0,5 Kg | |
| IP protection | IP68 - IP69K | |
| Polarity | Protected against reverse voltage | |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | |
| Operation Temperatures | -40°C to +85°C | |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | |
| Salt Spray Test | ISO 9227 | |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | |
| Shock resistance | 60G | |
| Lifetime | 30 000 operating hours | |
| EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 | |
| Industry | Agriculture, Construction, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
Applications
Construtor
Model
reference
Start date
End date
Construtor :
CATERPILLAR
Model :
TRACTOR
reference :
589-0465
Start date :
End date :
