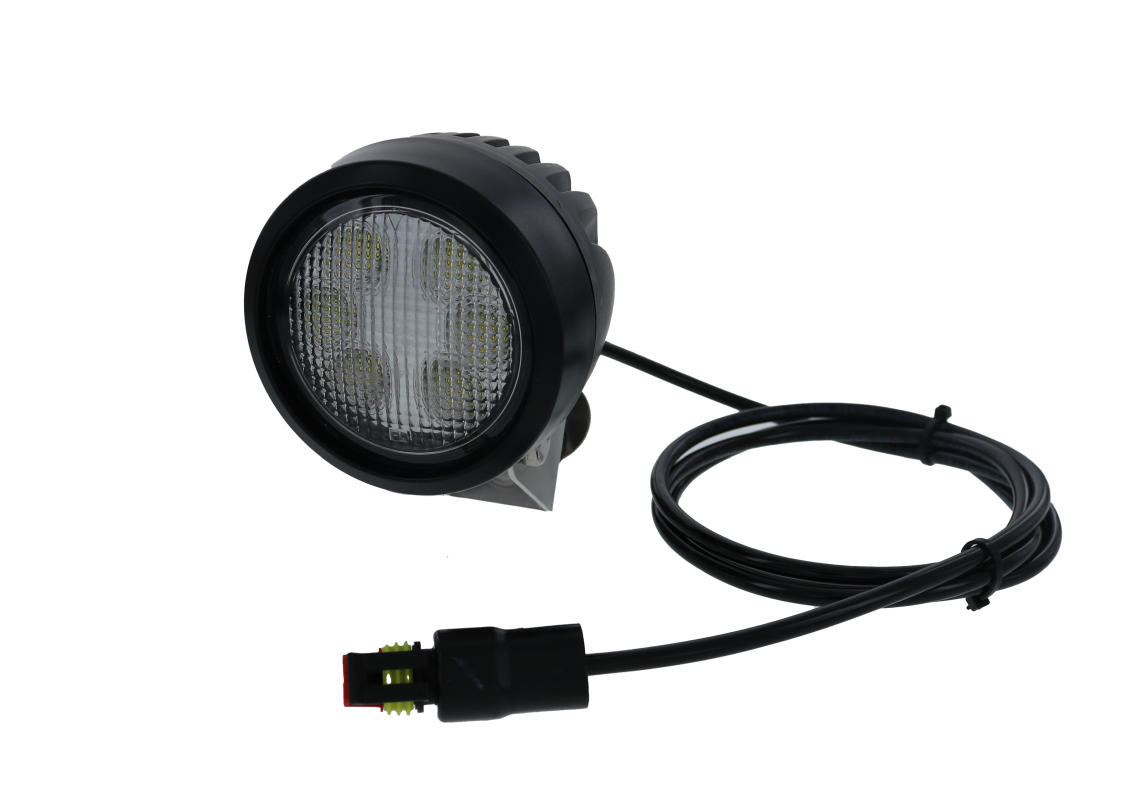

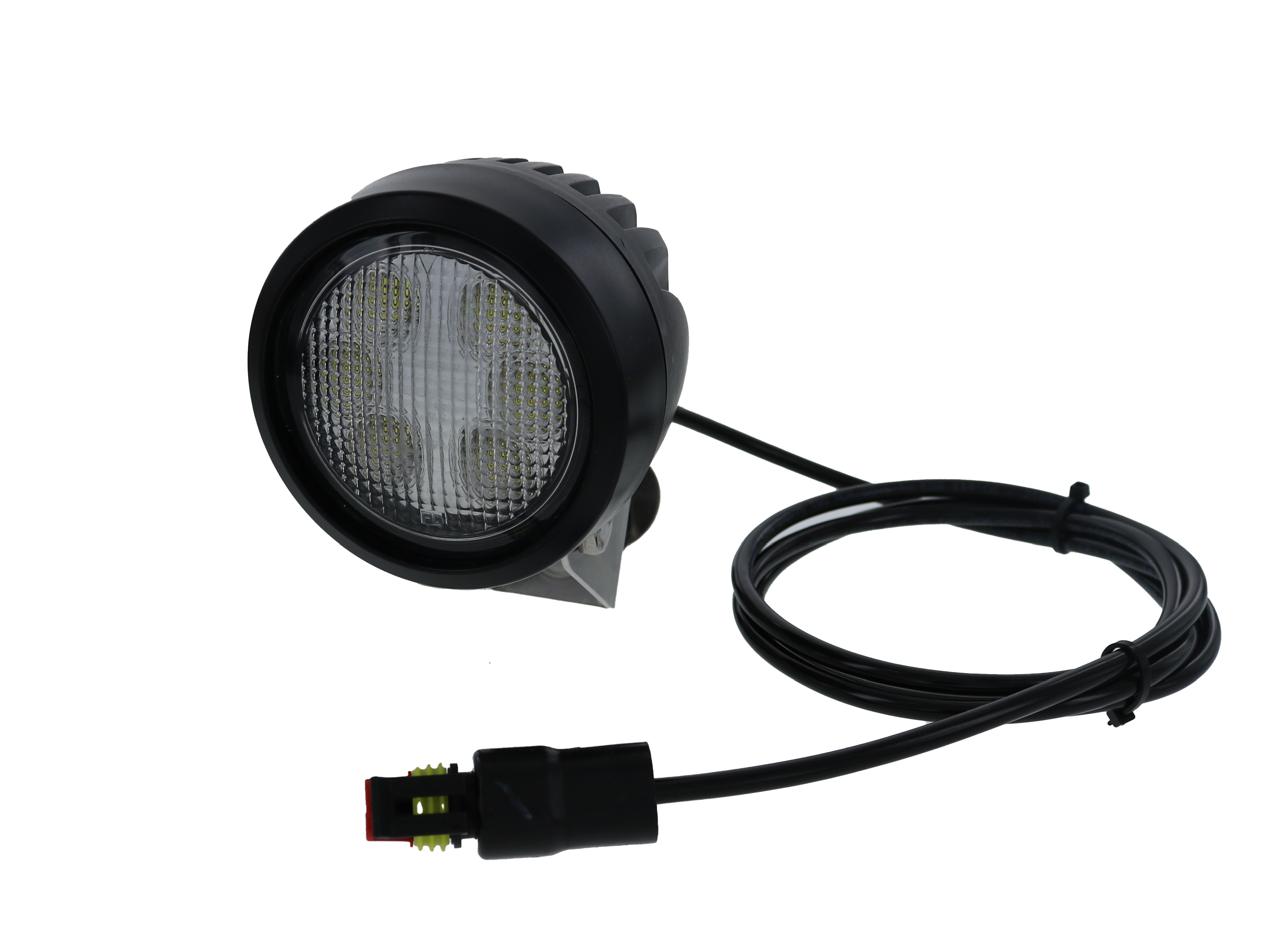

RL - RLA LED - LED compact work light 1500 Lumen, 1600mm cable with Superseal connector, R23
Ref. D16666 Show/hide other part numbers
- Ref. A0187A7767S0
Fixes and connects to the back of the LC12 LED or LCR19 rear lamp thanks to the 2 pin superseal connector.
Read more
- Voltage : 12/24 V
- Operational Lumen : 1500 Lumen
- Light pattern : R23 reverse approved
- Termination 1 : Superseal 2 pin female
- Housing Material : Bi-material (plastic body and aluminum dissipator)
- Load Dump : 36V CONTINUOUS / ISO 7637-2 Pulse 5a
- EMC : ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5
Not all products are available in all markets.
Technical characteristics
| Brand | ABL | |
|---|---|---|
| Voltage | 12/24 V | |
| Amperage | 0,85 AMP at 24V | |
| Consumption | 28W max at 28V | |
| Operational Lumen | 1500 Lumen | |
| Color Temperature | 6000 K for crystal version | |
| Light pattern | R23 reverse approved | |
| Color | Crystal | |
| Termination 1 | Superseal 2 pin female | |
| Mounting | Pedestal | |
| Lens Material | Polycarbonate | |
| Housing Material | Bi-material (plastic body and aluminum dissipator) | |
| Shape | Round | |
| Depth | 74 mm | |
| Diameter | 92 mm | |
| Height | 129 mm | |
| Weight | 0,55 Kg | |
| IP protection | IP6K9K | |
| Polarity | Protected against reverse voltage | |
| Operation Temperatures | -40°C to +85°C | |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | |
| Salt Spray Test | ISO 9227 | |
| Lifetime | 30 000 operating hours | |
| EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 | |
| Industry | Agriculture, Construction, Handling and Forklifts, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
Applications
Construtor
Model
reference
Start date
End date
Construtor :
SCHMITZ
Model :
TRAILERS
reference :
1541713
Start date :
End date :
