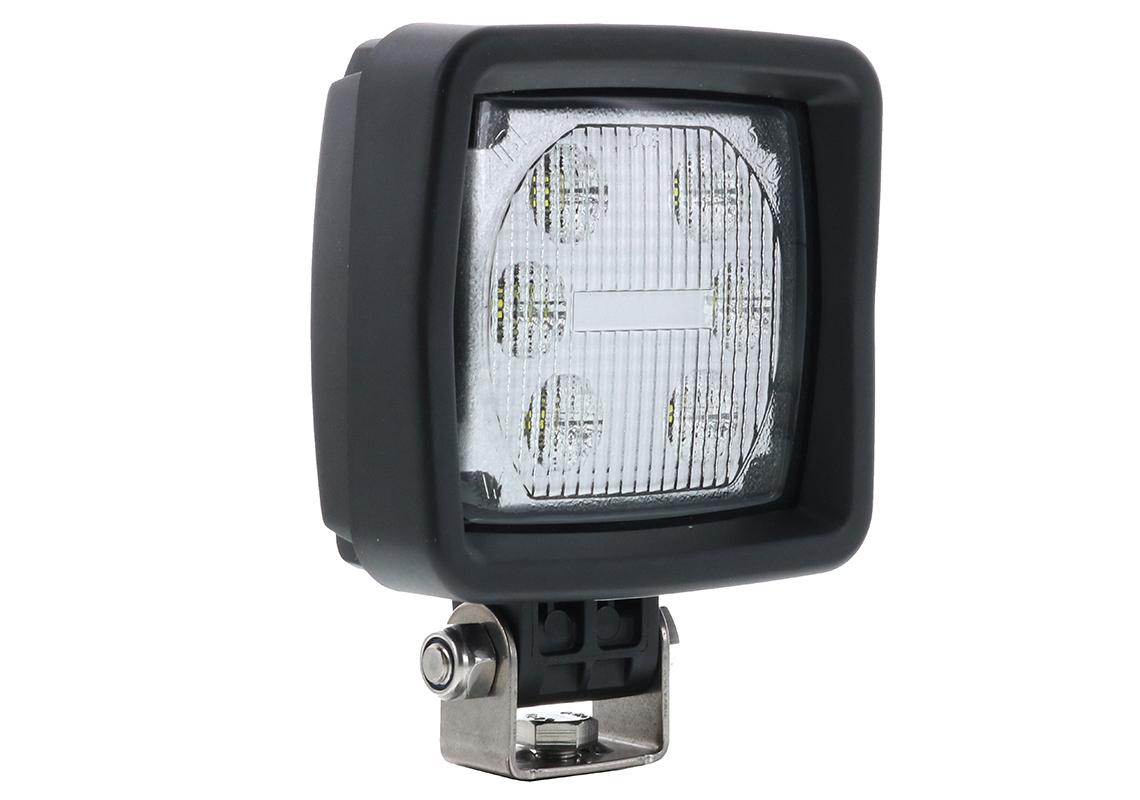

SL-RL / ST-RT / SLA-RLA LED - LED R23 reverse homologated work light 1000 Lumen

Ref. SL 1000 LED See other part numbers >

  • Ref. D14857
LED
EMC
ip68
IP69K
R23
Latest generation LED work light with R23 reverse approval.
As standard this work light includes features such as the EMC CISPR25 class 5 as well as the integrated load dump, to meet the most severe manufacturer specifications.
  • Voltage : 12 - 24V
  • Operational Lumen : 1000 Lumen
  • Connector : AMP 2 pin, DT 2 pin
  • Load Dump : 36V CONTINUOUS / ISO 7637-2 Pulse 5a
  • EMC : ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5
Not all products are available in all markets.

Need some advices ? Any questions ? Let us call you back !

All data provided to us is only used by our services, as part of your call request and any commercial relationship that may result (learn more).
Brand ABL
Product Type Reverse work light
Industry Agriculture, Construction, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab
Reference detail D14857 (Crystal, R23 reverse, Hardened glass lens)
Voltage 12 - 24V
Source LED
Consumption 14W
Amperage 0,58 AMP at 24V
Operational Lumen 1000 Lumen
Color Temperature 6000°K for crystal version
Light pattern R23 reverse approved
Connector AMP 2 pin, DT 2 pin
Color Crystal - Amber (hardened glass, plastics); Amber - Red - Blue - Diffused white (plastics)
Mounting Pedestal, suspended
Lens Material Hardened glass, plastic cover lens, plastic lens
Shape Square
Length 101 mm
Depth 57 mm
Height 97 mm
Weight 0,45 Kg
IP protection IP68 - IP69K
Polarity Protected against reverse voltage
Electronic Thermal Management Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant
Operation Temperatures -40°C to +85°C
Load Dump 36V CONTINUOUS / ISO 7637-2 Pulse 5a
Salt Spray Test ISO 9227
Vibration Resistance 15 Grms, from 24Hz to 2000Hz
Shock resistance 60G
Lifetime 30 000 operating hours
EMC ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5
