SL / SLA LED - LED compact work light FLA 2000 Lumen

Ref. A0787A725200 Show/hide other part numbers

  • Ref. SLA 2000 LED FLA
LED compact work light FLA 2000 Lumen
LED compact work light FLA 2000 Lumen
LED compact work light FLA 2000 Lumen
LED compact work light FLA 2000 Lumen
LED compact work light FLA 2000 Lumen
As standard this work light includes features such as the EMC CISPR25 class 5 as well as the integrated load dump, to meet the most severe manufacturer specifications. Read more
  • Voltage : 12/24 V
  • Operational Lumen : 2000 Lumen

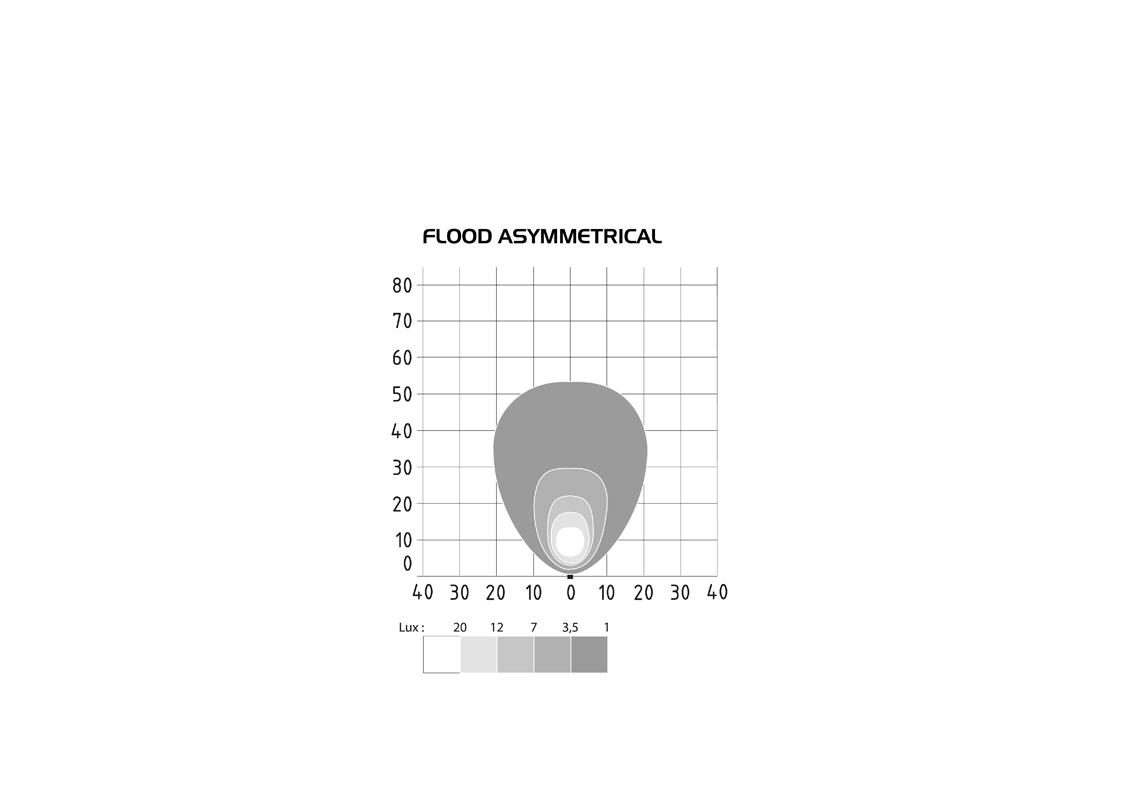

  • Light pattern : Flood Asymmetrical
  • Connector : DT 2 pin
  • Load Dump : 36V CONTINUOUS / ISO 7637-2 Pulse 5a
  • EMC : ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5
Not all products are available in all markets.

Need some advices ? Any questions ?  We call you back !

* Mandatory fields

Brand ABL
Product Type Work light
Voltage 12/24 V
Source LED
Amperage 1,2 AMP at 24V
Consumption 29W
Operational Lumen 2000 Lumen
Color Temperature 6000 K for crystal version
Light pattern Flood Asymmetrical
Color Crystal
Connector DT 2 pin
Mounting Pedestal
Fixation To be screwed
Lens Material Hardened glass
Housing Material Aluminium
Shape Square
Width 102 mm
Depth 63 mm
Height 97 mm
Weight 0,55 Kg
IP protection IP68 - IP69K
Polarity Protected against reverse voltage
Electronic Thermal Management Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant
Operation Temperatures -40°C to +85°C
Load Dump 36V CONTINUOUS / ISO 7637-2 Pulse 5a
Salt Spray Test ISO 9227
Vibration Resistance 15 Grms, from 24Hz to 2000Hz
Shock resistance 60G
Lifetime 30 000 operating hours
EMC ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5
Industry Agriculture, Construction, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab

As standard this work light includes features such as the EMC CISPR25 class 5 as well as the integrated load dump, to meet the most severe manufacturer specifications.
