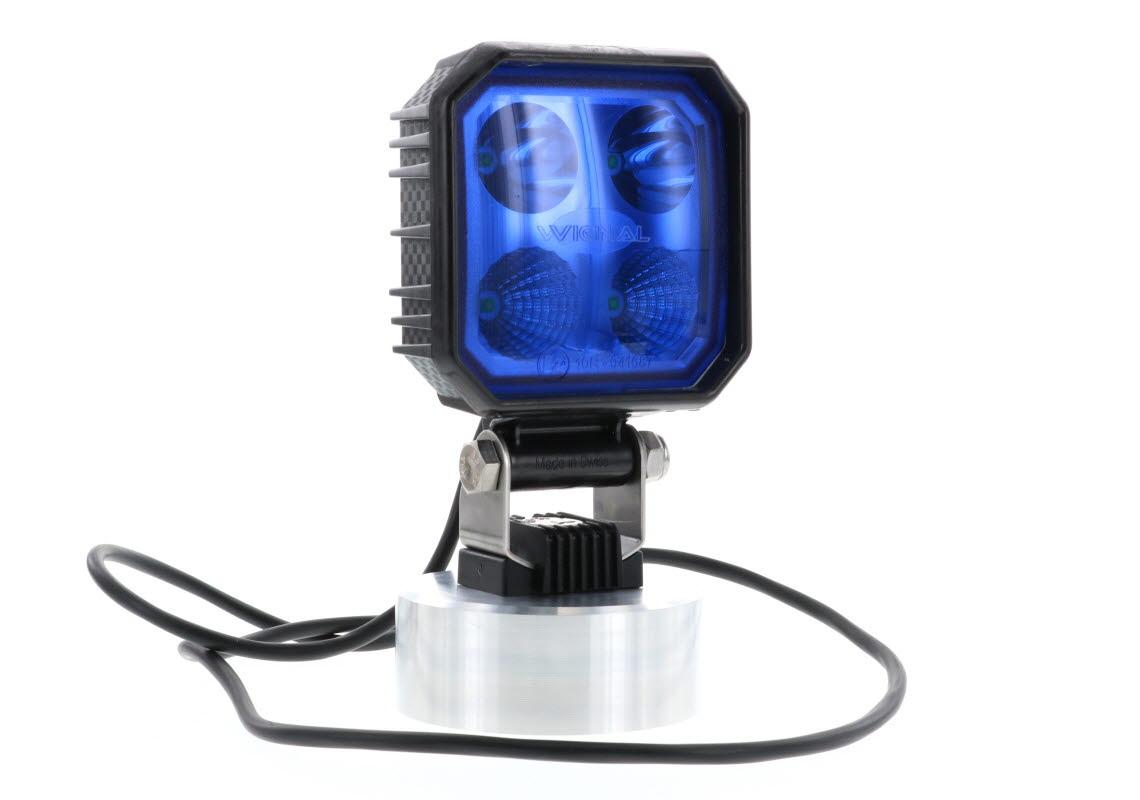

CARBONLUX - Work light LED square 90X90mm - cable - light bleu
Ref. D14553 Show/hide other part numbers
- Ref. 29.63.L0A.C0V
- Ref. 29.63.L0A.S00
Work light LED square bleu cable
Read more
- Voltage : 10 - 30V
- Source : LED
- Consumption : 9W
- Theoretical Lumen : 1000 Lumen
- Connector : Naked cable extremity
Not all products are available in all markets.
Technical characteristics
| Brand | CEA |
|---|---|
| Voltage | 10 - 30V |
| Source | LED |
| Consumption | 9W |
| Theoretical Lumen | 1000 Lumen |
| Light pattern | Wide flood |
| Color | Blue |
| Connector | Naked cable extremity |
| Fixation | M10 bolt |
| Lens Material | Polycarbonate |
| Housing Material | Mineralized resins - CARBON |
| Shape | Square |

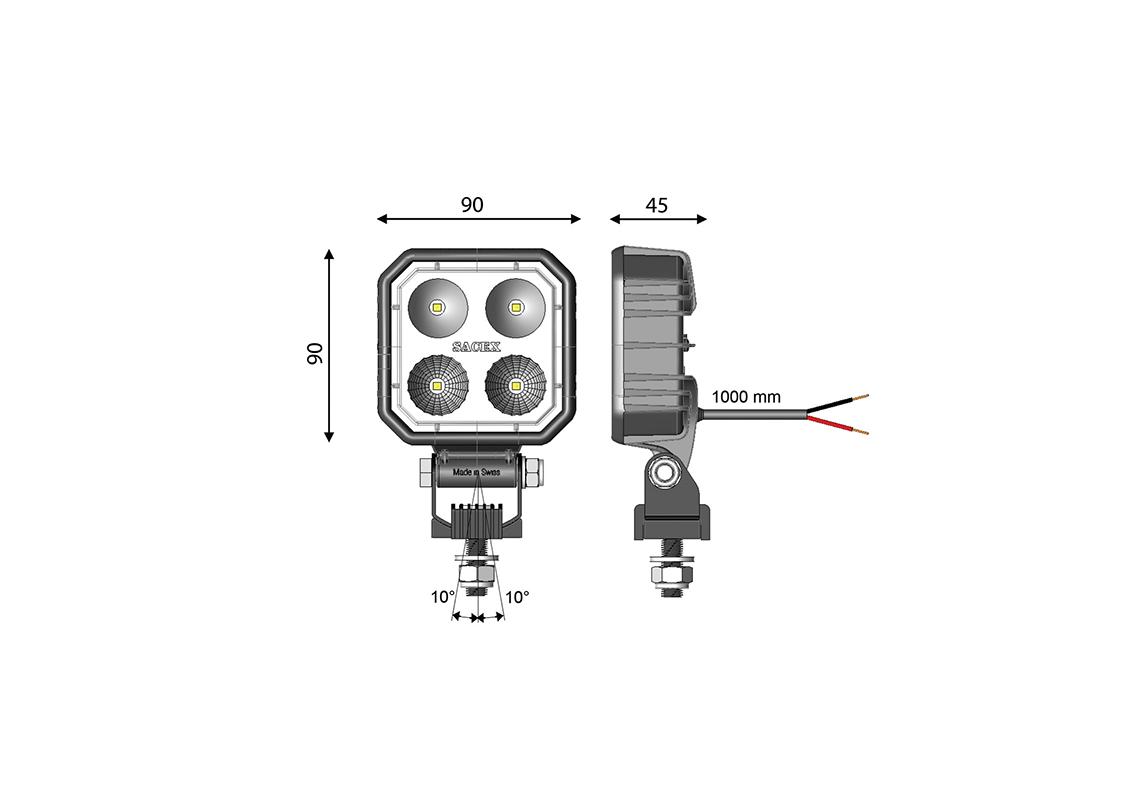

| Length | 90 mm |
| Width | 90 mm |
| Depth | 45 mm |
| Weight | 0,34 Kg |
| IP protection | IP69K |
| Polarity | Protected against reverse voltage |
| Operation Temperatures | -30°C to +50°C |
| EMC | ECE R10 |
| Industry | Agriculture, Construction, Forestry, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
