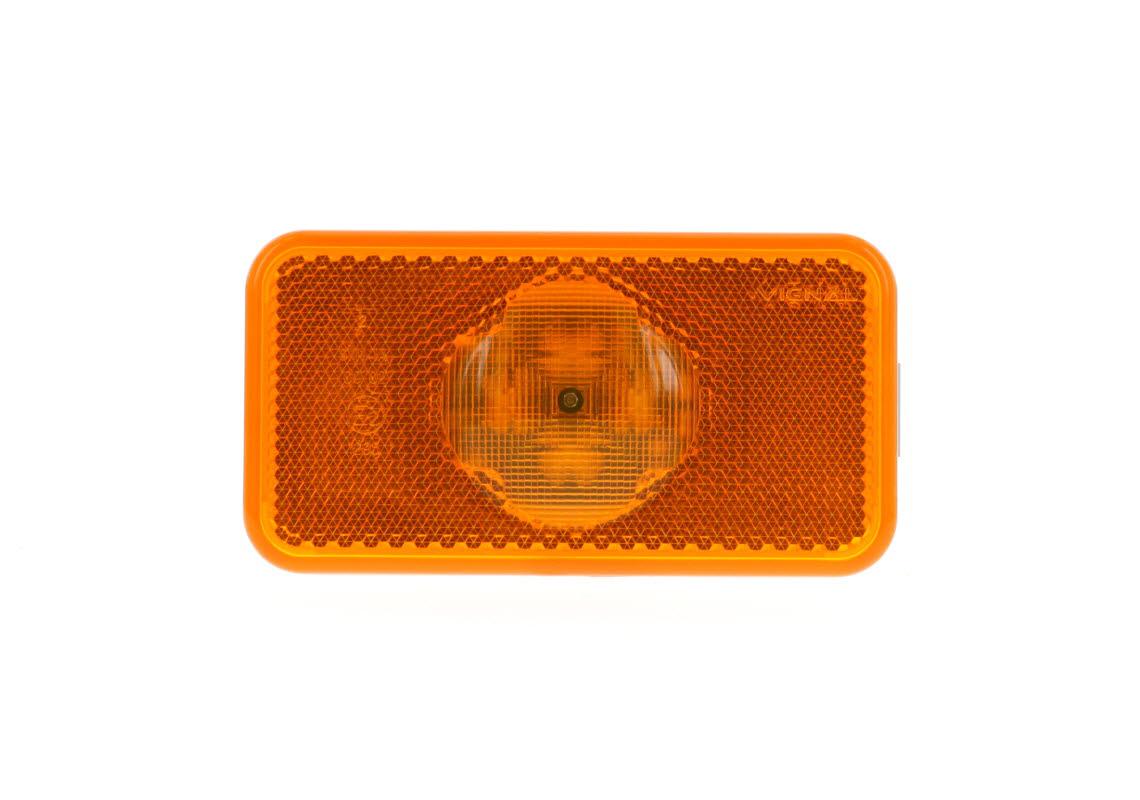

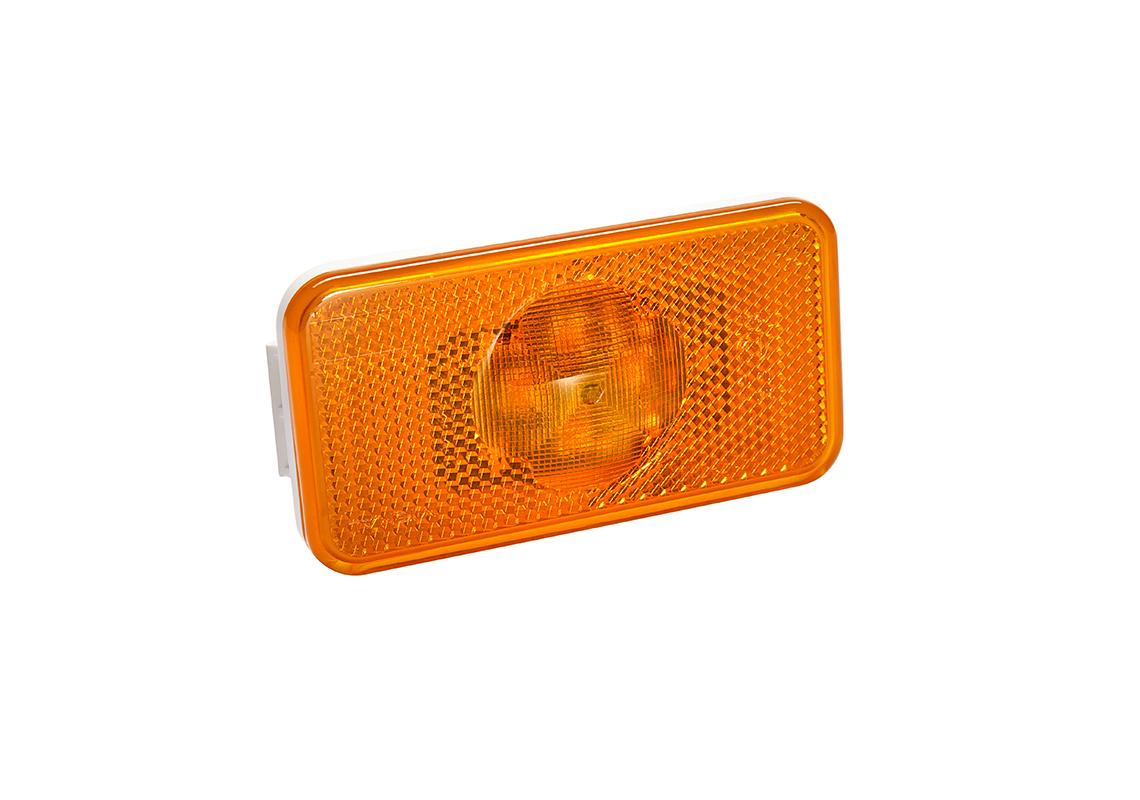

SMD00 LED - Side marker lamp LED 24V amber Renault Trucks, Volvo Trucks
Ref. 198620 Show/hide other part numbers
- Ref. SMD 00 DKR
- Ref. 82392733
- Ref. 7482392733
- Ref. 23387844
Standard side marker lamp SMD00, white housing, PMMA lens.
Read more
- Voltage : 24V
- Source : LED
- Color : Amber / Orange
- Connector : AMP MCP 2.8 2 pin
- Mounting Direction : Horizontal+Vertical
Not all products are available in all markets.
Technical characteristics
| Brand | Vignal | |
|---|---|---|
| Manufacturer | Renault Trucks, Volvo Trucks | |
| Voltage | 24V | |
| Source | LED | |
| Color | Amber / Orange | |
| Connector | AMP MCP 2.8 2 pin | |
| Mounting Direction | Horizontal+Vertical | |
| Lens Material | PMMA | |
| Shape | Rectangle | |

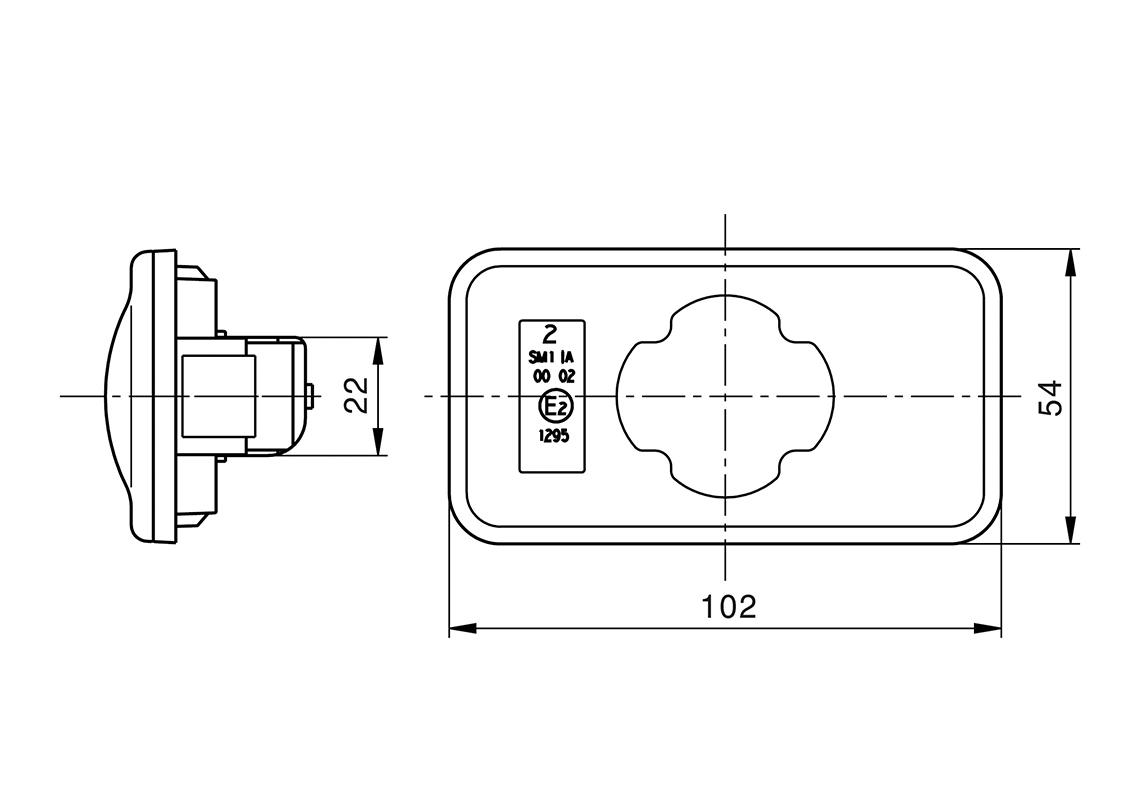

| Length | 102 mm | |
| Width | 54 mm | |
| Main Functions | Side position | |
| Specific Functions | Reflector | |
| ADR | ADR | |
| ECE | E2 1295 | |
| CCC | CCC | |
| Industry | Agriculture, Construction, Forestry, Handling and Forklifts, Mining, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
Applications
Construtor
Model
reference
Start date
End date
Construtor :
RENAULT TRUCKS
Model :
EURO 6 - T/ K /C --> 520 CH
reference :
7482392733
Start date :
11/2013
End date :
Construtor :
VOLVO
Model :
FL-FM-FH
reference :
82392733
Start date :
2001
End date :
Construtor :
MAISONNEUVE
Model :
MAISONNEUVE
reference :
Start date :
End date :
Construtor :
VOLVO
Model :
FL-FM-FH
reference :
23387844
Start date :
01/10/2018 13:52
End date :
