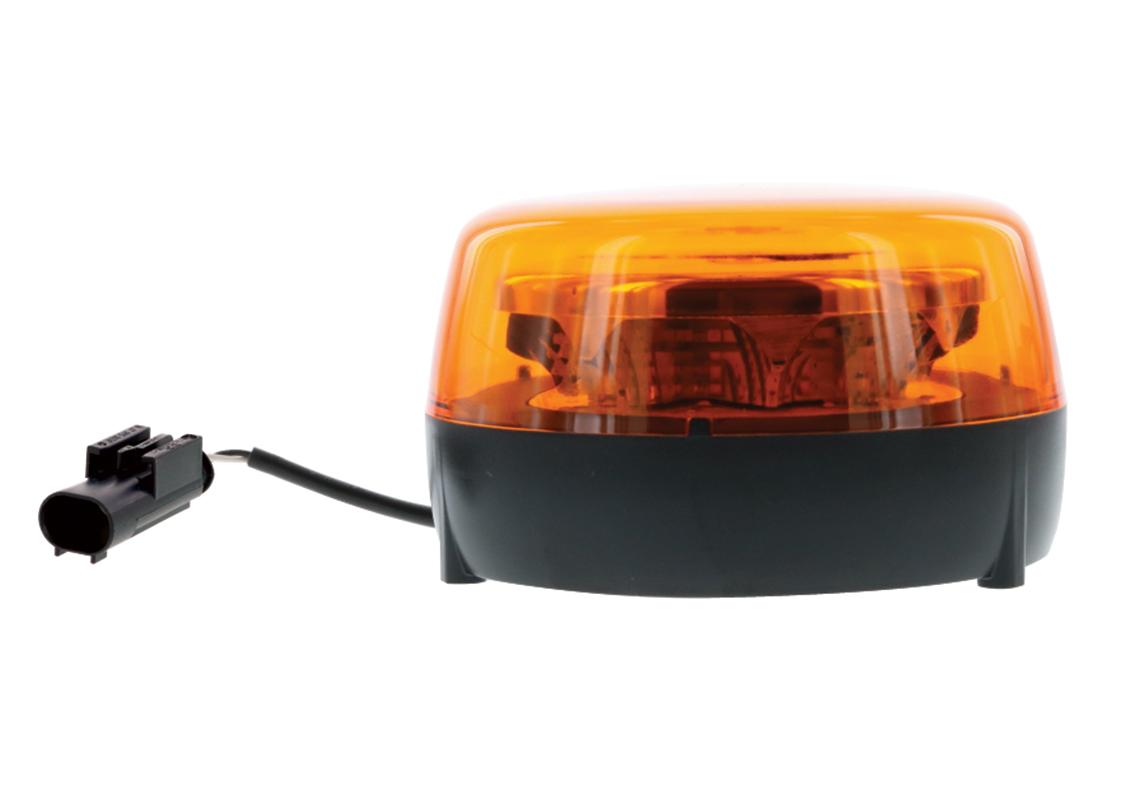

ATLAS LED - ATLAS LED Beacon 3 screws rotating light amber MERCEDES
Ref. 212710 Show/hide other part numbers
- Ref. A9608200258
- Ref. A9608200358
The ATLAS LED beacon meets the high requirements of the manufacturer’s specifications.
Special attention has been paid to the thermal management of LEDs to ensure optimum service life and operation in the most extreme situations.
The connector...
Read more
- Manufacturer : Mercedes
- Voltage : 9/32V
- Source : LED
- Consumption : 11W
- Color : Amber / Orange
- Connector : MQS 2 pins male
- Fixation : 3 vis on Ø 130mm (DIN 14620)
- Flash Patterns : Rotative
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Manufacturer | Mercedes | |
| Voltage | 9/32V | |
| Source | LED | |
| Consumption | 11W | |
| Color | Amber / Orange | |
| Connector | MQS 2 pins male | |
| Fixation | 3 vis on Ø 130mm (DIN 14620) | |
| Lens Material | Polycarbonate | |
| Diameter | 140 mm | |
| Height | 82 mm | |
| Weight | 0,45 Kg | |
| Flash Patterns | Rotative | |
| IP protection | IP69K | |
| Polarity | Protected against reverse voltage | |
| Operation Temperatures | -40°C to +80°C | |
| EMC | CISPR25 Class 5, ECE R10 | |
| ECE | ECE R65 | |
| Industry | Trucks |
Applications
Construtor
Model
reference
Start date
End date
Construtor :
MERCEDES
Model :
ACTROS
reference :
A 960 820 02 58 - A 960 820 03 58
Start date :
08/2020
End date :
D14454
GOUTTE D'EAU - Beacon magnetic amber with ampoule H1- 12V
D14756
PEGASUS LED - LED Beacon to be screwed 3 functions (rotating,...
D14754
GALAXY LED - LED Beacon magnetic 1 suction pad flash light...
D14494
GALAXY LED - LED Beacon magnetic 1 suction pad flash light...
D14725
PEGASUS LED - LED Beacon FLEXY AUTOBLOK, rotating, amber
D14755
GALAXY LED - LED Beacon magnetic 1 suction pad ROLL CABLE...
D14565
Beacon accessories - Bulb H21W 12V BAY9s
D16153
E-VENUS - LED ecological beacon magnetic 1 suction pad...
212520
ATLAS LED - ATLAS LED Beacon magnetic pole mounting...
212010
ATLAS LED - ATLAS LED Beacon 3 screws rotating light amber...
D14496
GALAXY LED - Lens for beacon Galaxy LED flash
The ATLAS LED beacon meets the high requirements of the manufacturer’s specifications.
Special attention has been paid to the thermal management of LEDs to ensure optimum service life and operation in the most extreme situations.
The connector and adapter support are available at the original dealer.
