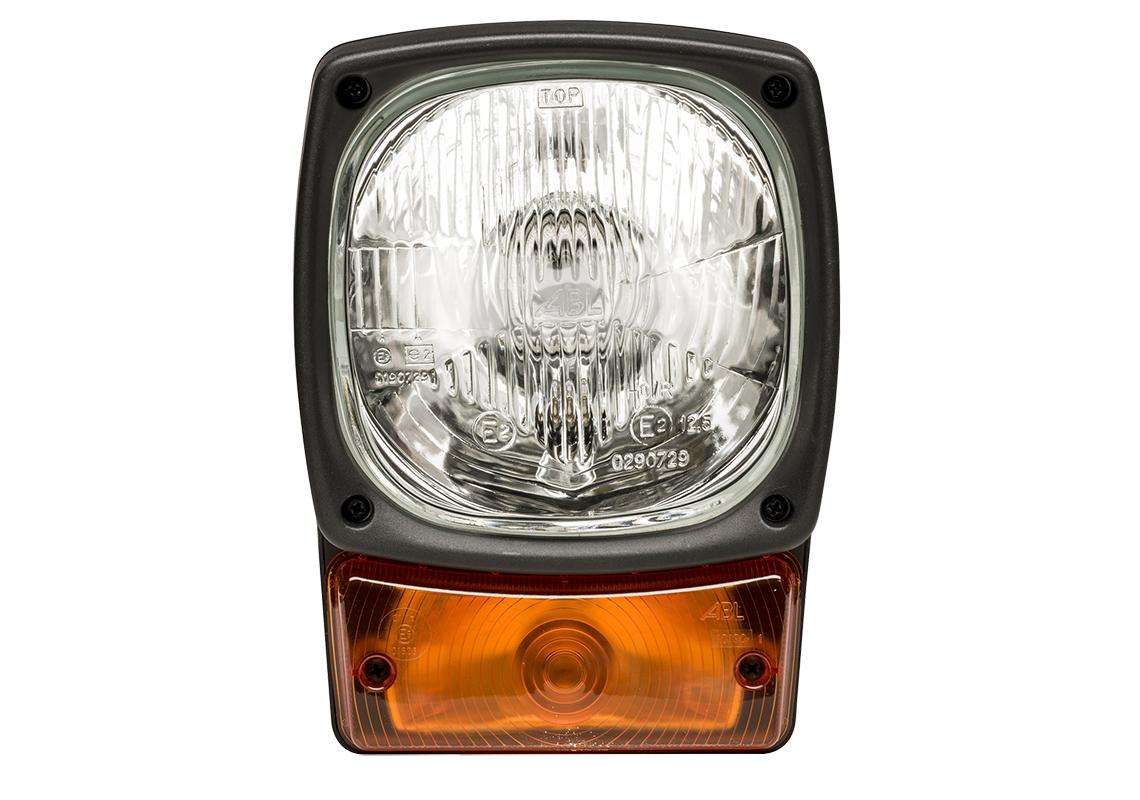

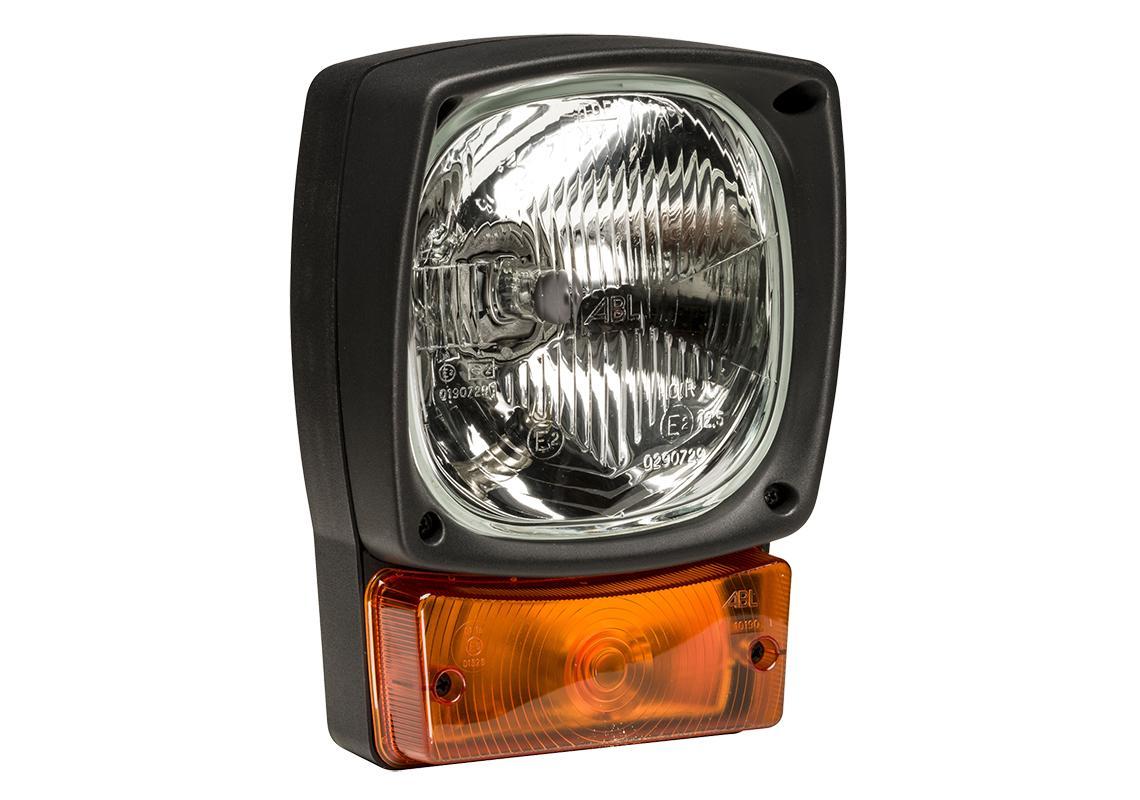

3005 H4 - Driving light right ECE HALOGEN 12/24V
Ref. 3005H4RANGE RHT
- Voltage : 12/24 V
- Source : HALOGEN
- Bulb : H4, P21, T8
- Amperage : 2,92 AMP at 24V (low beam)
Not all products are available in all markets.
Technical characteristics
| Brand | ABL | |
|---|---|---|
| Product Type | Work light Halogen | |
| Voltage | 12/24 V | |
| Source | HALOGEN | |
| Bulb | H4, P21, T8 | |
| Amperage | 2,92 AMP at 24V (low beam) | |
| Mounting | rear swivel | |
| Side | Right | |
| Lens Material | Glass | |
| Housing Material | Black fibre reinforced plastic | |

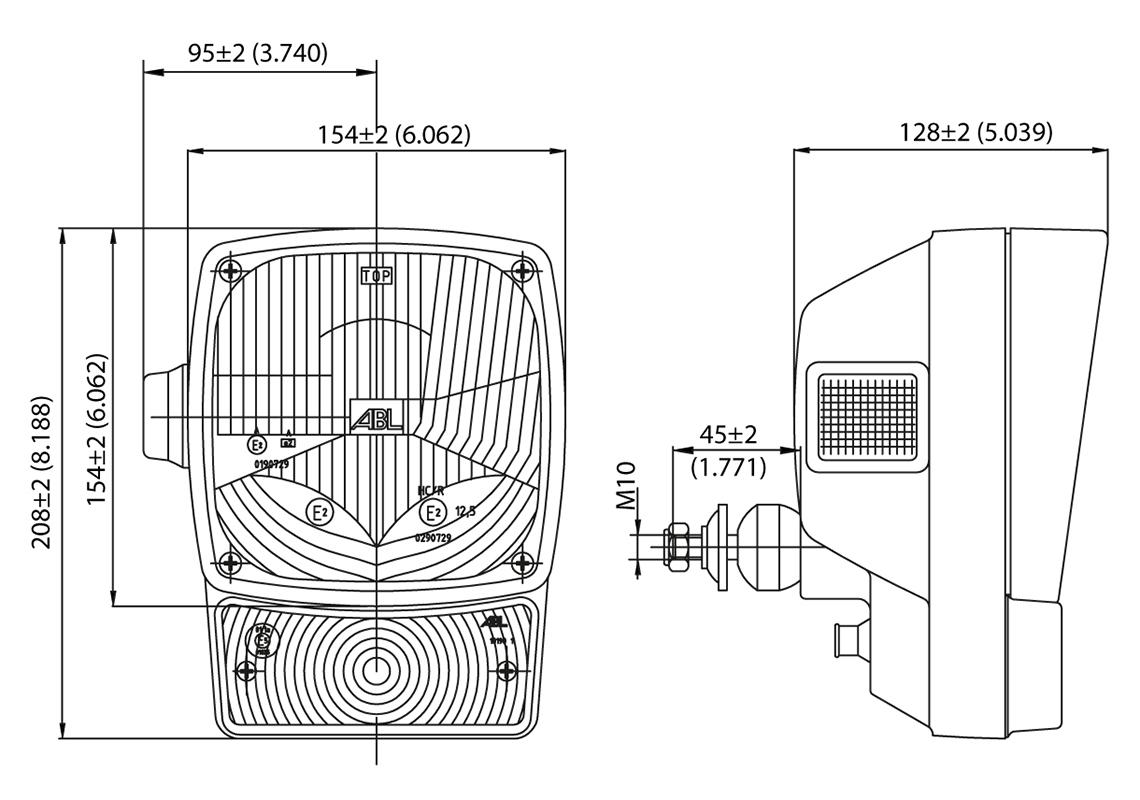

| Length | 154 mm | |
| Depth | 128 mm | |
| Height | 208 mm | |
| Operation Temperatures | -40°C to +85°C | |
| Salt Spray Test | ISO 9227 | |
| ECE | ECE | |
| Industry | Agriculture, Construction, Forestry, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
