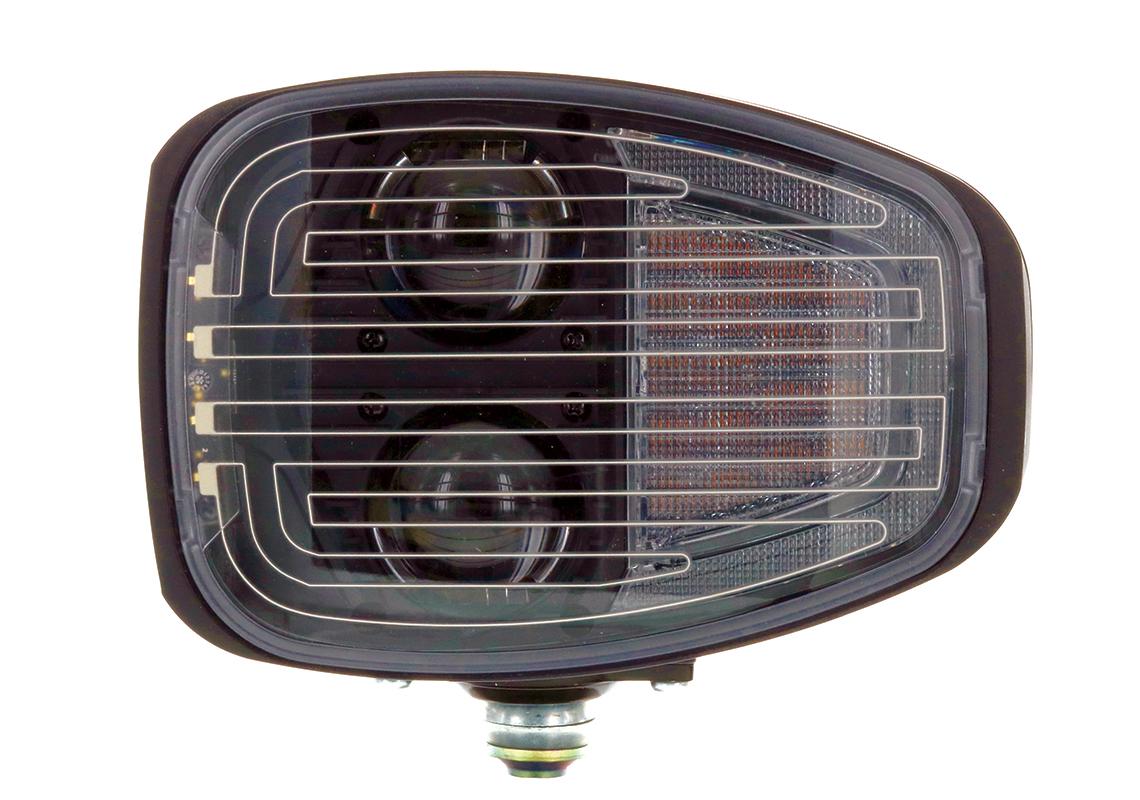

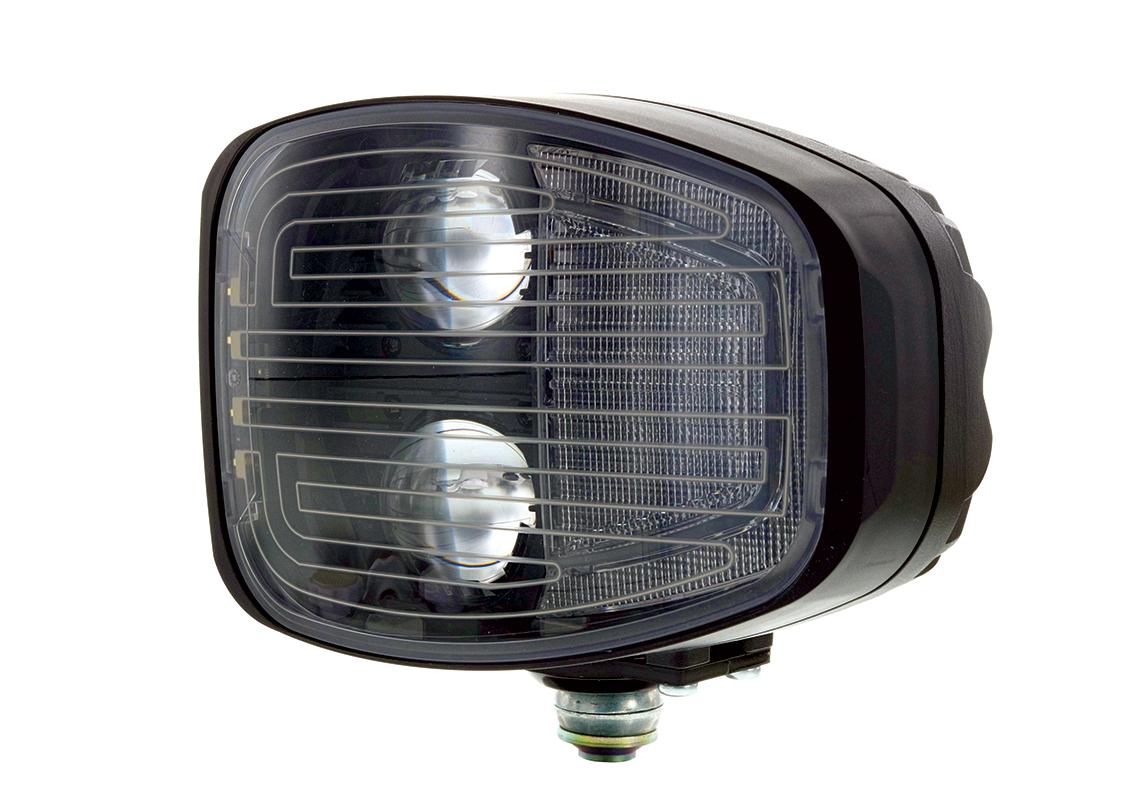

CHL 2 LED - Driving light left ECE LED 12/24V de-icing
Ref. D14964 Show/hide other part numbers
- Ref. A0831A7332A4
- Ref. CHL 2 LED ECE LH
New full LED OE approved headlamp Benefits:
Extra wide angle
Outstanding light performance
Active and autonomous de-icing system
Vibration resistant
Plug and play with former halogene or LED products
Universal solution for heavy...
Read more
- Voltage : 12/24 V
- Source : LED
- Consumption : At 24V : Low beam 30 W / Low beam + De-icing 50 W / High beam 60 W / High beam + De-icing 80 W / Turn indicator 16 W / Position light 5 W
- Connector : DT 6 pin
- Lens Material : Polycarbonate - built-in thermal de-icing
Not all products are available in all markets.
Technical characteristics
| Brand | ABL | |
|---|---|---|
| Voltage | 12/24 V | |
| Source | LED | |
| Consumption | At 24V : Low beam 30 W / Low beam + De-icing 50 W / High beam 60 W / High beam + De-icing 80 W / Turn indicator 16 W / Position light 5 W | |
| Connector | DT 6 pin | |
| Mounting | Pedestal | |
| Side | Left | |
| Lens Material | Polycarbonate - built-in thermal de-icing | |
| Length | 240 mm | |
| Depth | 126 mm | |
| Height | 164 mm | |
| Specific Functions | Active and autonomous de-icing | |
| IP protection | IP68 - IP69K | |
| Polarity | Protected against reverse voltage | |
| Electronic Thermal Management | Protected against overheating | |
| Operation Temperatures | -40°C to +85°C | |
| Load Dump | 36V CONTINUOUS/ 58V 300ms/ 1800V 50µs | |
| Salt Spray Test | ISO 9227 | |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | |
| Shock resistance | 60G | |
| Warranty | 30 000 operating hours or 5 years | |
| EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 | |
| ECE | ECE | |
| Industry | Agriculture, Construction, Forestry, Handling and Forklifts, Trucks |
