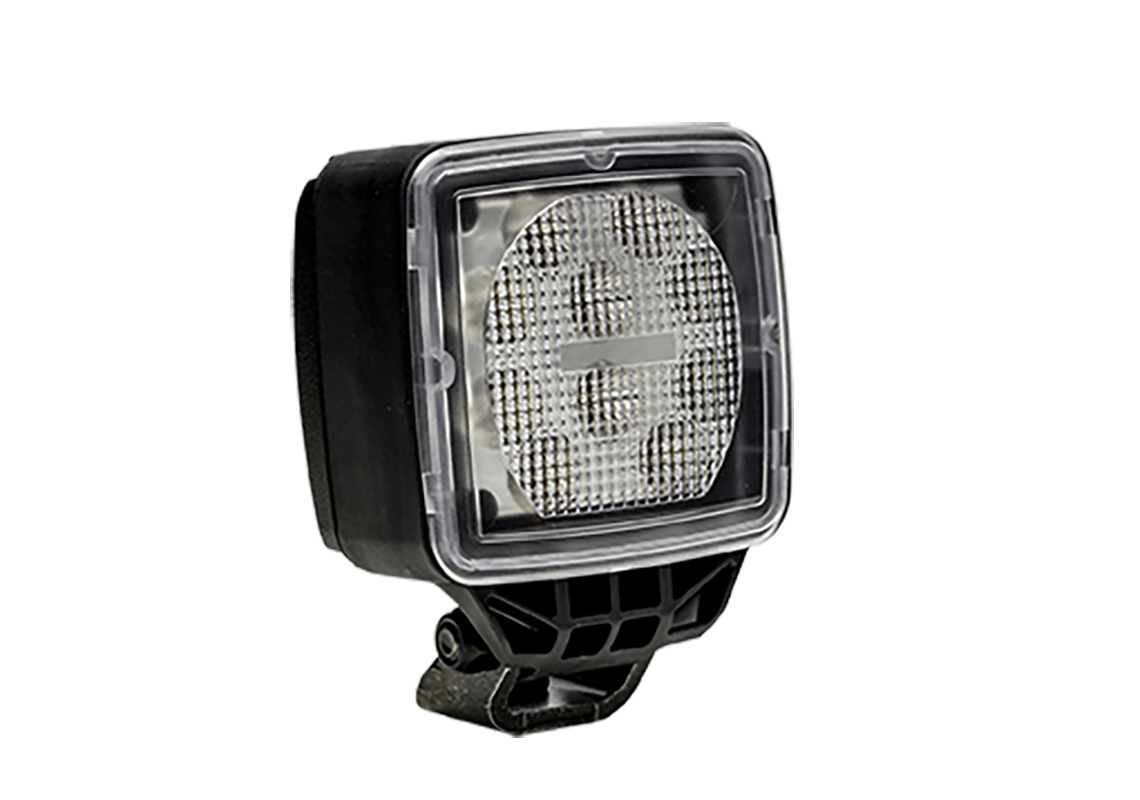

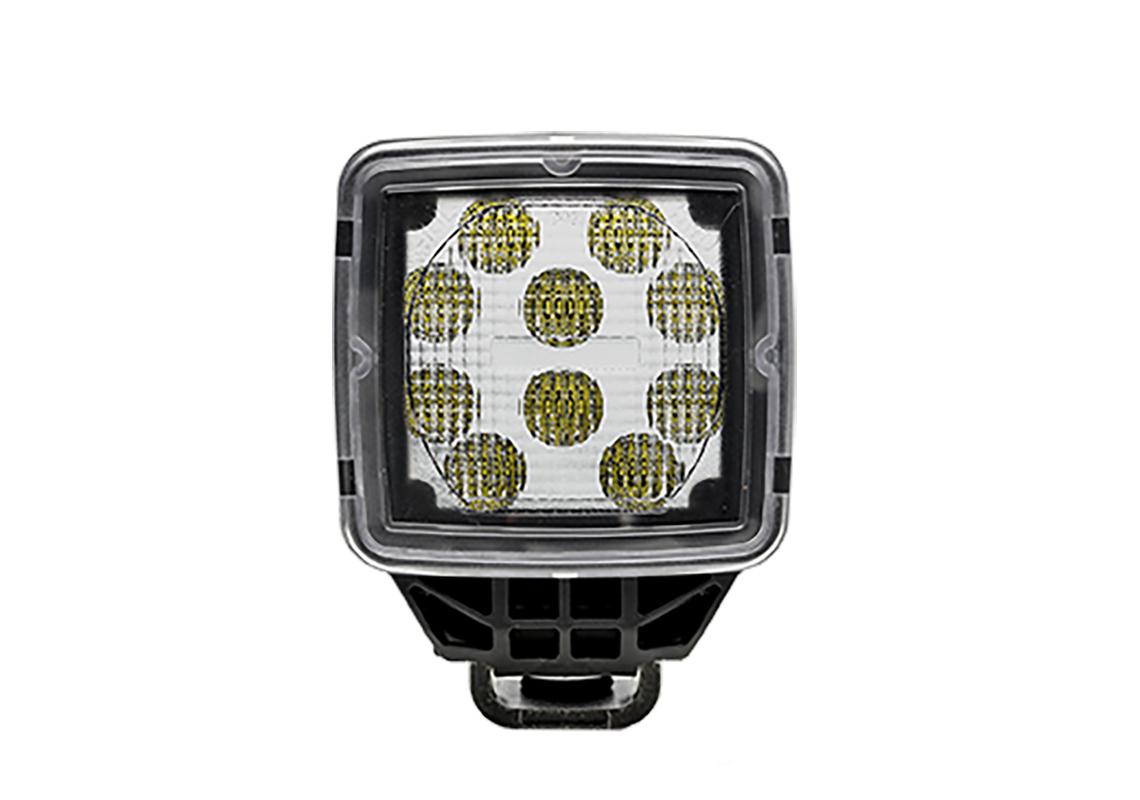

ST 2000 LED - Work light Compact LED 12/24V Flood plastic cover

Ref. ST2000LEDRANGE_FL_PC Show/hide other part numbers

  • Ref. D14631
  • Ref. A0787A691400
Work light Compact LED 12/24V Flood plastic cover
Work light Compact LED 12/24V Flood plastic cover
Work light Compact LED 12/24V Flood plastic cover
Work light Compact LED 12/24V Flood plastic cover
  • Voltage : 12/24 V
  • Source : LED
  • Amperage : 0,92 AMP at 24V
  • Consumption : 22W
  • Operational Lumen : 2000 Lumen
  • Connector : AMP 2 pin, DT 2 pin
Not all products are available in all markets.

Need some advices ? Any questions ?  We call you back !

* Mandatory fields

Brand ABL
Product Type Work light
Reference detail D14631 (crystal, polycarbonate, DT 2 pins)
Voltage 12/24 V
Source LED
Amperage 0,92 AMP at 24V
Consumption 22W
Operational Lumen 2000 Lumen
Color Temperature 6000 K

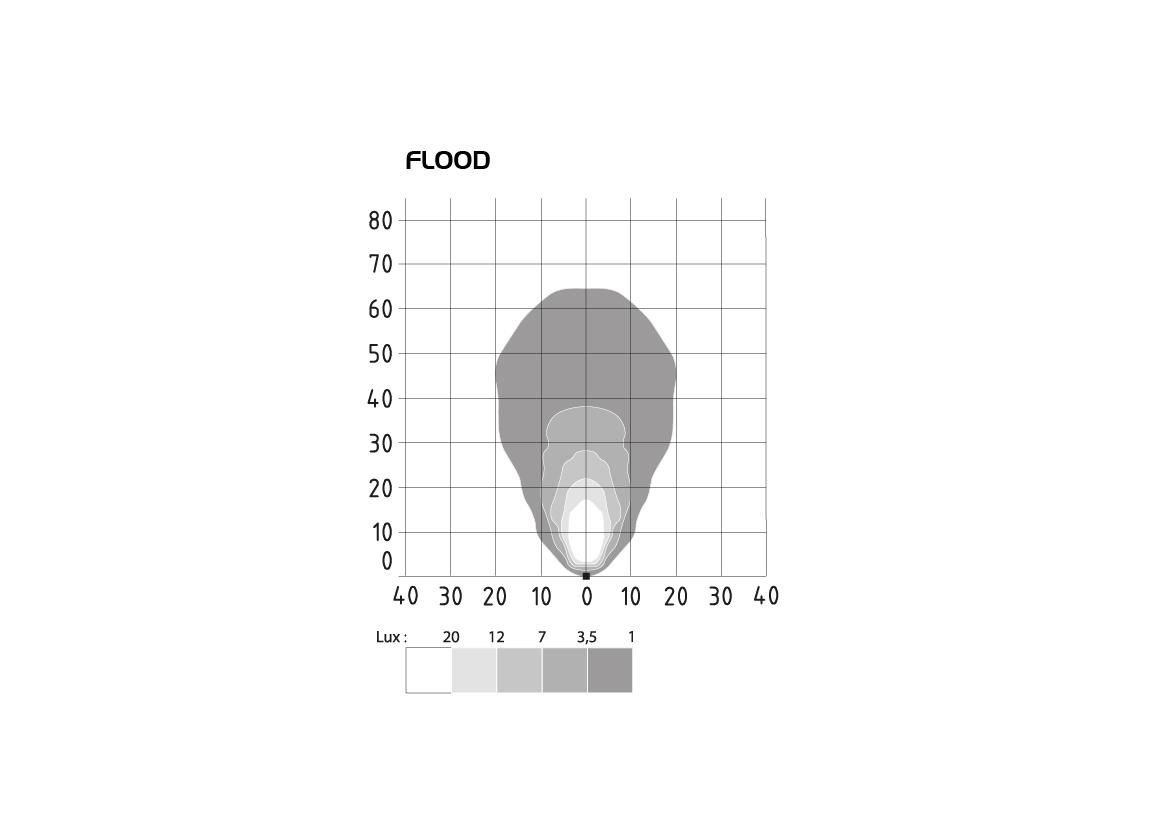

Light pattern Flood
Color Amber, red, blue, crystal
Connector AMP 2 pin, DT 2 pin
Mounting Pedestal, suspended
Lens Material Hardened glass, plastic cover lens, plastic lens
Shape Square

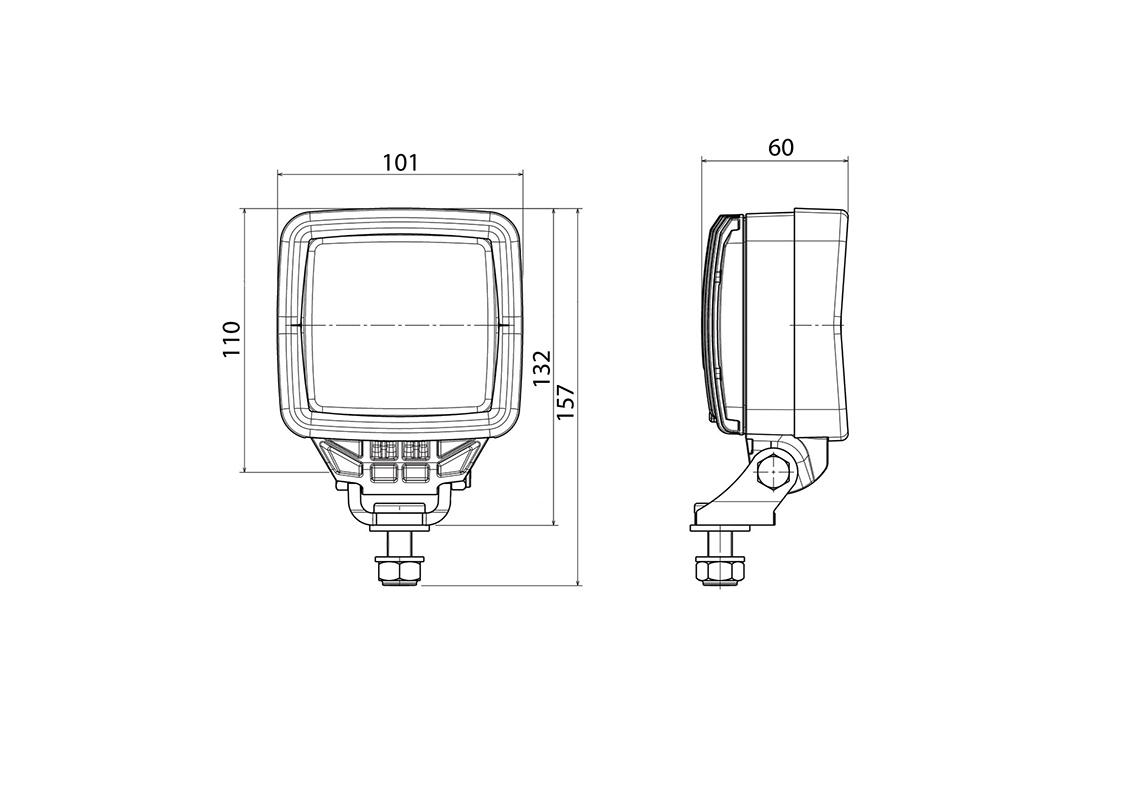

Length 102 mm
Depth 60 mm
Height 98 mm
Weight 0,7 Kg
IP protection IP68 - IP69K
Polarity No polarity
Electronic Thermal Management Full output at +35°C ambiant, 20 % dimmed at + 50°C ambiant
Operation Temperatures -40°C to +85°C
Load Dump 36V CONTINUOUS/ 58V 160ms/ 1800V 50µs
Salt Spray Test ISO 9227
Vibration Resistance 15 Grms, from 24Hz to 2000Hz
Shock resistance 60G
Warranty 30 000 operating hours or 5 years
EMC ISO 13766 - ISO 14982 - ISO 12985 - CISPR26
Industry Agriculture, Construction, Forestry, Handling and Forklifts, Mining, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab
