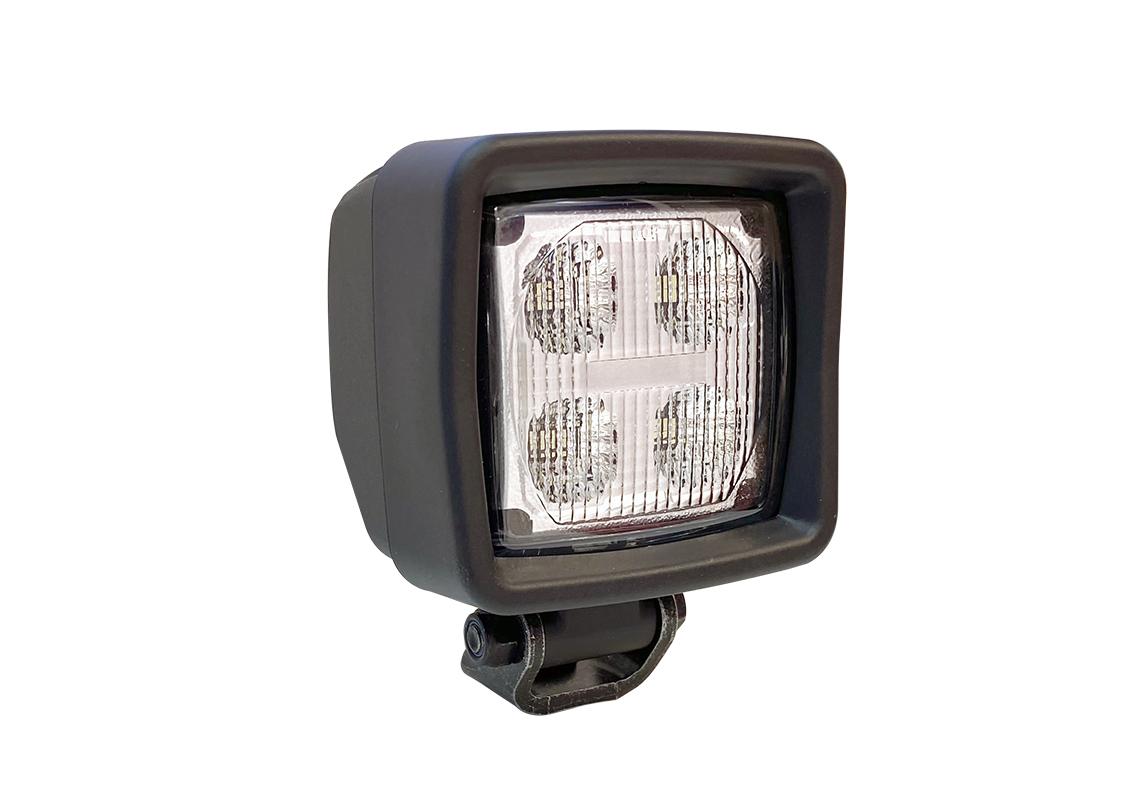

SHD 5000 LED - Work light Heavy LED Flood Asymmetrical

Ref. A0787A7624

Work light Heavy LED Flood Asymmetrical
Work light Heavy LED Flood Asymmetrical
Work light Heavy LED Flood Asymmetrical
Work light Heavy LED Flood Asymmetrical
  • Voltage : 12/24 V
  • Source : LED
  • Operational Lumen : 5000 Lumen
  • Connector : AMP 2 pin, DT 2 pin
Not all products are available in all markets.

Need some advices ? Any questions ?  We call you back !

Brand ABL
Product Type Work light Heavy LED
Voltage 12/24 V
Source LED
Operational Lumen 5000 Lumen
Color Temperature 6000 K
Light pattern Full Flood Asymmetrical, Full Flood, Full Long Range and mixed modules
Color White
Connector AMP 2 pin, DT 2 pin
Mounting Pedestal, suspended
Lens Material Hardened glass, plastic cover lens, plastic lens
Shape Square
Depth 90 mm
Height 98 mm
Weight 1,1 Kg
IP protection IP68 - IP69K
Polarity Protected against reverse voltage
Electronic Thermal Management Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant
Operation Temperatures -40°C to +85°C
Load Dump 36V CONTINUOUS / ISO 7637-2 Pulse 5a
Salt Spray Test ISO 9227
Vibration Resistance 20 Grms, from 24Hz to 2000Hz
Shock resistance 80G
Lifetime 30 000 operating hours
Warranty 30 000 operating hours or 5 years
EMC ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5
Industry Forestry, Mining
